MT1005
2-In-1 Cable Finder and DMM
R3,300.50
Features :
- Identifies up to 16 cables
- Cuts out “Bell-Out” time
- Cable Resistance 30kΩ max
- Digital multimeter
- 600V AC/DC
- 200mA AC/DC
- Resistance 20MΩ
- Diode Check
- 2000 Count LCD
- Continuity
Description

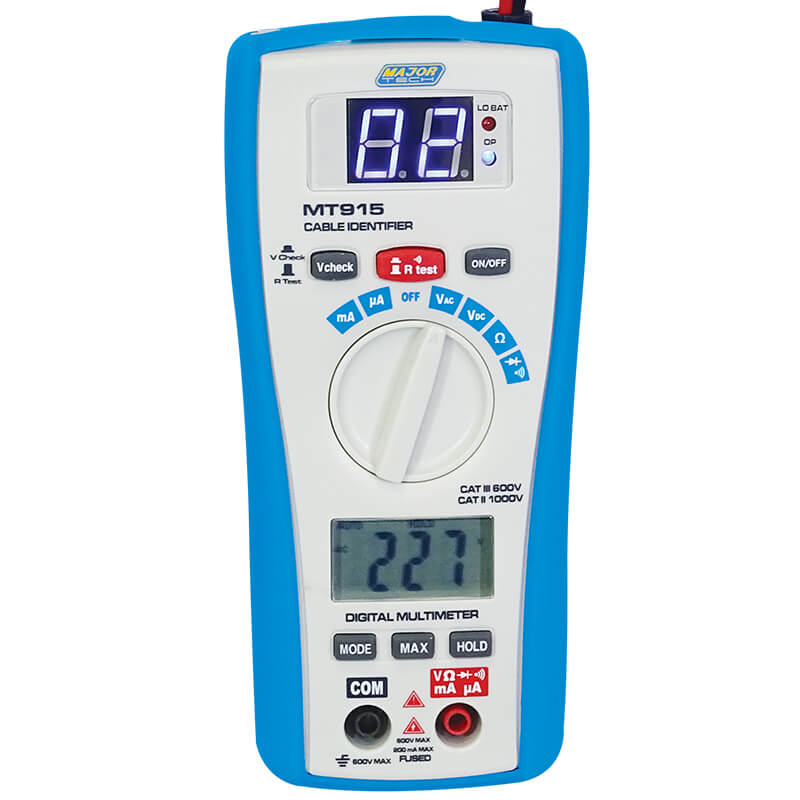

The MT915 is a 2-in-1 Cable Finder & Multimeter with an amazing tracing system which will save hours instead of Belling-Out any circuit. The MT915 consists of a transmitter & receiver device which enables one person to instantly match up ends of individual cores at either end of a multi-core cable. With the remote kit the meter can test cables installed over long distances either on wall plates or patch panels. The DMM function makes it easy to measure AC Volts, DC Volts, AC and DC Current, Resistance, Continuity and Diode Test.
Accessories:
9V Battery
AAA Batteries
Test Leads
Instruction Manual
Included:
- Transmitter
- Receiver
Additional information
| DC Voltage | 600V |
|---|---|
| DC Voltage accuracy | ±(1.0% +3) |
| DC Voltage resolution | 0.1mV |
| AC Voltage | 600V |
| AC voltage accuracy | ±(1.0% +5) |
| AC Voltage resolution | 1mV |
| DC Current | 200.0mA |
| DC Current accuracy | ±(1.5% +3) |
| DC Current resolution | 0.1µA |
| AC Current | 200.0mA |
| AC Current accuracy | ±(1.8% +8) |
| AC current resolution | 0.1µA |
| Resistance | 20MΩ |
| Resistance accuracy | ±( 1.2%+3) |
| Resistance resolution | 0.1Ω |
| Frequency | 300Khz |
| Frequency accuracy | ±(0.01% +1) |
| Frequency resolution | 0.001kHz |
| Digital Display | 2000 |
| Power source | 2 x R03 and 6LF22 |
| Over-range indication | Yes |
| Low battery indication | Yes |
| Diode Test | Yes |
| Continuity | Yes |
| Back Light | Yes |
| AC Bandwidth | 50Hz-60Hz |
| Enclosure | Rubber Holster |
| Safety Specs | IEC 61010-1 Cat III 300V |
| Weight | 308g |
| Dimensions | 162 x 74 x 43mm |
