Intrinsically Safe MT1887
R5,721.25
Features :
- Intrinsically Safe
- 40 000 count with 41 Segment Bargraph
- Measures DCV to 1500V & ACV up to 1000V
- Temperature measurement from -50⁰C to 1000⁰C
- AC & DC Micro Amps up to 10A
- 4-20mA process loop measurements with % reading
- Capacitance to 40mF
- Frequency to 100MHz
- Duty Cycle
- Relative mode
- Automatic NCV where LCD backlight turns red
- Min, Max and Data Hold
- Auto Power Off

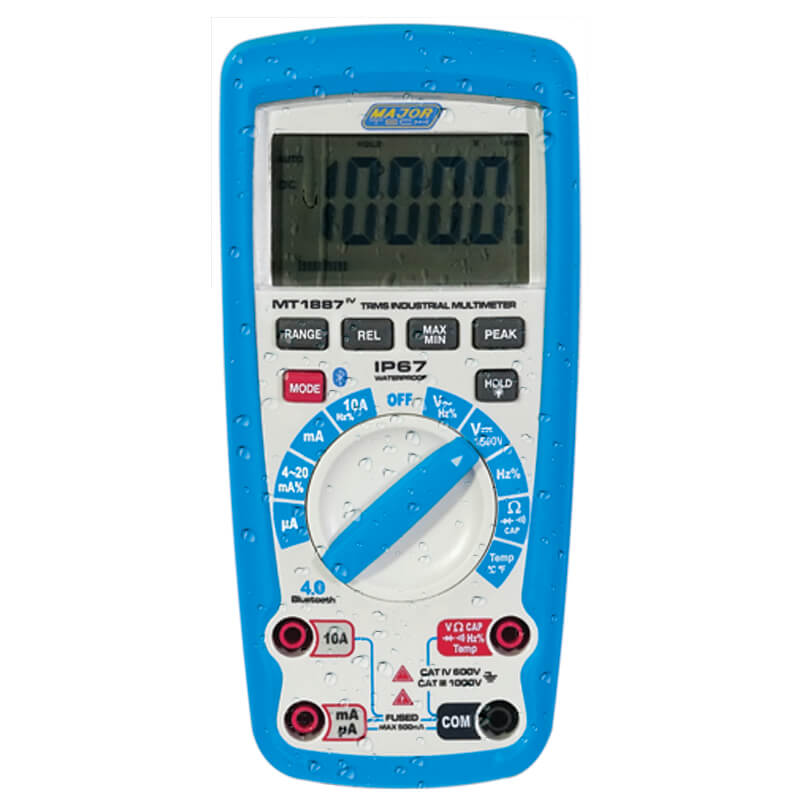

- IP67 Dust & waterproof with O-ring sealed casing
Description

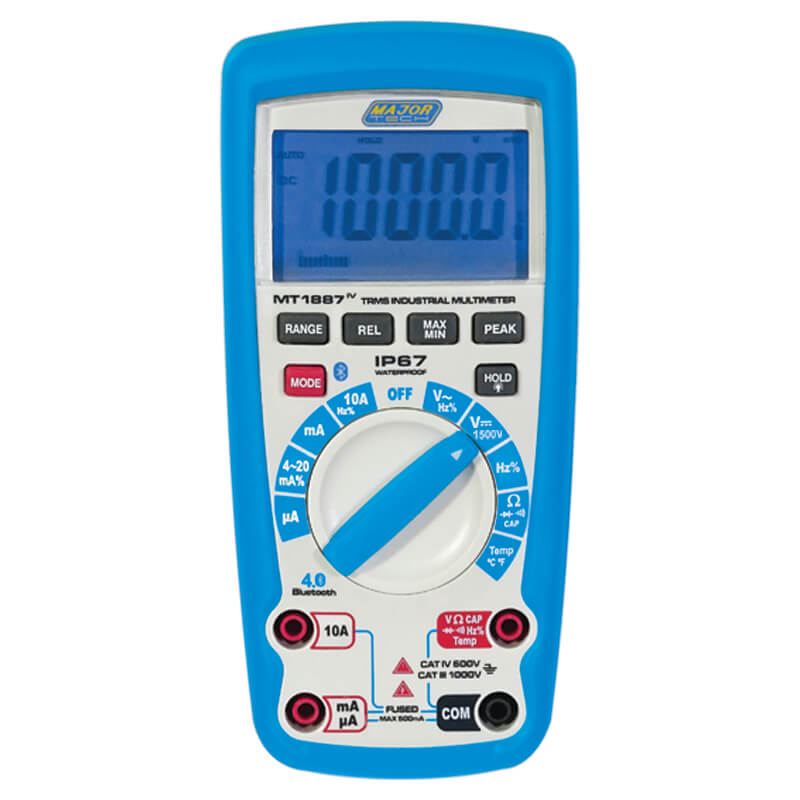

The MT1887IS is a Intrinsically Safe 1500V DC IP67 True RMS Bluetooth Multimeter that has improved measurement functions, troubleshooting feature, resolution and accuracy to solve problems on power distribution, motor drives, electromechanical equipment and plant automation with the 4-20mA% loop measurements. The meter has a large 40 000 count backlit LCD with the added advantage of a 41 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Specially designed for the Solar Industry the DC voltage range measures up to 1500V DC, other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.
Accessories:

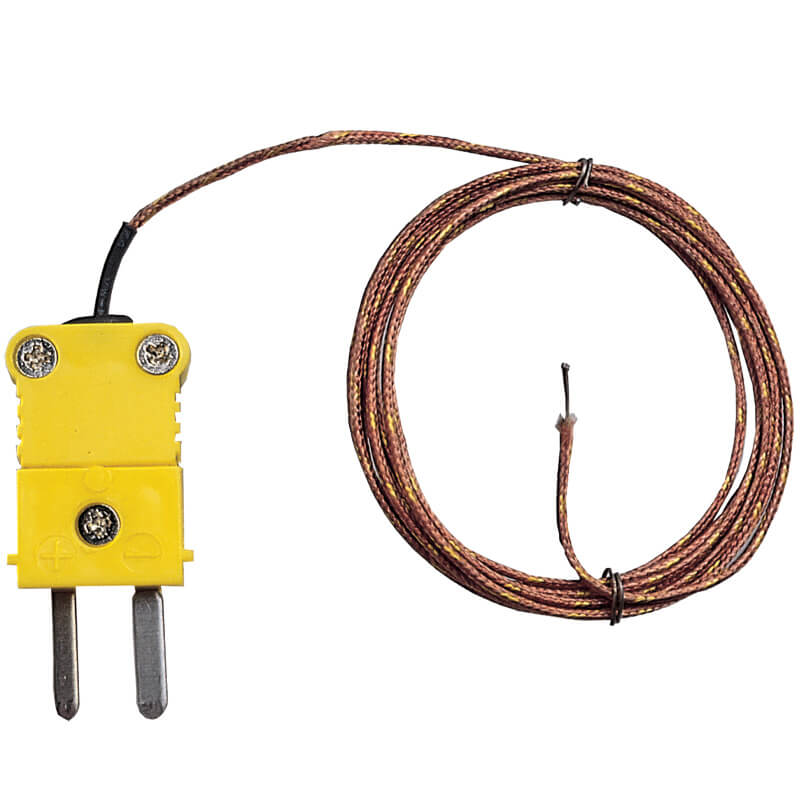

Temperature Probe

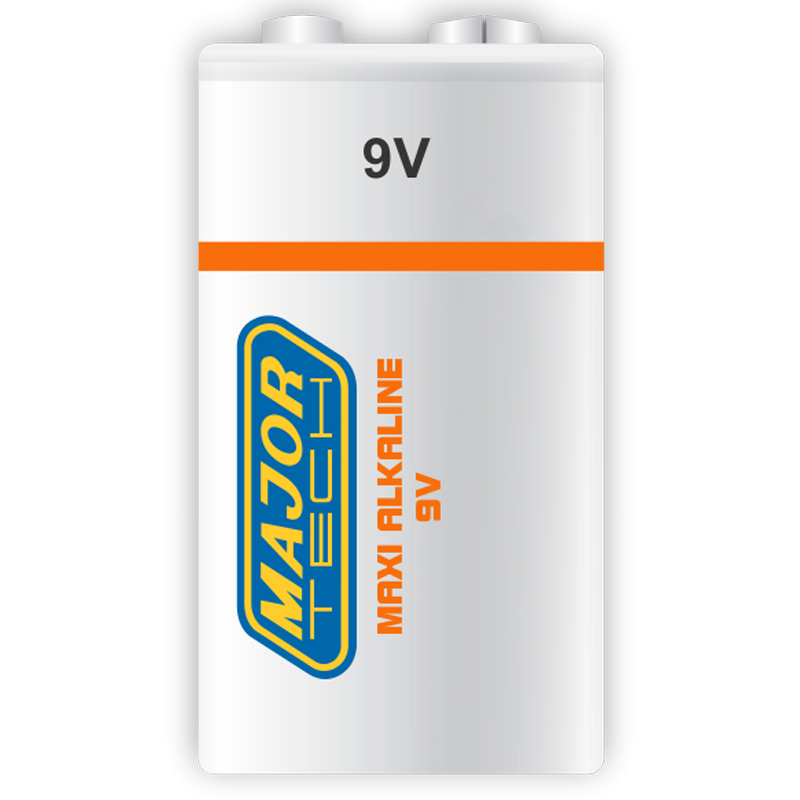

9V Battery

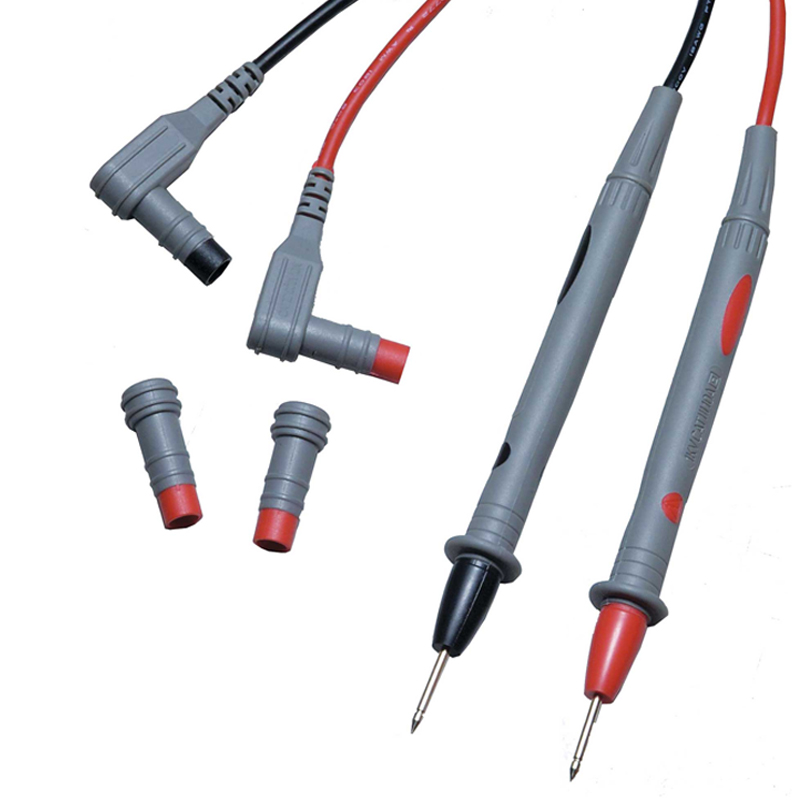

Test Leads
Instruction Manual
Additional information
DC Voltage | 1000V |
---|---|
DC Voltage accuracy | ±(0.06% +20) |
DC Voltage resolution | 0.01mV |
AC Voltage | 1000V |
AC voltage accuracy | ±(1% +2) |
AC Voltage resolution | 0.1mV |
DC Current | 10A |
DC Current accuracy | ±(0.1% +3) |
DC Current resolution | 0.01µA |
AC Current | 10A |
AC Current accuracy | ±(1.5% +3) |
AC current resolution | 0.01µA |
Resistance | 40MΩ |
Resistance resolution | 0.01Ω |
Resistance accuracy | ±(0.3% +4) |
Duty Cycle accuracy | ±(1.2% +2) |
Duty Cycle resolution | 0.01% |
Temperature | -50 to 1000°C |
Temperature accuracy | ±( 1.0%+2.5) |
Temperature resolution | 0.1°C |
Frequency | 100MHz |
Frequency accuracy | ±(0.01% +1) |
Frequency resolution | 0.001Hz |
Capacitance | 40mF |
Capacitance accuracy | ±(3.5% +10) |
Capacitance resolution | 0.001nF |
4-20mA% accuracy | ±(50) |
4-20mA% resolution | 0.01% |
Diode Test | Yes |
Input Impedance | ˃10MΩ VDC & ˃3MΩ VAC |
Non-Contact Voltage (NCV) | Yes |
True RMS Measurements | AC |
Min Max | Yes |
Over-range indication | Yes |
Peak hold | less than 1mS |
Digital Display | 40000 |
Power source | 6LF22 |
Safety Specs | IEC61010-1 CatIV 600V |
Low battery indication | Yes |
Continuity | Yes |
Enclosure | Double moulded waterproof IP67 |
AC Bandwidth | 50Hz to 1000Hz |
Bargraph | Yes |
Back Light | Yes |
Dimensions | 187 x 81 x 50mm |
Weight | 342g |
