Industrial Multimeter
R13,322.75
Features :
- True RMS AC/DC voltage and AC/DC Current measurements
- 50 000 Counts, full graphics LCD display with white backlight
- Measures resistor, diode, capacitance, frequency and duty cycle
- Trend Capture and Bluetooth Interface
- Log multiple sessions or log data continuously for over 200 hours
- Real time clock for automatic time stamping of saved readings
- Min/Max/Average with Time Stamp to record signal fluctuations
- Temperature measurement with K-type temperature probe
- Peak hold function with calibration mode /Auto Zero function
- IP67 waterproof with double moulded rubber housing
Description
The MT1007 is a 1000V AC/DC IP67 True RMS Multimeter that accurately measures AC/DC voltage and current on complex signals or non-linear loads providing fast A/D converting sample time. This meter gives you 50 000 count resolution with full graphics LCD display with built-in data logging and Trend Capture features. The MT1007 has an Auto Zero and Peak Hold function with calibration mode and measures resistance, continuity, diode, frequency, duty cycle, min/max and average recordings with Time Stamp function to record signal fluctuations.
The MT1007 1000V AC/DC IP67 True RMS Multimeter can trace any interrupted problems of equipment without supervision. This meter plots measurements as a single line to help detect signal anomalies over time and can store up to 10 000 recorded events. The MT1007 can log multiple sessions or log data continuously for over 200 hours, enabling the user to save and name the measurements so it can be recalled at any time.
Accessories:

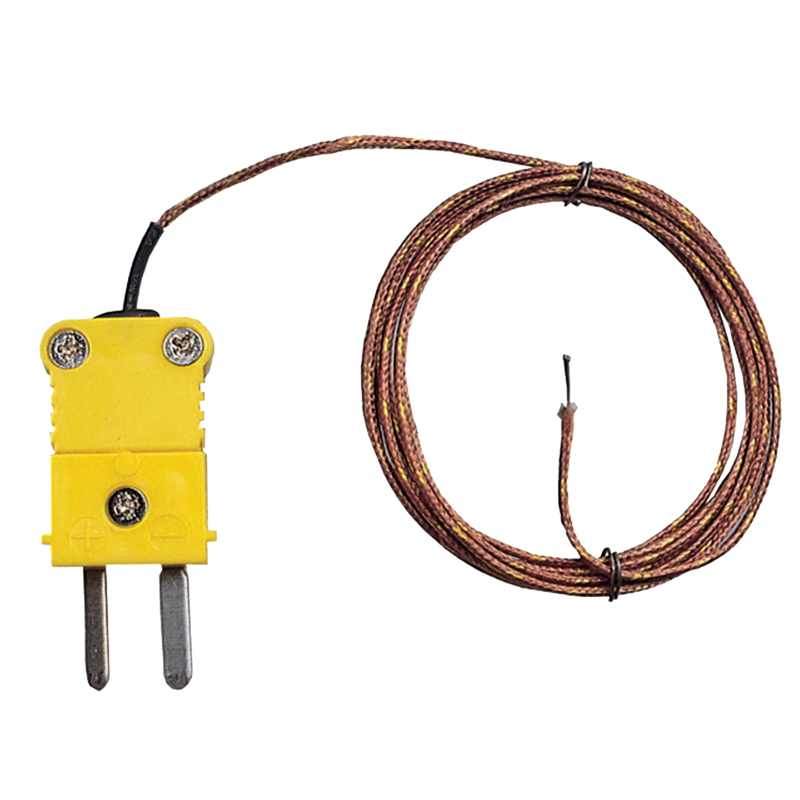

Temperature Probe
Battery Pack
Test Leads
Instruction Manual
Charger
Software
USB Cable
Additional information
DC Voltage | 1000V |
---|---|
DC Voltage resolution | 1mV |
DC Voltage accuracy | ±(0.05% +20) |
AC Voltage | 1000V |
AC Voltage resolution | 1mV |
AC voltage accuracy | ±(0.3% +25) |
AC + DC TRMS voltage | 1000V |
AC + DC voltage resolution | 0.001mV |
AC + DC voltage accuracy | ±(1.0% +25) |
DC Current | 10A |
DC Current resolution | 0.01µA |
DC Current accuracy | ±(0.1% +20) |
AC Current | 10A |
AC current resolution | 0.01µA |
AC Current accuracy | ±(0.6% + 25) |
AC + DC Current | 10A |
AC + DC Current resolution | 0.01µA |
AC + DC Current accuracy | ±(1.0% + 25) |
Duty Cycle | 0.1 to 99.9% |
Duty Cycle resolution | 0.01% |
Duty Cycle accuracy | ±(1.2% +2) |
Resistance | 50MΩ |
Resistance resolution | 0.001Ω |
Resistance accuracy | ±(0.5% +20) |
Frequency | 10MHz |
Frequency resolution | 0.001Hz |
Frequency accuracy | ±(0.01% +10) |
Capacitance | 10mF |
Capacitance resolution | 0.001nF |
Capacitance accuracy | ±(2.0% +40) |
Temperature | -50 to 1000°C |
Temperature resolution | 0.1°C |
Temperature accuracy | ±( 1.0%+2.5) |
Continuity | Yes |
Diode Test | Yes |
True RMS Measurements | AC |
AC Bandwidth | 50Hz to 100KHz |
Digital Display | 50 000 |
Bargraph | Yes |
Bluetooth | Yes |
PC interface | Yes |
Records events and Trends | Yes |
Data logging | Yes |
Over-range indication | Yes |
Input Impedance | ˃10MΩ VDC & ˃9MΩ VAC |
Low Pass filter | Yes |
Min Max | Yes |
Peak hold | 250µs |
Back Light | Yes |
Enclosure | Double moulded waterproof IP67 |
Low battery indication | Yes |
Power source | 7.4V rechargable |
Dimensions | 220 x 96 x 60mm |
Weight | 631g |
