MT876
Digital Multimeter
R1,098.25
Features :
- Large 6000 count LCD display
- Measures AC and DC voltage up to 600V
- Measures AC and DC current up to 10A
- Capacitance and Frequency Measurements
- Temperature measurement from -20°C to 1000°C
- NCV – Non-Contact Voltage Detector
- Continuity Buzzer & Diode Test
- Min, Max and Data Hold Function
- Relative Mode
- Auto Power Off
- Auto back light
Description

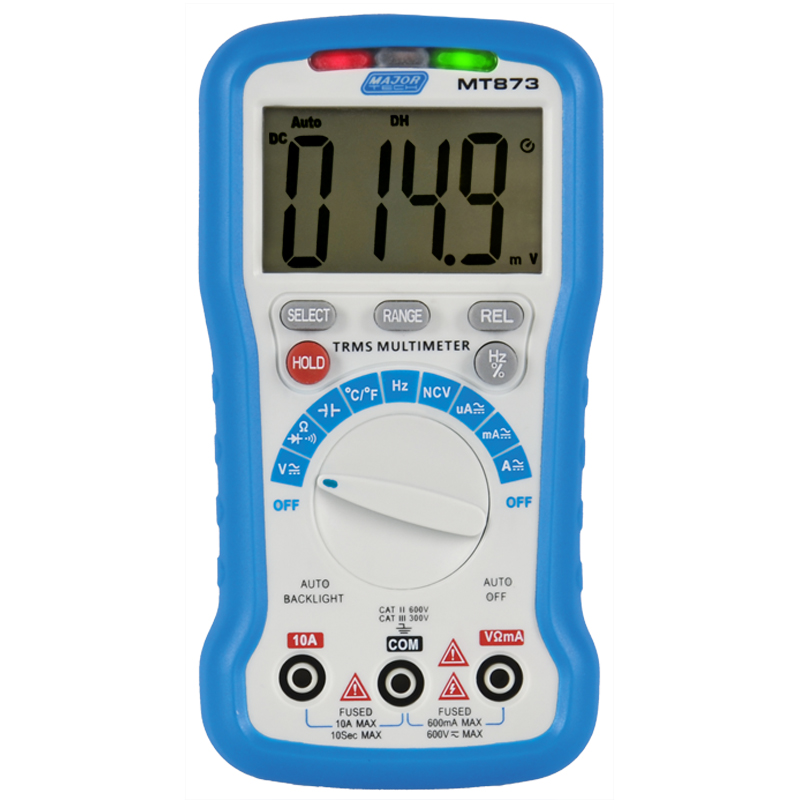

The MT873 is a 600V AC/DC True RMS Multimeter and can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Non-Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features a data hold & relative mode functions. This multimeter is a slim sized, portable, robust drop proof digital multimeter has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centered on large-scale IC A/D converters in conjunction with an over-load protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.
Accessories:
- Instruction Manual

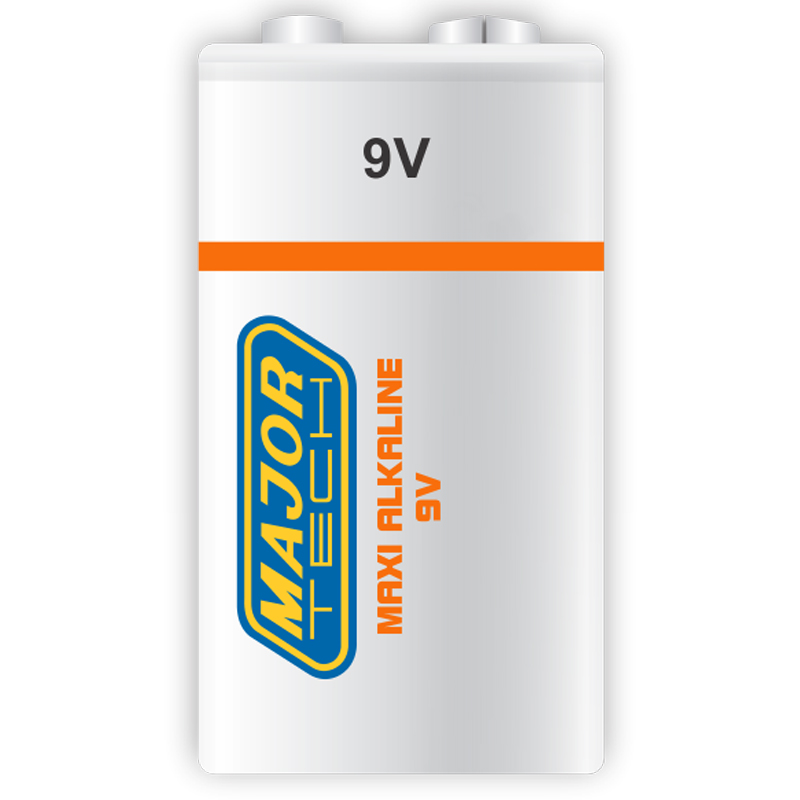

- 1 x 9V Batteries

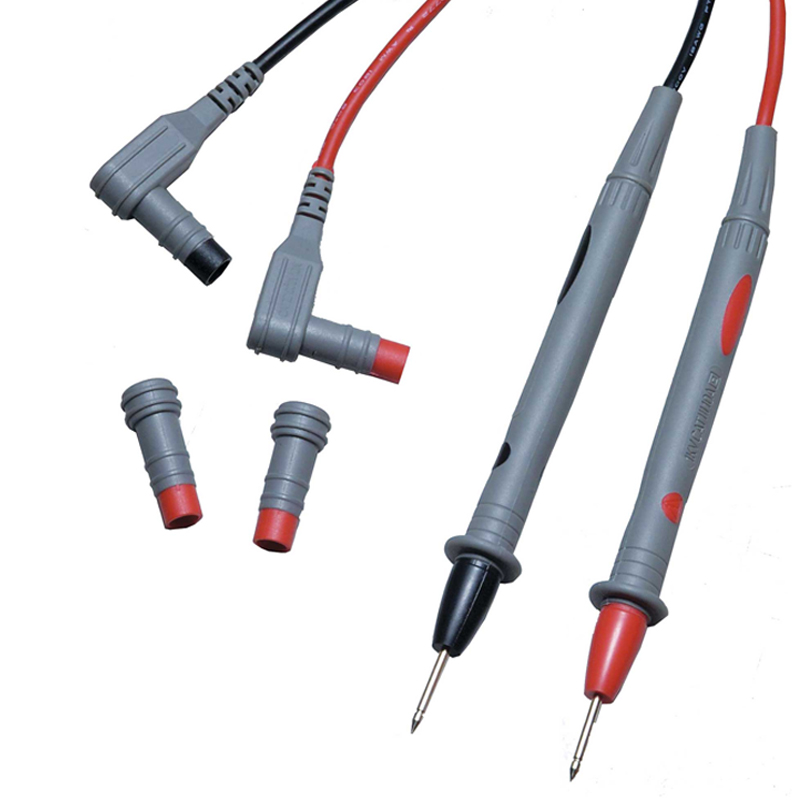

- Test Leads”K” Type
- Thermocouple Sensor Probe
Additional information
| DC Voltage | 600V |
|---|---|
| DC Voltage resolution | 0.1mV |
| DC Voltage accuracy | ±(0.5% +2) |
| AC Voltage | 600V |
| AC Voltage resolution | 1mV |
| AC voltage accuracy | ±(1.0% +3) |
| DC Current | 10A |
| DC Current resolution | 0.1µA |
| DC Current accuracy | ±(1.2%+2) |
| AC Current | 10A |
| AC current resolution | 0.1µA |
| AC Current accuracy | ±(1.2%+2) |
| Duty Cycle | 0.1 to 99.9% |
| Duty Cycle resolution | 0.10% |
| Duty Cycle accuracy | ±(2%+2) |
| Resistance | 60MΩ |
| Resistance resolution | 0.1Ω |
| Resistance accuracy | ±(1.0% +2) |
| Frequency | 9.999Hz to 9.999MHz |
| Frequency resolution | 0.001Hz |
| Frequency accuracy | ±(0.1%+5) |
| Capacitance | 99.99mF |
| Capacitance resolution | 1pF |
| Capacitance accuracy | ±(3% +10) |
| Temperature | -20 to 1000°C |
| Temperature resolution | 1°C |
| Temperature accuracy | ±(3% +1) |
| Continuity | Yes |
| Diode Test | Yes |
| True RMS Measurements | Yes |
| AC Bandwidth | 40Hz to 400Hz |
| Digital Display | 6000 |
| Non-Contact Voltage (NCV) | Yes |
| Over-range indication | Yes |
| Input Impedance | 10MΩ VDC & 10MΩ VAC |
| Data Hold | Yes |
| Back Light | Yes |
| Low battery indication | Yes |
| Enclosure | Rubber Holster |
| Power Supply | 9V (6F22) Battery |
| Weight | 250g (incl. battery) |
| Dimensions | 150 x 100 x 36mm |
