MT777
-19%
600A AC/DC IR Thermometer Clamp Meter
Original price was: R4,209.00.R3,444.25Current price is: R3,444.25.
Features:
- 6000 count negative LCD display
- Ø33mm Cable Clamp size
- 600A AC/DC
- 1000V AC/DC
- Capacitance to 100mF
- Resistance 60Mꭥ
- Frequency 10kHz
- K- Type Temperature -20⁰C to 1000⁰C
- IR Temperature -30⁰C to 350⁰C
- Spot Ratio 4:1
- VFD – Variable Frequency Drive voltage value
- NCV – Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Max, Min and Data Hold function
- Auto Power Off
Description
The MT766 is a 600A AC/DC IR Thermometer Clamp Meter. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30⁰C to 350⁰C, plus there is a K-Type thermometer input for measurements up to 1000⁰C. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas.
This 600A AC/DC IR Thermometer Clamp Meter is housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
Accessories:
- Carrying Case

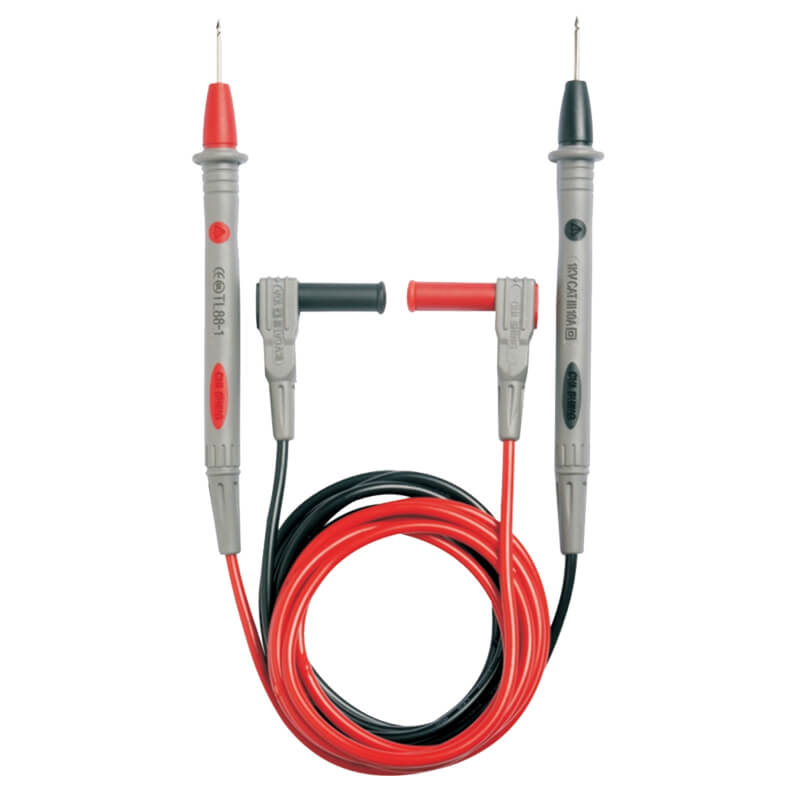

- ComfiGrip Test Leads

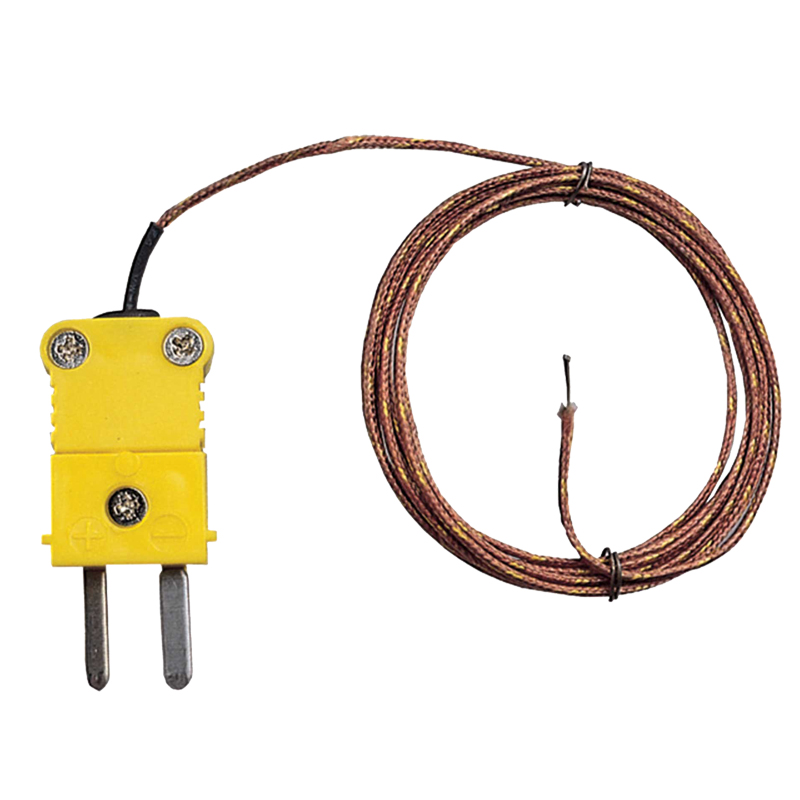

- K-type Probe

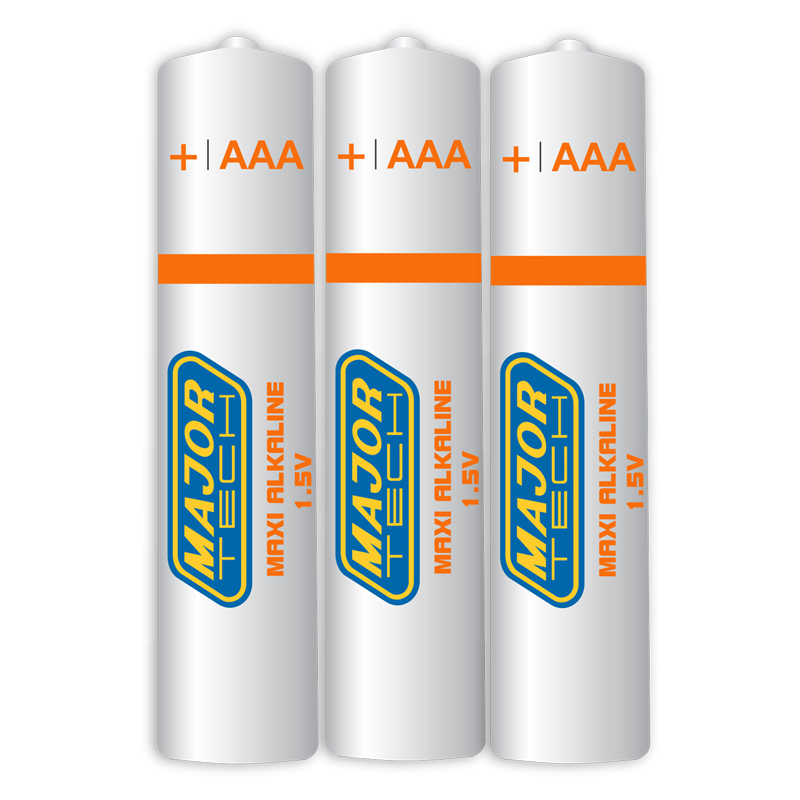

- 3 x AAA Batteries
- Instruction Manual
Additional information
| DC Current | 60.00A – 600.0A |
|---|---|
| DC Current Resolution | 10mA |
| DC Current Accuracy | ± (2.8% + 8 Digits) |
| AC Current | 60.00A – 600.0A |
| AC Current Resolution | 10mA |
| AC Current Accuracy | ± (1.5% + 10 Digits) |
| DC Voltage | 600.0mV – 1000V |
| DC Voltage Resolution | 1mV |
| DC Voltage Accuracy | ± (1.2% + 5 Digits) |
| AC Voltage | 6.000V – 1000V |
| AC Voltage Resolution | 1mV |
| AC Voltage Accuracy | ± (1.5% + 5 Digits) |
| Resistance | 600.0Ω – 60.00MΩ |
| Resistance Resolution | 0.1Ω |
| Resistance Accuracy | ± (1.5% + 6 Digits) |
| Frequency | 5Hz – 9.999kHz |
| Frequency Resolution | 1mHz |
| Frequency Accuracy | ± (1.5% + 6 Digits) |
| Capacitance | 999.9nF – 99.99mF |
| Capacitance Resolution | 0.1nF |
| Capacitance Accuracy | ± (4% + 6 Digits) |
| Temperature K-Type | -20 to 1000°C |
| Temperature K-Type Resolution | 0.1°C |
| Temperature K-Type Accuracy | ± (3°C + 3 Digits) |
| IR Temperature D:S 4:1 | -30.0 to 350.0°C |
| IR Temperature D:S 4:1 Resolution | 0.1°C |
| IR Temperature D:S 4:1 Accuracy | ± (2°C + 2 Digits) |
| Duty Cycle | 20.0% to 80.0% |
| Duty Cycle Resolution | 0,1% |
| Duty Cycle Accuracy | ± (1.2% + 5 Digits) |
| True RMS Measurements | ACV, ACA |
| AC Bandwidth | 50 – 1000Hz |
| Digital Display | 6000 |
| Bargraph | Yes |
| Non-Contact Voltage (NCV) | Yes |
| Overrange indication | Yes |
| Continuity | Yes |
| Diode test | Yes |
| Jaw size | 33mm |
| Input impedance | >10MΩ DCV & >10MΩ VAC |
| Min Max | Yes |
| Data Hold | Yes |
| Back Light | Yes |
| Enclosure | Double injection moulding |
| Low battery indication | Yes |
| Power source | 3 x LR03 |
| Weight | 350g |
| Dimensions | 239 x 66 x 44mm |
| Safety Specs | IEC61010-1 CatIV 600V |
