MT767
400A AC/DC True RMS Clamp Meter
R3,162.50
Features :
- 4000 count backlit LCD display
- Ø30mm Cable Clamp size
- Measurement of DC voltage and AC voltage up to 1000V
- Capacitance to 100mF
- Temperature measurement from -20⁰C to 1000⁰C
- INRUSH Current Measurements
- VFD – Variable Frequency Drive voltage value
- NCV – Non-Contact Voltage Detector

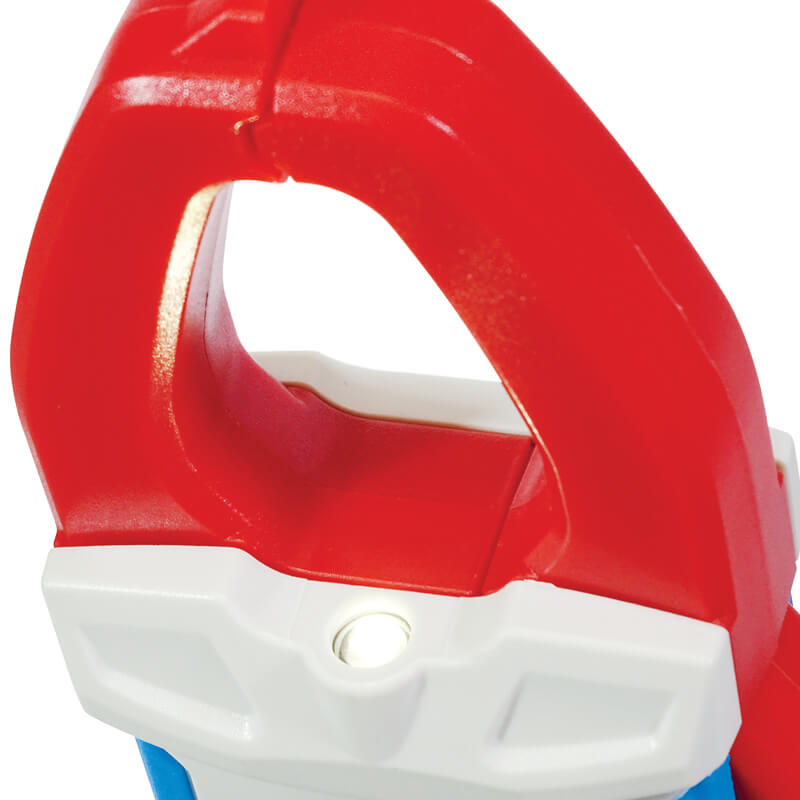

- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Off
Description

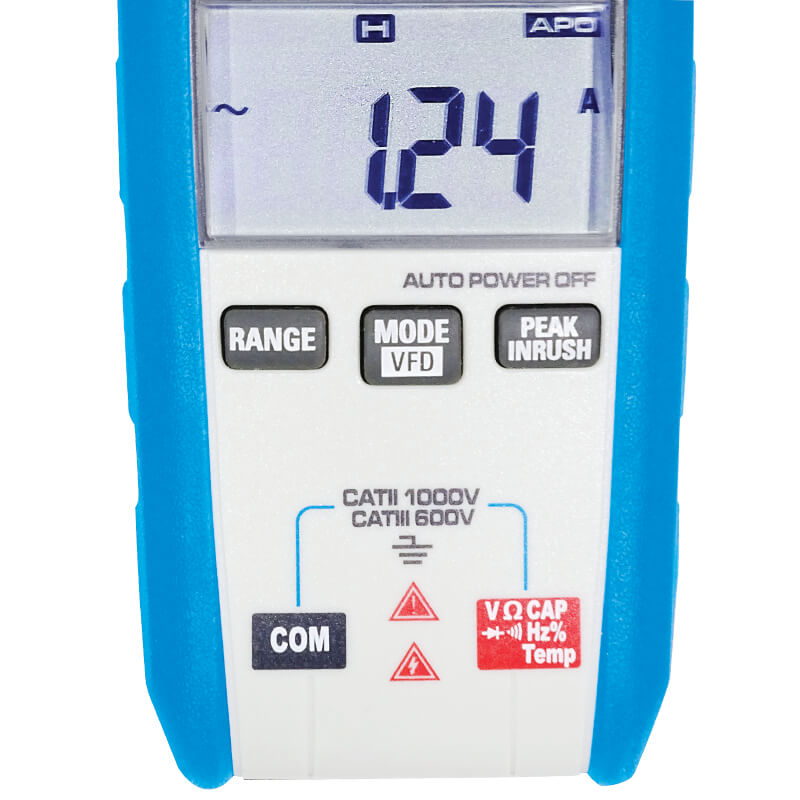

The MT723 is a 400A AC/DC True RMS Clamp Meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Accessories:

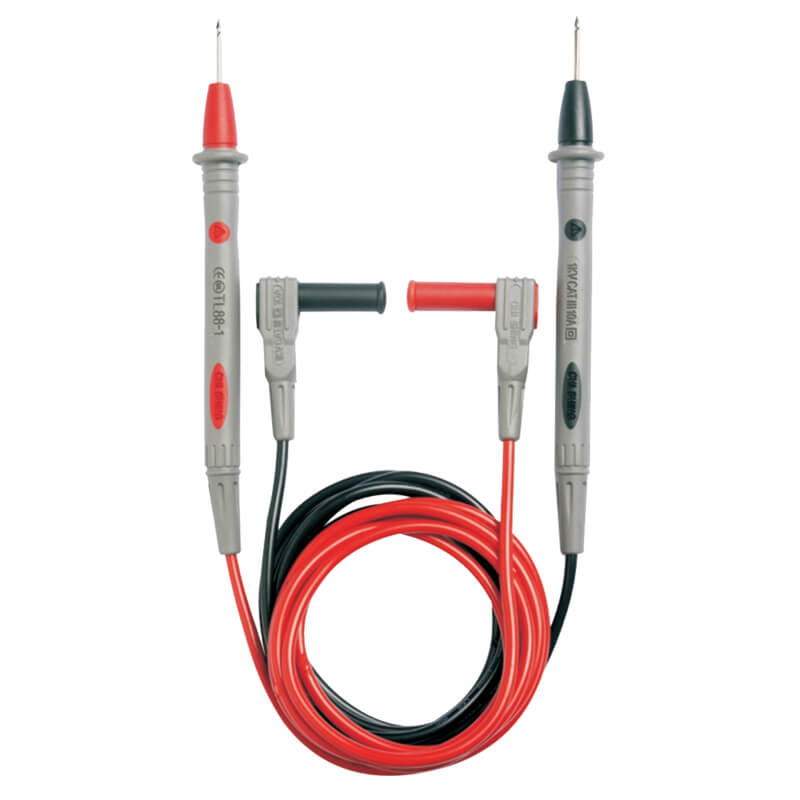

Test Leads

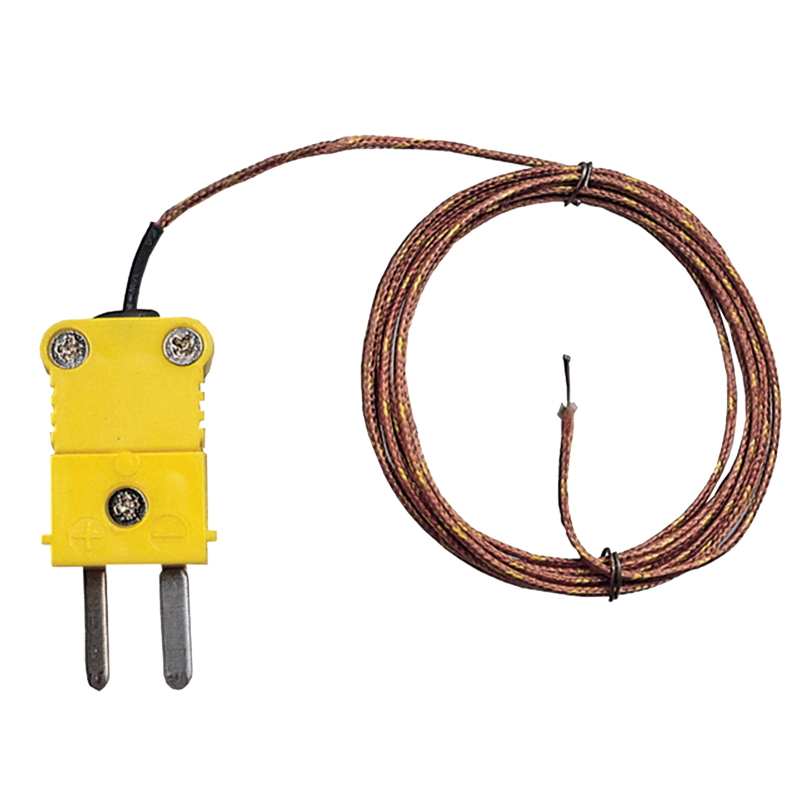

Type-K Wire Probe

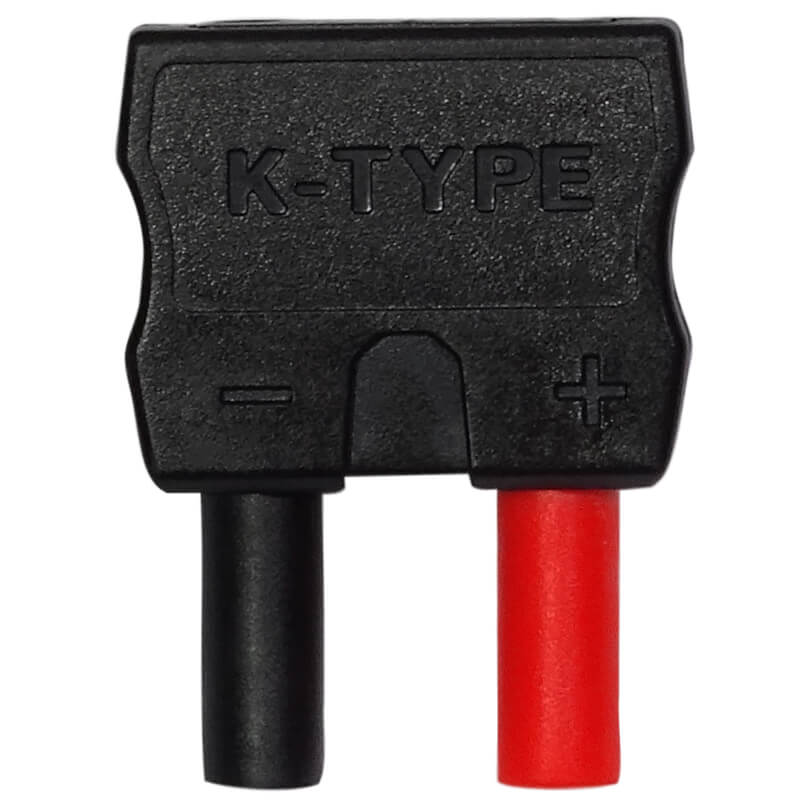

Type-K Adaptor

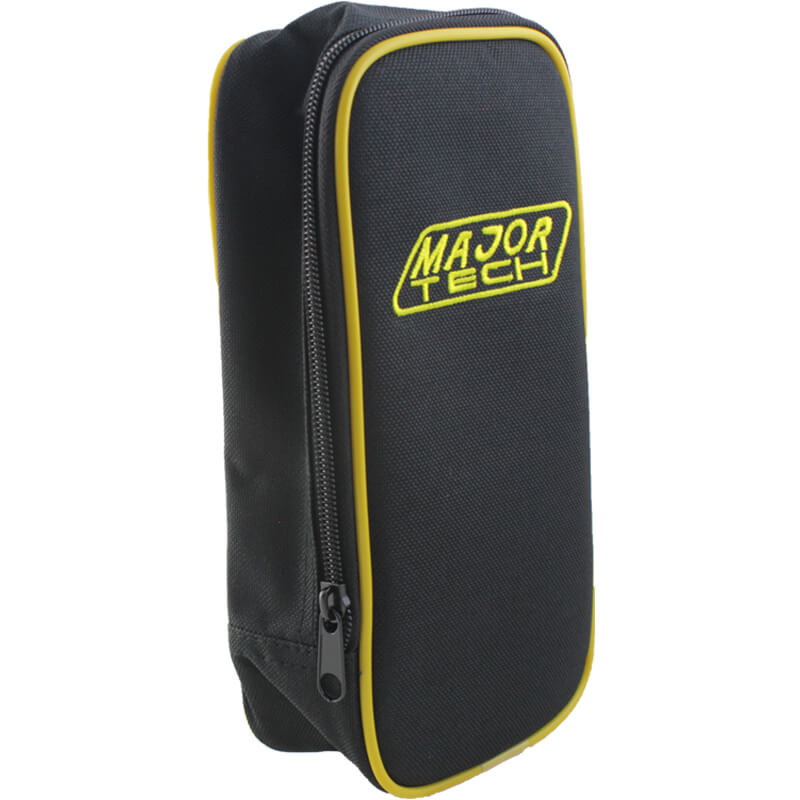

Carrying Case

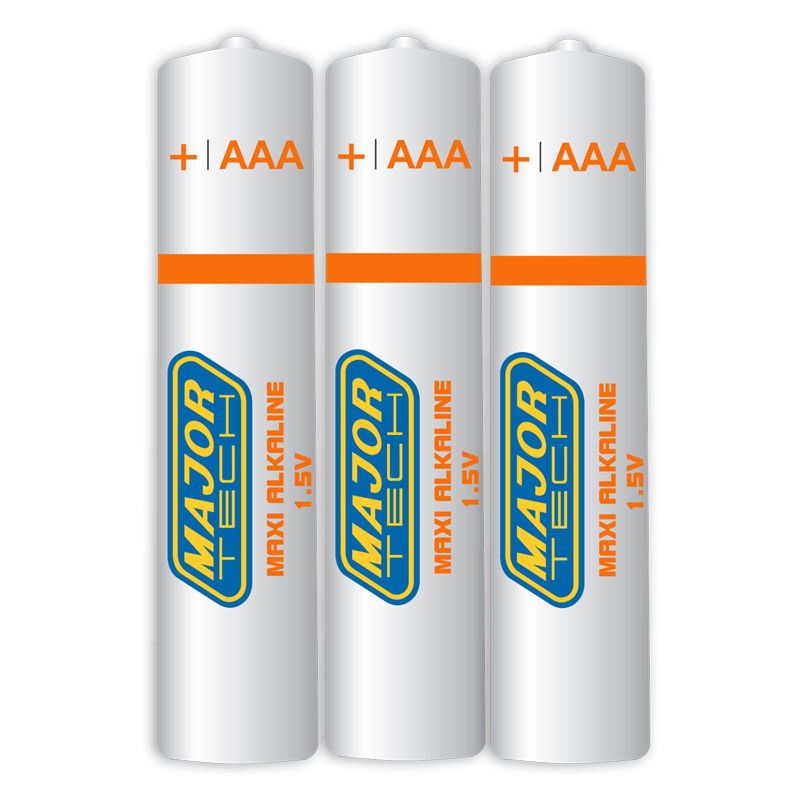

3 x AAA Batteries
Instruction Manual
Additional information
| DC Current | 40.00A – 400.0A |
|---|---|
| DC Current resolution | 0.01A |
| DC Current accuracy | ±(2.5% +8) |
| AC Current | 40.00A – 400.0A |
| AC current resolution | 0.01A |
| AC Current accuracy | ±(2.5% + 5 Digits) |
| DC Voltage | 400mV – 600.0V |
| DC Voltage resolution | 0.1mV |
| DC Voltage accuracy | ±(0.8% + 2 Digits) |
| AC Voltage | 400mV – 600.0V |
| AC Voltage resolution | 0.1mV |
| AC voltage accuracy | ±(1.0% + 30 Digits) |
| Resistance | 400.0Ω – 40.00MΩ |
| Resistance resolution | 0.1Ω |
| Resistance accuracy | ±(1.0% + 4 Digits) |
| Frequency | 10Hz – 10kHz |
| Frequency resolution | 1Hz |
| Frequency accuracy | ±(1.5% + 2 Digits) |
| Capacitance | 40.00nF – 100.0μF |
| Capacitance resolution | 0.01nF |
| Capacitance accuracy | ±(4.0% + 20 Digits) |
| Temperature | -20 to 760°C |
| Temperature resolution | 0.1°C |
| Temperature accuracy | ±(3% + 5°C Digits) |
| Duty Cycle | 0.5% – 99.9% |
| Duty Cycle resolution | 0.001 |
| Duty Cycle accuracy | ±(1.2% + 2 Digits) |
| AC Bandwidth | 50.0Hz to 60.0Hz |
| Digital Display | 4000 |
| Over-range indication | Yes |
| Continuity | Yes |
| Diode Test | Yes |
| Jaw size | 30mm |
| Input Impedance | ˃10MΩ DCV & ˃10MΩ VAC |
| Peak hold | Yes |
| Data Hold | Yes |
| Back Light | Yes |
| Enclosure | Double Injection moulding |
| Low battery indication | Yes |
| Power source | 3x AAA |
| Weight | 183g |
| Dimensions | 197 x 70 x 40mm |
| Safety Specs | IEC61010-1 CatIII 600V |
