12kV High Voltage Digital Insulation Tester
R123,050.00
Features :
- Insulation Resistance (IR) & Leak Current with a wide range of measurement from 500V-1000V-2500V-5000V-10000V-12000V
- Insulation resistance up to 35TΩ
- Variable test voltage of 5V to 100V steps
- Voltage & elapsed time are displayed
- Polarization Index (PI)
- Dielectric Absorption Ratio (DAR)
- Step Voltage (SV)
- Dielectric Discharge Index (DD)
- Capacitance measurement
- Auto discharge function and voltage output warning function
- Internal Memory– max 40,000 data
- Built-in Print Screen Function enables to record display screen, records 32 screens max
- Downloading to PC – using the USB cord and the PC software included as standard accessories, the memory data or the measuring data can be transmitted to a PC at real time
- Mains and battery powered – internal battery can be charged during normal operation
- Robust design for field use with weatherproof protection in IP64 Casing with lid closed
- Large back lit LCD graphic display with bargraph
- CAT IV 600V and CAT III 1000V

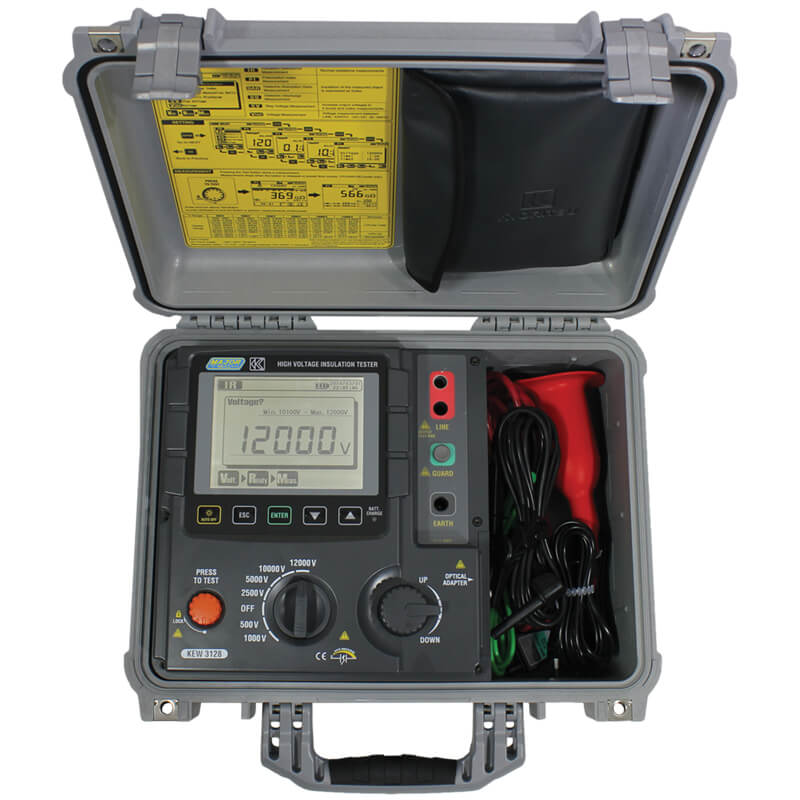

The K3128 is a Digital High Voltage Insulation Tester with 6 ranges, 500, 1000, 2500, 5000, 10000 and 12000V with a fine adjustment setting (5V to 100V steps) with an insulation resistance up to 35TΩ. The microprocessor controlled K3128 is ideal for analyzing the insulation characteristics of cables, transformers, motors, generators, high pressure switches, insulators and large wiring installations. It is housed in robust IP64 (lid closed) case, ideal for extend field usage, powered by rechargeable batteries and an AC input which can be operated while under charge. After a completion of an insulation test, the K3128 automatic discharge and display the test voltage. Data storage of test is available in 3 types of data: logging Data (REC File), Measured Data (Save File), and Print Screen (BMP File), this captures and saves the screen images.
Major Tech’s range of insulation testers are ideal for mining, industry and electricians applications.

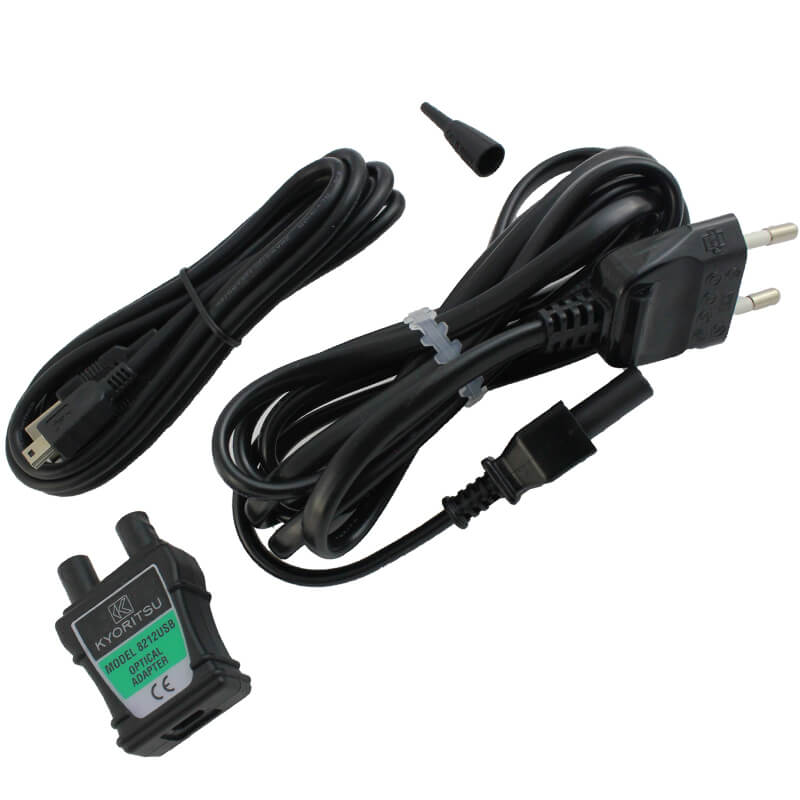

Accessories:
Carrying Case
12V Lead-Acid Battery

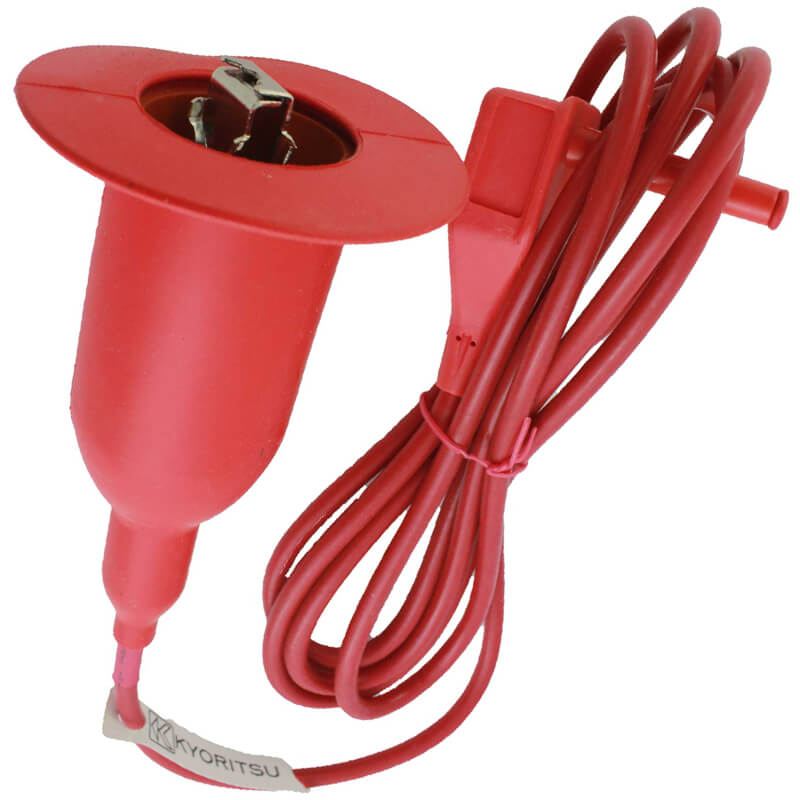

Test Leads
Instruction manual
Charger
Software
USB Cable
COC
Additional information
| Insulation resistance 500V | 500V |
|---|---|
| Insulation resolution 500V | 500GΩ |
| Insulation accuracy 500V | ±(5.0% +3) |
| Insulation resistance 1000V | 1000V |
| Insulation resolution 1000V | 1TΩ |
| Insulation accuracy 1000V | ±(5.0% +3) |
| Insulation resistance 2500V | 2500V |
| Insulation resolution 2500V | 2.5TΩ |
| Insulation accuracy 2500V | ±(5.0% +3) |
| Insulation resistance 5000V | 5000V |
| Insulation resolution 5000V | 5TΩ |
| Insulation accuracy 5000V | ±(5.0% +3) |
| Insulation accuracy 10000V | ±(5.0% +3) |
| Insulation accuracy 12000V | ±(20.0%) |
| Short Circuit Current | 5mA |
| Capacitance measurement | 5.0nF – 50.0µF |
| Polarization index | 0.00 – 999 |
| Dielectric absorption ratio | 0.00 – 999 |
| Dielectric discharge | 0.00 – 999 |
| Step voltage | Yes |
| DC Voltage | 600V |
| DC Voltage resolution | 1V |
| DC Voltage accuracy | ±(2.0% +3) |
| AC Voltage | 600V |
| AC Voltage resolution | 1V |
| AC voltage accuracy | ±(2.0% +3) |
| Frequency | 40 to 60Hz |
| Frequency resolution | 0.1Hz |
| Frequency accuracy | ±(0.2%) |
| Auto discharge | Yes |
| AC Bandwidth | 50.0Hz to 60.0Hz |
| Digital Display | 320 x 240 dots Large Graphical Display |
| Bargraph | Yes |
| PC interface | USB interface |
| Records events and Trends | Yes |
| Screen print | Yes |
| Over-range indication | Yes |
| Back Light | Yes |
| Enclosure | Robust moulded case IP64 |
| Low battery indication | Yes |
| Power source | 230V/ 12V LEAD Acid Rechargable Battery |
| Dimensions | 330 x 410 x 180mm |
| Weight | 9kg |
