5kV High Voltage Digital Insulation Tester
R60,662.50
Features :
- Insulation Resistance up to 10TΩ
- Short-Circuit Current up to 5mA
- Wide Test Voltage from 250V to 5000V
- Diagnostic Insulation Tests: IR, PI, DAR, DD, SV, RAMP.
- Wireless communication by Bluetooth for transferring and showing real-time data to PC and Android device.
- Memory and Logging functions.
- Filter function reduces noise interference.
- Robust design for field use with IP65 (lid closed).
- Powered by rechargeable battery.
Description

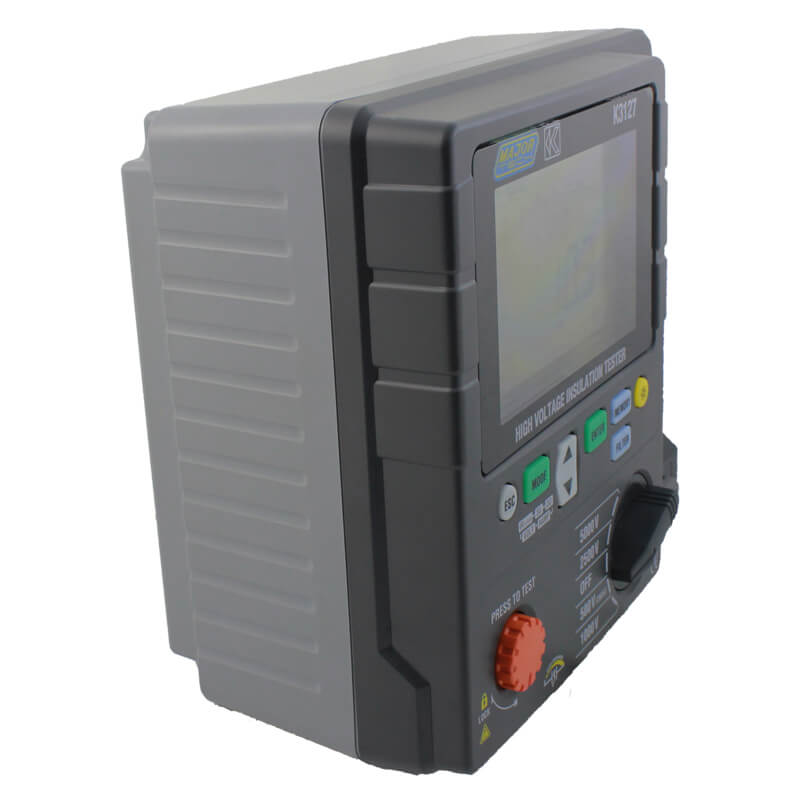

The K3127 is a 5kV High Voltage Digital Insulation Tester that is microprocessor controlled and is capable of performing tests from 250V up to 5000V, and will automatically discharge the circuit after the test has been completed. The meter is a battery powered instrument and operates on a simple and clear basis. Other features include Insulation Resistance 10TΩ, Short-Circuit Current 5mA, IR, PI, DAR, DD, SV, RAMP. The K3127 has the capabilities of being a diagnostic tool and is intended for testing insulation on Rotating Machines, Transformers, Cables, High Voltage Generators, Electrical Circuits and Surge Arresters. These readings are displayed on the large LCD display with a bargraph together with the actual output voltage thus making it easy for the user to read the results. Once the meter test is completed it will automatically discharge the apparatus under test and indicate the discharge voltage on the display while the meter is still on.
Dimensions: 208 x 225 x 130mm
Weight: 8kg
Accessories:

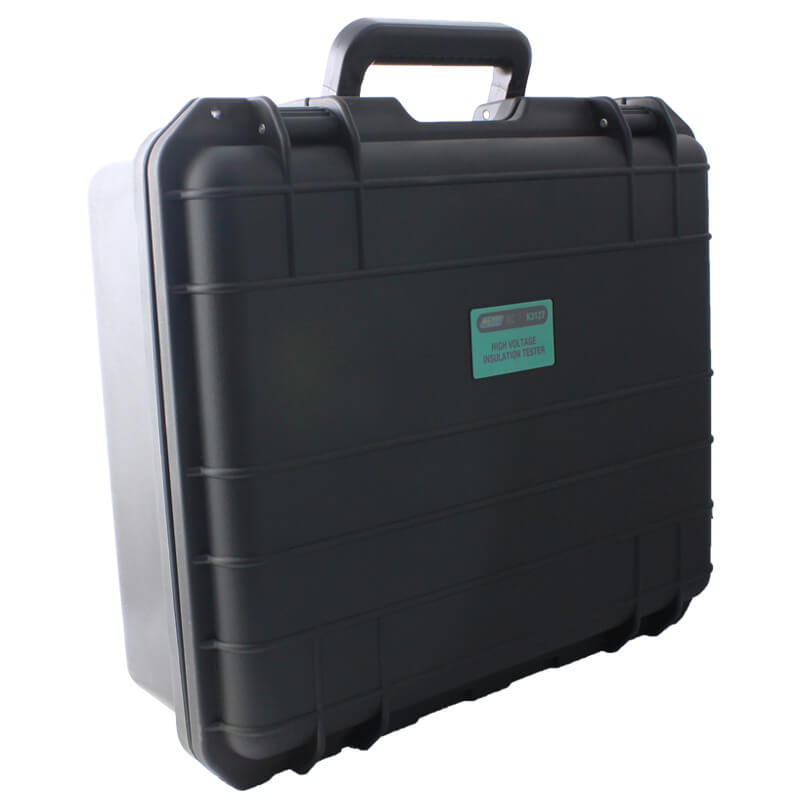

Carrying Case

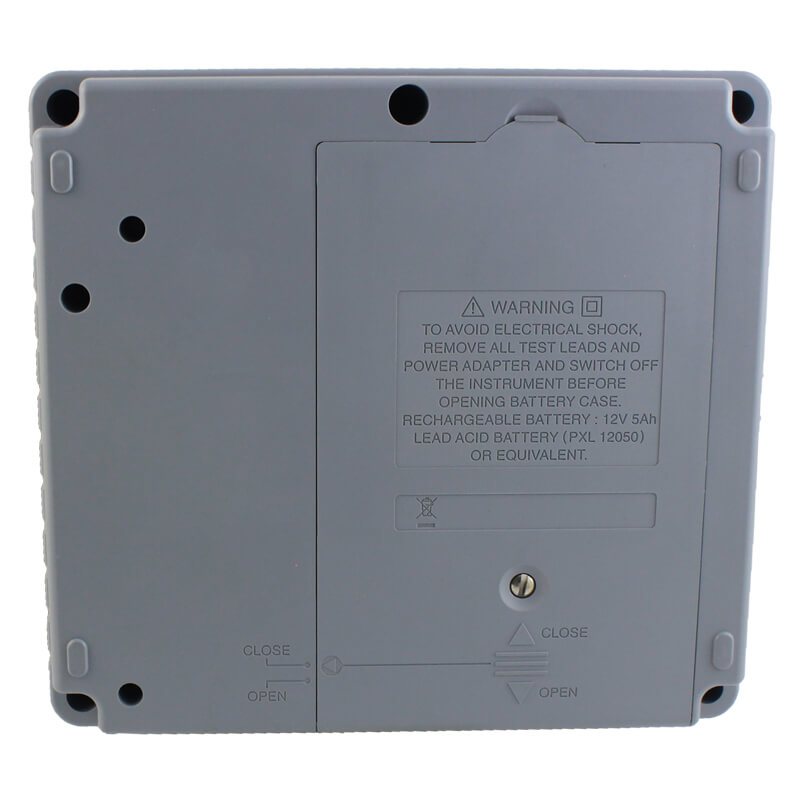

12V Lead-Acid Battery
Test Leads
Instruction manual
Charger
COC
Downloads
Additional information
Insulation resistance 250V | 250V |
---|---|
Insulation resolution 250V | 9.99GΩ |
Insulation accuracy 250V | ±(5.0% +3) |
Insulation resistance 500V | 500V |
Insulation accuracy 500V | ±(5.0% +3) |
Insulation resistance 1000V | 1000V |
Insulation resolution 1000V | 199GΩ |
Insulation accuracy 1000V | ±(5.0% +3) |
Insulation resistance 2500V | 2500V |
Insulation resolution 2500V | 999GΩ |
Insulation accuracy 2500V | ±(5.0% +3) |
Insulation resistance 5000V | 5000V |
Insulation resolution 5000V | 9.99TΩ |
Insulation accuracy 5000V | ±(5.0% +3) |
Short Circuit Current | 5mA |
Capacitance measurement | 5.0nF – 50.0µF |
Polarization index | 0.00 – 9.99 |
Dielectric absorption ratio | 0.00 – 9.99 |
Dielectric discharge | 0.00 – 9.99 |
Step voltage | Yes |
Ramp voltage | Yes |
DC Voltage | 600V |
DC Voltage resolution | 1V |
DC Voltage accuracy | ±(2.0% +3) |
AC Voltage | 600V |
AC Voltage resolution | 1V |
AC voltage accuracy | ±(2.0% +3) |
Auto discharge | Yes |
AC Bandwidth | 50.0Hz to 60.0Hz |
Digital Display | Large Graphical Display |
Bargraph | Yes |
Bluetooth | Bluetooth, PC and Android device |
Over-range indication | Yes |
Low Pass filter | Yes |
Back Light | Yes |
Enclosure | Robust moulded case IP65 |
Low battery indication | Yes |
Power source | 230V/ 12V LEAD Acid Rechargable Battery |
Weight | 8kg |
Dimensions | 208 x 225 x 130mm |
