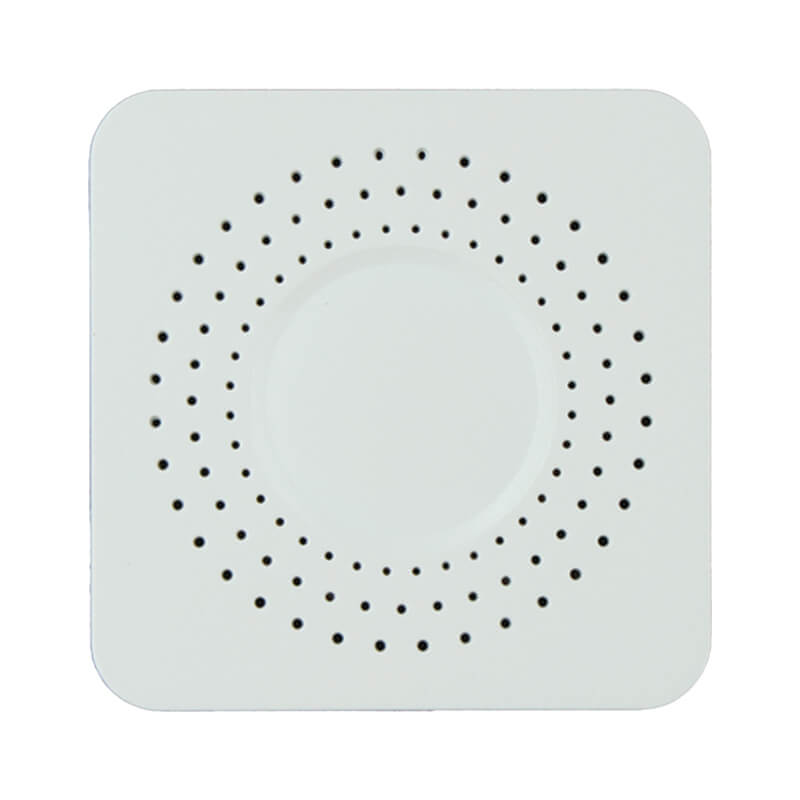

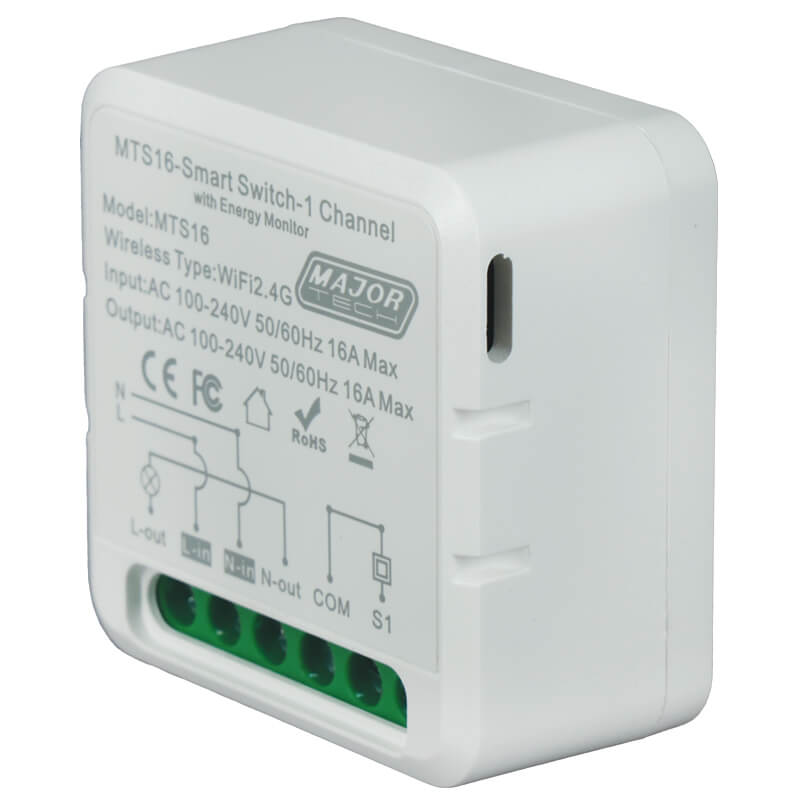

Smart Switch Module

SKU: MTS16

  • Smart App Compatibility: Easily access advanced features by downloading the free Major Tech Hub Smart App.
  • Energy Consumption Insights: Gain immediate access to both historical and real-time energy consumption data via the Smart App.
  • Advanced Timer Functions: Enjoy precise control, over the devices connected to this Switch Module, with versatile timing options, including Countdown, Schedules, Cycle Timers, Random Timer, and Inching Timer modes.
  • Designed with a compact form factor to allow for easy installation into junction boxes and behind existing switches and sockets.
  • Overcharge Protection: This feature protects connected battery powered devices and batteries from overcharging by automatically switching the MTS16 Off when the power draw is less than 3W for a period of 40 minutes.
  • Child Lock Feature: Ensure safety, prevent accidental disconnections or interrupted automations by activating the Child Lock feature, which manual switching on the MTS16.

R 295.00 ex. VAT R 339.25 in. VAT
Add to Cart

Details

Experience next level Smart Home management with the MTS16 Smart Wi-Fi and Bluetooth Switch Module. This Switch Module is specifically designed for users to be able to add a level of smart control to any standard switch or socket, with Dual Mode Wi-Fi and Bluetooth connectivity, allowing users to utilize the Smart App functionality of “Major Tech Hub” for remote monitoring and control. It adheres to 802.11b: DSSS; 802.11g/n: OFDM for Wi-Fi standards for seamless data communication, with GFSK for Bluetooth V5.1 as a failover should the Wi-Fi connection be interrupted. When installing the Smart Switch Module, ensure that it is done by a suitably qualified professional in accordance with South African regulations and making sure it is placed in an appropriate environment with an ambient temperature range of -25°C to 55°C. The relative humidity should be kept below 75%.

Specifications:

Function Range
Rated Frequency 50/60Hz
Rated Current 16A Max
Rated Load 3100W (Resistive)
Rated Voltage 110 – 240V AC
Approvals IEC, SANS, ICASA, LOA, CE
Voltage Range 100-240V AC
Wifi Parameter 802.11b/g/n, 2.4GHz networks only, 5GHz not supported
Bluetooth Version GFSK for Bluetooth V5.1 (BT LE)
Operating Temperature -25°C to 55°C

Warranty

Videos:

MTS16 Smart Switch Installation Guide
