Professional AC/DC Mini Clamp Meter

SKU: K2001

  • Ø10mm Open Clamp Jaw
  • AC and DC voltage to 600V
  • Measures AC and DC up to 100 Amps
  • Resistance 34MΩ
  • Frequency 10kHz – Current
  • Auto range / 300kHz – Voltage
  • CAT III 300V and CAT II 600V

R 3 955.00 ex. VAT R 4 548.25 in. VAT

Details

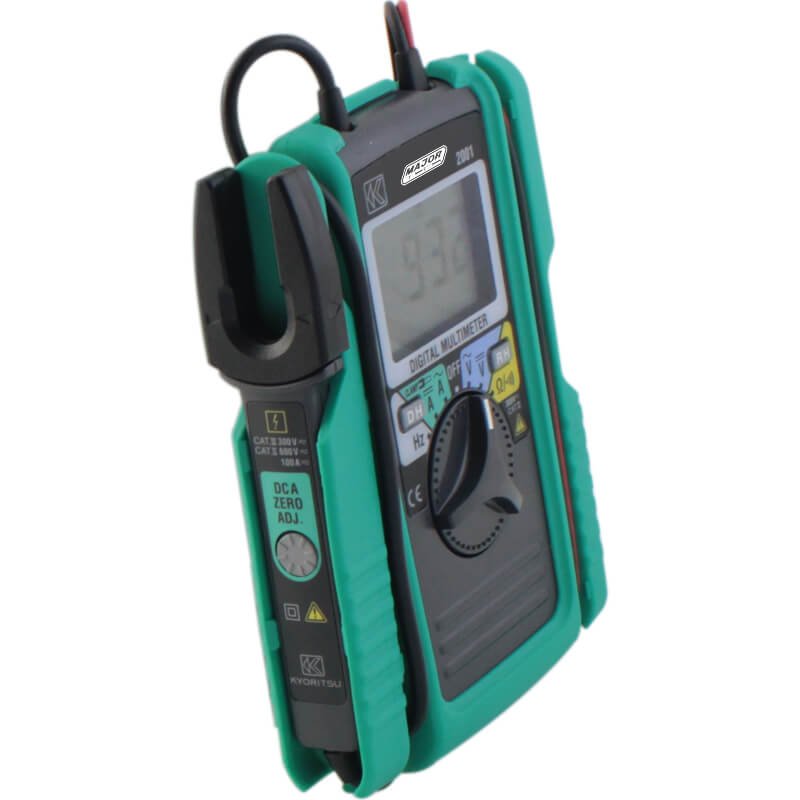

The K2001 auto range with manual override meter has a 3400 count display and incorporates a 33 segment bargraph that comes complete with a rubber holster. It is capable of measuring resistance up to 34MΩ. The pocket size of the K2001 becomes handy for Electrical Engineers, Inspectors and Maintenance Electricians to carry around with them, as it is always readily available for quick tests.

Specifications:

Function  Range Resolution  Accuracy
DC Voltage 600V 0.1mV ± (1.5% + 4 Digits)
AC Voltage 600V 1mV ± (1.5% + 5 Digits)
DC Current 100A 0.1A ± (2.0% + 5 Digits)
AC Current 100A 0.1A ± (2.0% + 5 Digits)
Duty Cycle 0.1 to 99.9% 0.01% ± (1.2% + 2 Digits)
Resistance 34MΩ 0.1Ω ± (1.0% + 3 Digits)
Frequency 300Khz 0.001kHz ± (0.1% + 1 Digits)
Continuity Yes
Digital Display 3400
Bargraph Yes
Over-range indication Yes
Input Impedance >10MΩ VDC & >10MΩ VAC
Data Hold Yes
Enclosure Rubber Holster
Low battery indication Yes
Power source 2 x R03
Dimensions 128 x 87 x 24mm
Weight 220g

Safety Rating

Accessories:

  • Instruction Manual
  • 2 x batteries
