1500V DC IP67 True RMS Bluetooth Multimeter

SKU: MT1885

  • 6000 count with 61 Segment Bargraph
  • Measures DCV up to 1500V & ACV up to 1000V
  • Temperature measurement from -20⁰C to 1000⁰C
  • AC & DC Micro Amps up to 10A
  • Capacitance to 100mF
  • Frequency to 10MHz
  • Duty Cycle
  • Relative mode
  • Automatic NCV where LCD backlight turns red
  • Min, Max and Data Hold
  • Auto Power Off
  • IP67 Dust & waterproof with O-ring sealed casing

R 3 160.00 ex. VAT R 3 950.00 R 3 634.00 in. VAT
Add to Cart

Details

The MT1885 is a 1500V DC IP67 True RMS Bluetooth Multimeter specially designed for the Solar industry due to the measurement of up to 1500V DC. The meter has a large 6000 count backlit LCD with the added advantage of a 61 segment analogue bargraph. NCV function, automatic Non-Contact voltage detection, the LCD backlight will be in red when AC voltage above 110V is sensed. Other measuring ranges include ACV to 1000V, Micro Amps and Amps, Frequency, Resistance, Duty Cycle, capacitance and temperature measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.



Specifications:

Function Range Resolution Accuracy
DC voltage 0.1mV - 1500V 0.1mV ± (0.5% + 5 Digits)
AC voltage 1mV - 1000V 1mV ± (0.8% + 4 Digits)
DC Current 0.1μA - 10A 0.1μA ± (1% + 3 Digits)
AC Current 0.1μA - 10A 0.1μA ± (1.5% + 3 Digits)
Duty Cycle 0.1 to 99.9% 0,10% ± (1.2% + 2 Digits)
Resistance 0.1Ω - 60.00MΩ 0.1Ω ± (1.5% + 2 Digits)
Frequency 0.001Hz - 10MHz 0.001Hz ± (1.2% + 4 Digits)
Capacitance 0.01nF - 4000μF 0.01nF ± (4% + 5 Digits)
Temperature -20 to 1000°C 0.1°C ± (3% + 5 Digits)
True RMS Measurements Yes
AC Bandwidth  50Hz to 1KHz
Digital Display 6000
Bargraph Yes
Bluetooth Yes
Continuity Yes
Diode test Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Input impedance >10MΩ VDC & >10MΩ VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 6LR61
Dimensions 187 x 81 x 50mm
Safety Specs IEC61010-1 CatIV 600V



Safety Rating

Accessories:

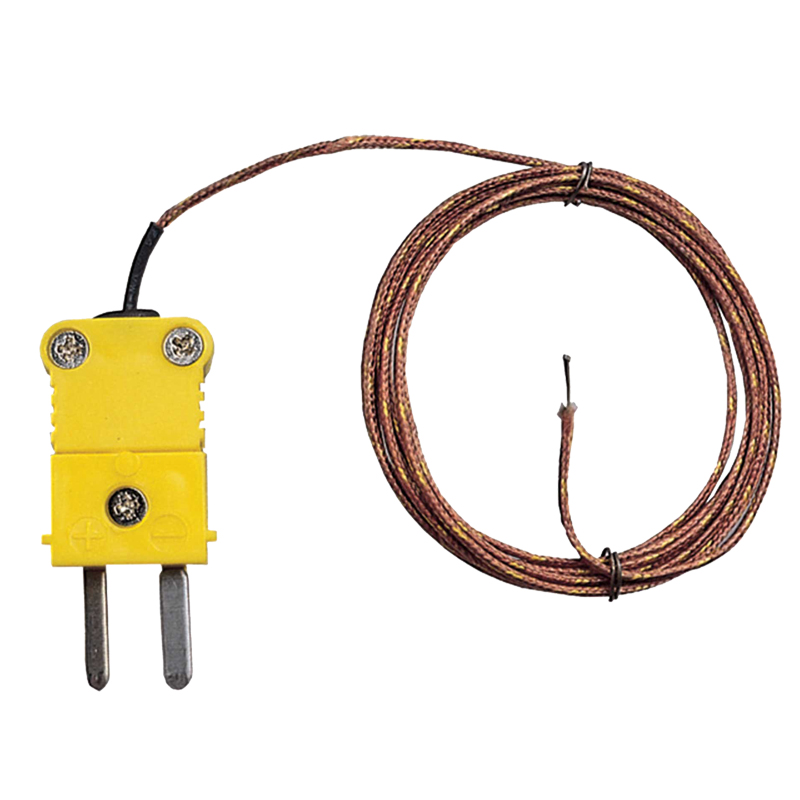

  • Type-K Temperature Probe

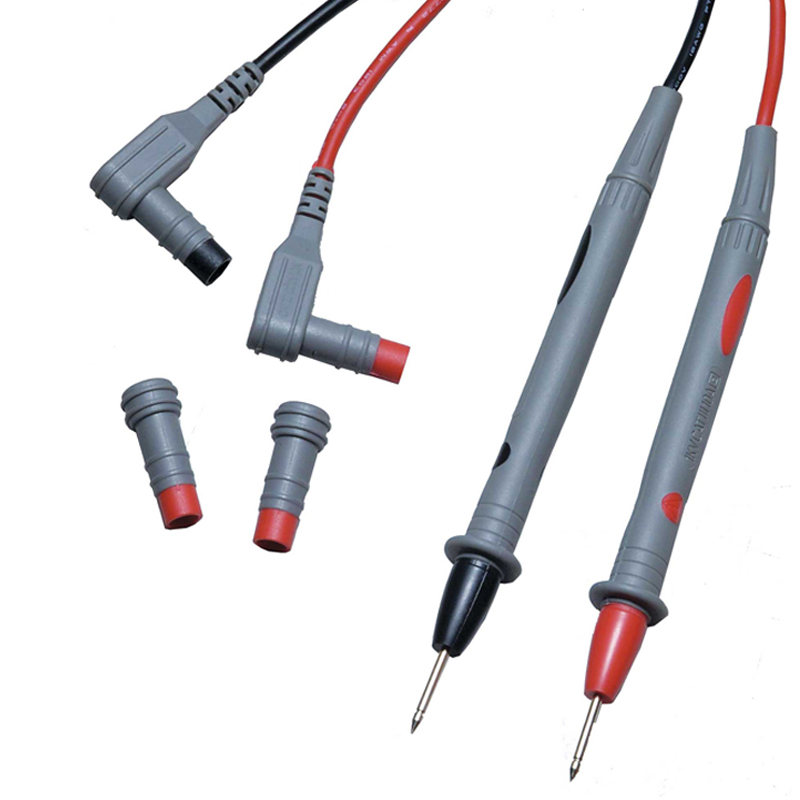

  • Test Leads

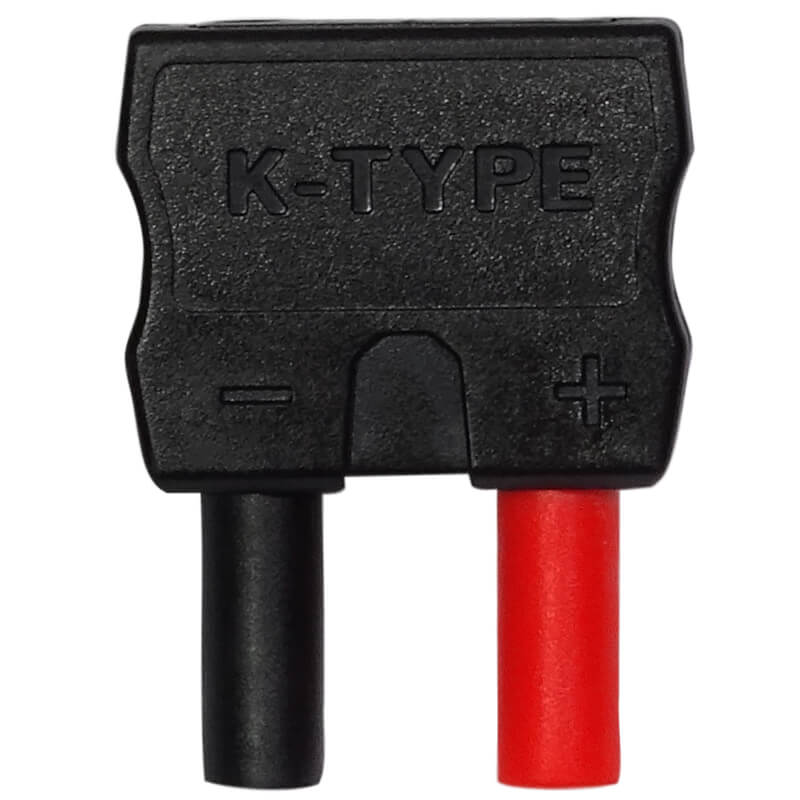

  • Type-K Adaptor

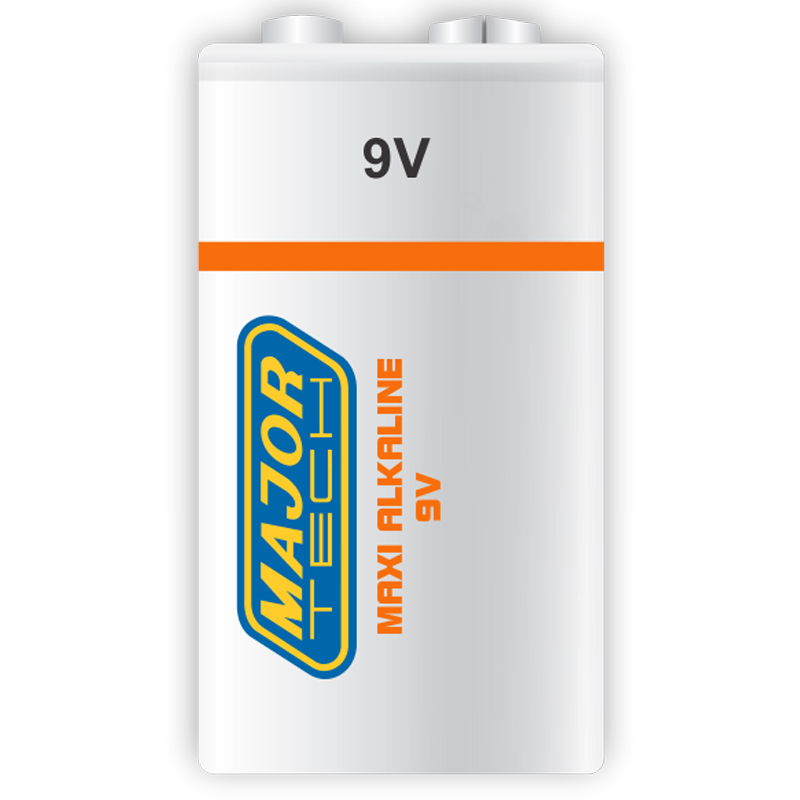

  • 9V Battery
  • Instruction Manual
