Intrinsically Safe K3007

SKU: K3007IS

  • Three test ranges 250V – 500V – 1000V
  • Auto null function
  • Trac-Lok mode to extend battery life by up to 400%
  • Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
  • Displays the value of external AC voltage along with flashing symbol and buzzer
  • Lock down Test Button for continuous use
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • EL back light for dimly lit areas
  • CAT III 300V and CAT II 600V

Intrinsically Safe K3007

R 10 725.00 ex. VAT R 12 333.75 in. VAT

Details

Major Tech’s range of insulation testers are ideal for mining, industry and electricians applications. The K3007IS has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in both models is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. The top of the range K3007IS is equipped with Trac-Lok circuits that improve battery life considerably, thus saving the user money. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.

Specifications:

Function Range  Resolution  Accuracy
Insulation resistance 250V 250V 20MΩ ±(1.5% +5)
Insulation resistance 500V 500V 200MΩ ±(1.5% +5)
Insulation resistance 1000V 1000V 2000MΩ ±(10% +3)
AC Voltage 600V 1V ±(5.0% +3)
Resistance 2000Ω 0.01Ω ±( 1.5%+5)
Short Circuit Current 1.5mA
Current measurement 200mA
Continuity Yes
Trac loc Yes
Auto discharge Yes
Digital Display LCD Display
Bargraph Yes
Over-range indication Yes
Back Light Yes
Enclosure Moulded case IP54
Low battery indication Yes
Power source 6 x R6
Dimensions 185 x 167 x 89mm
Weight 900g

Safety Rating

Accessories:

  • Pouch for leads
  • AA batteries

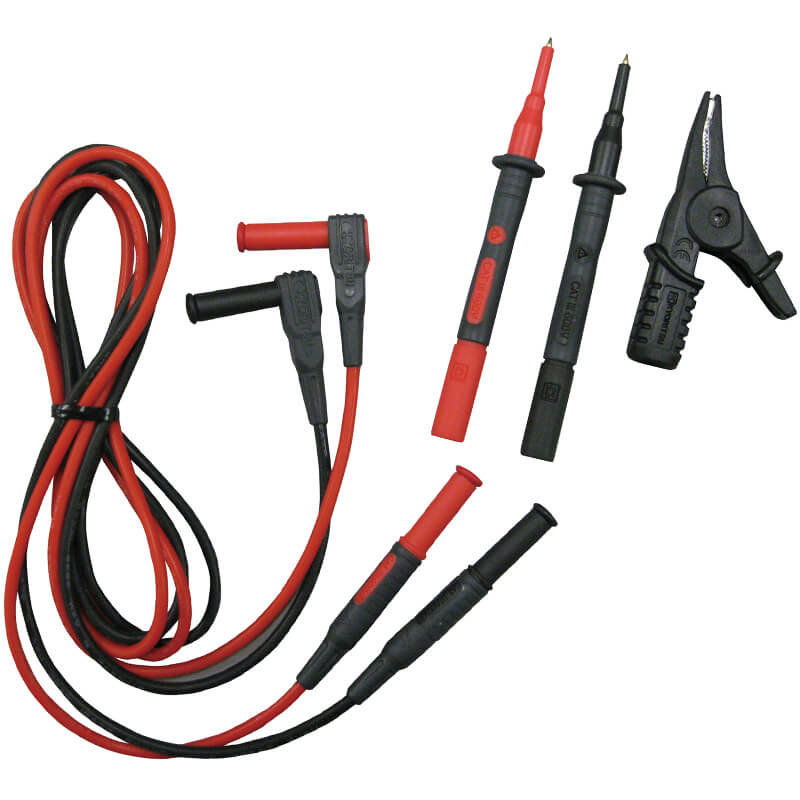

  • Test leads
  • Instruction Manual
  • Strap
  • COC
