Industrial Multimeter

SKU: MT1882

  • IP67 Dust & waterproof with O-ring sealed casing
  • Auto range with manual override
  • Temperature between -20°C to 1000°C
  • Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
  • Measures AC and DC voltage to 1000V
  • Capacitance to 4000μF / Relative mode / Data hold

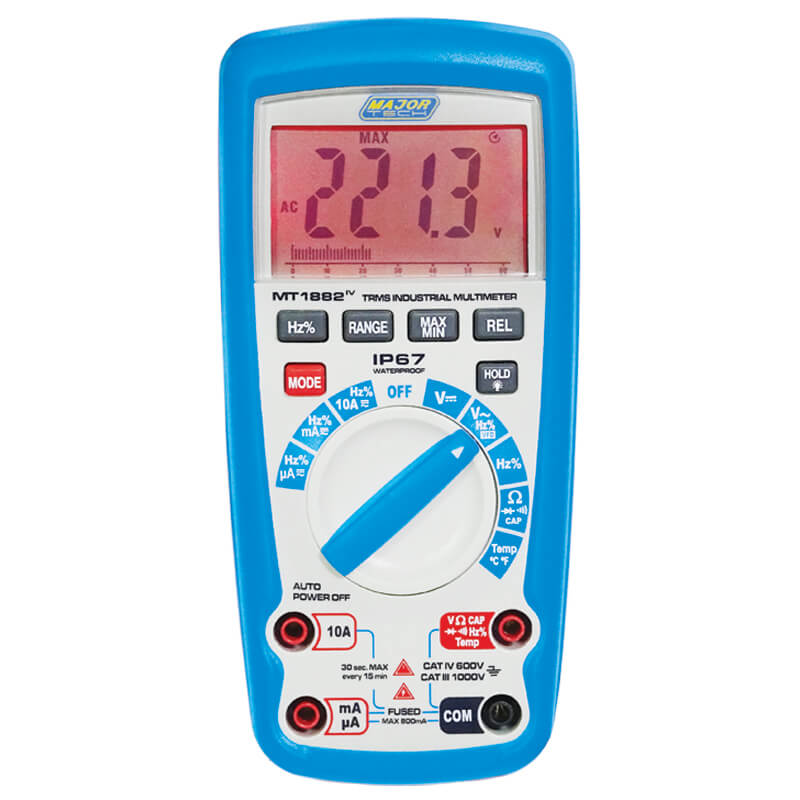

  • NCV detection above 110V AC, LCD turns red to indicate presence of voltage
  • MIN/MAX recording mode
  • Measures resistance up to 60MΩ
  • 6000 Count LCD display with a 61 segment analogue bargraph
  • Full ranges protection & Auto power off

R 3 435.00 ex. VAT R 3 950.25 in. VAT

Details

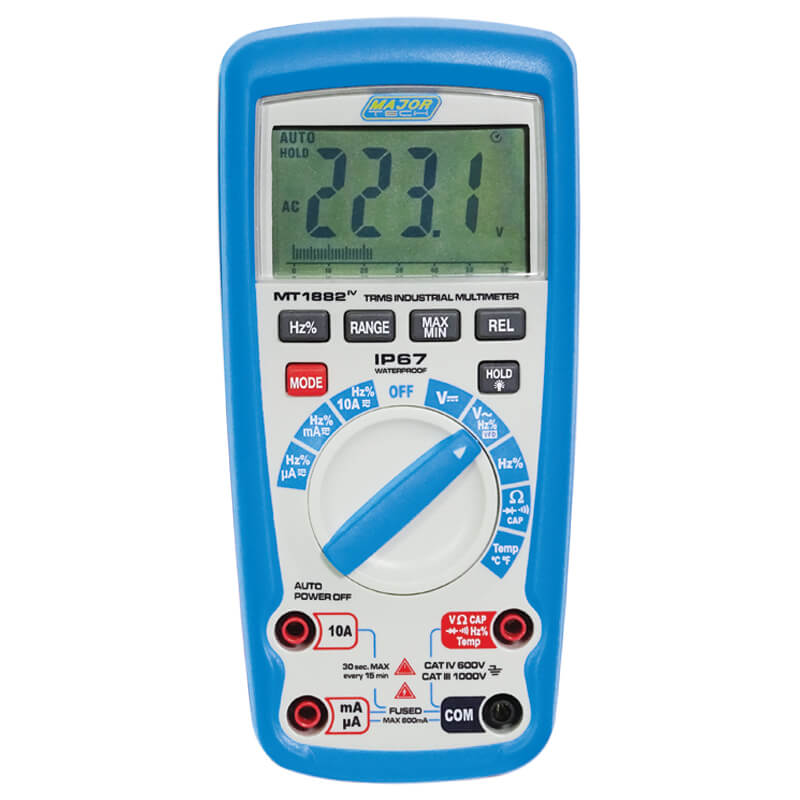

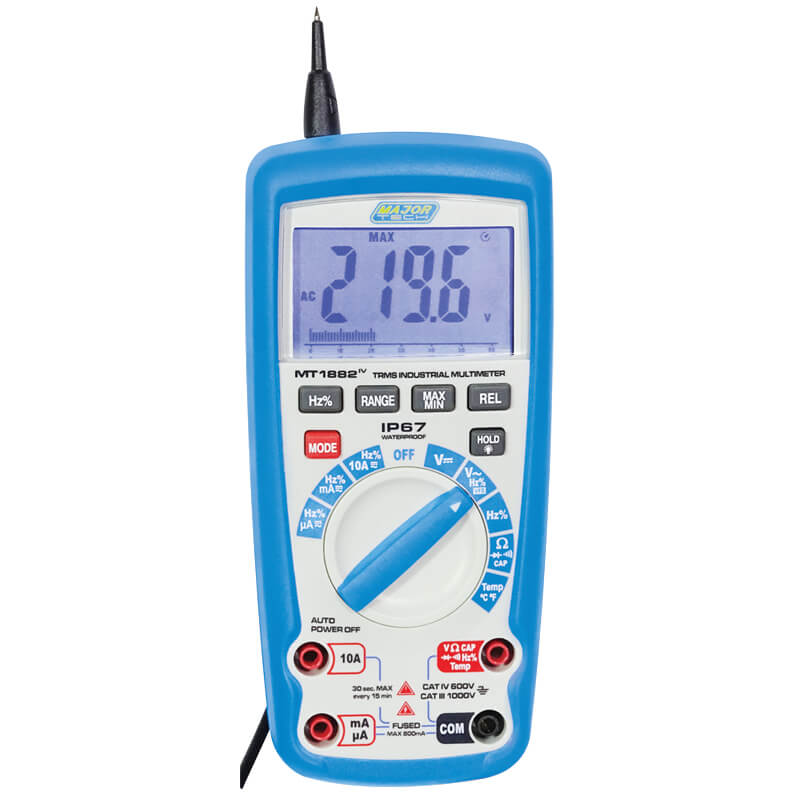

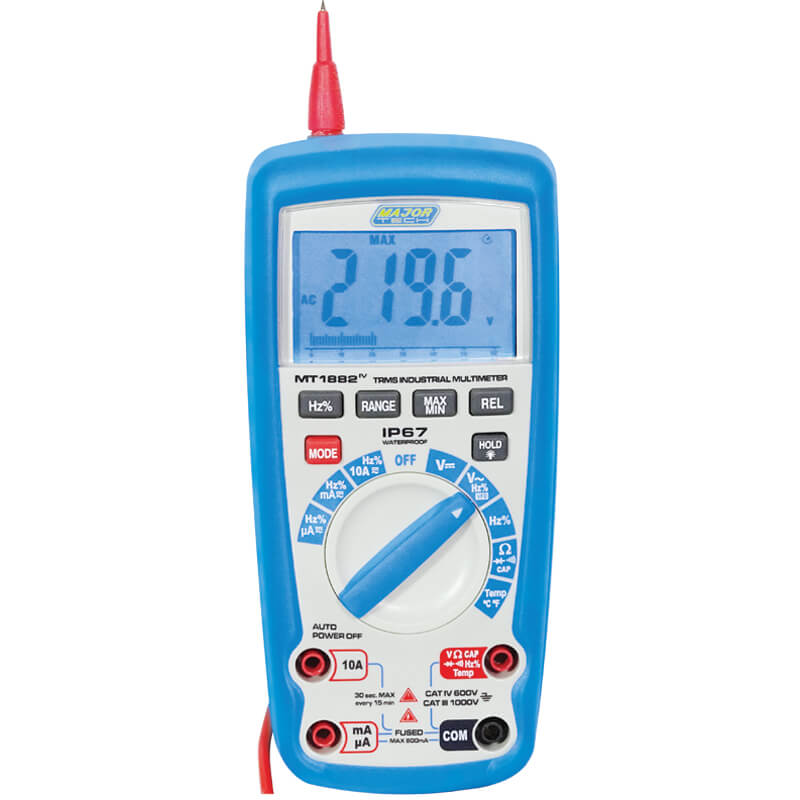

The MT1882 is a 1000V AC/DC IP67 True RMS Multimeter especially designed for everyday use by HVAC technicians and electricians, whist offering voltage measuring ranges up to 1000V AC and DC and with useful measuring ranges of Temperature, Resistance, AC/DC Current, Capacitance and Frequency. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The large 6000 count backlit LCD display with a 61 segment bargraph ensures that readings are easy to read under all circumstances. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of up to 1000V AC/DC is applied to the meter, the meter will not get damaged. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Specifications:

Function Range Resolution Accuracy
DC voltage  0.1mV - 1000V 0.1mV ± (0.5% + 5 Digits)
AC voltage  1mV - 1000V 0.001V ± (0.8% + 4 Digits)
AC voltage (VFD)  50.0V - 600.0V 0.1V ± (4% + 9 Digits)
DC Current  0.1μA - 10A 0.1μA ± (1.0% + 3 Digits)
AC Current  0.1μA - 10A 0.1μA ± (1.5% + 3 Digits)
Duty Cycle  0.1 to 99.9% 0,10% ± (1.2% + 2 Digits)
Resistance  0.1Ω - 60.00MΩ 0.1Ω ± (0.8% + 2 Digits)
Frequency  0.001Hz - 10MHz 0.001Hz ± (1% + 4 Digits)
Capacitance  0.01nF - 4000μF 10pF ± (4% + 5 Digits)
Temperature  -200 to 1300°C 0.1°C ± (3.0% + 5 Digits)
True RMS Measurements  Yes
AC Bandwidth   50Hz to 400Hz
Digital Display  6000
Bargraph  Yes
Continuity  Yes
Diode test  Yes
Non-Contact Voltage (NCV)  Yes
Overrange indication  Yes
Input impedance  >10MΩ VDC & >10MΩ VAC
Min Max  Yes
Data Hold  Yes
Enclosure  Double moulded waterproof IP67
Low battery indication  Yes
Power source  6LF22
Weight  342g
Dimensions  187 x 81 x 50mm
Safety Specs  IEC61010-1 CatIV 600V

Safety Rating

Accessories:

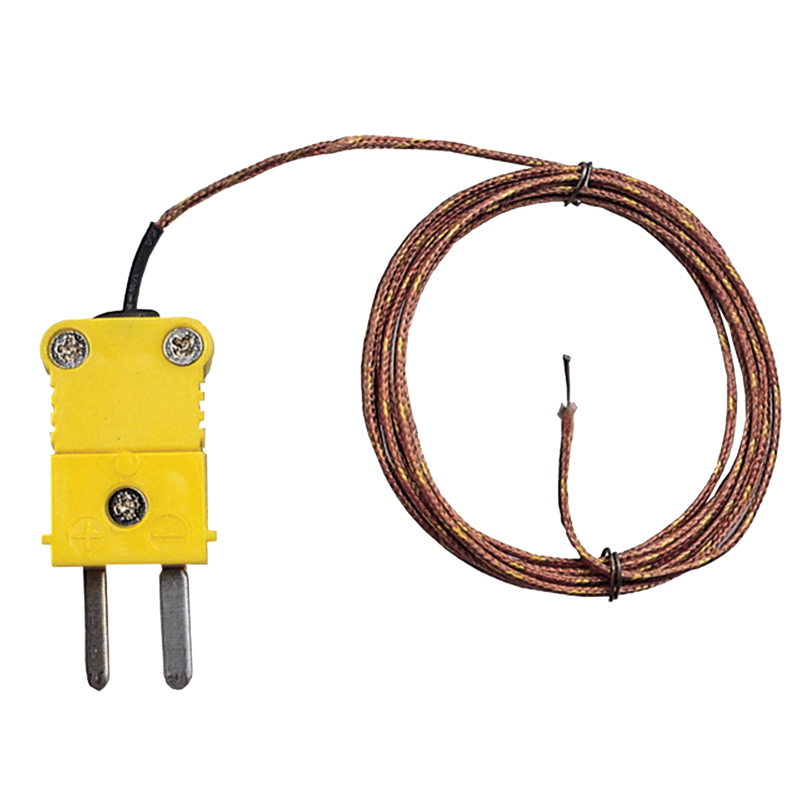

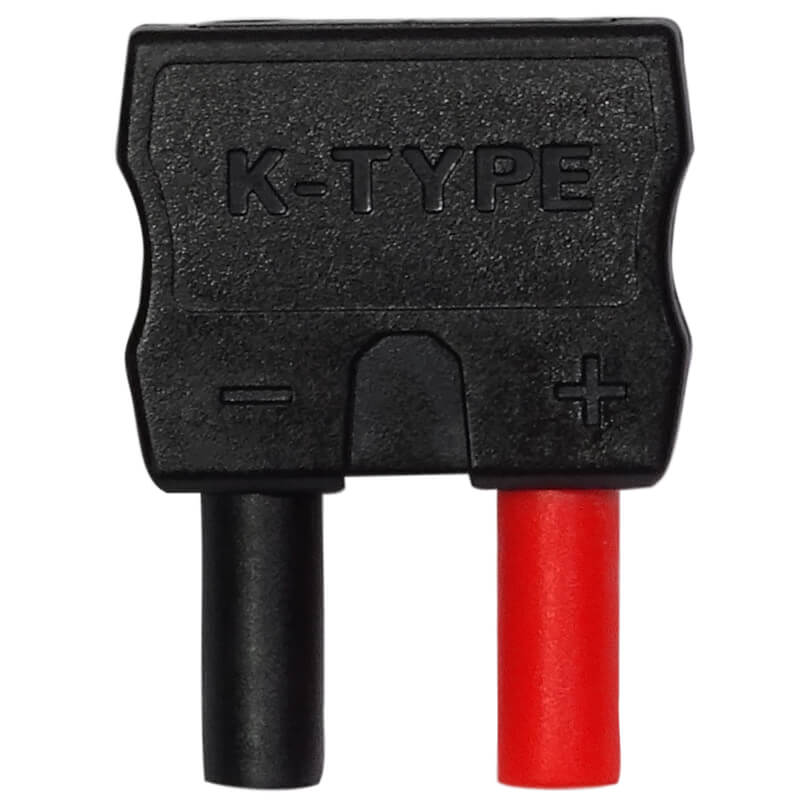

  • Type K Temperature Probe

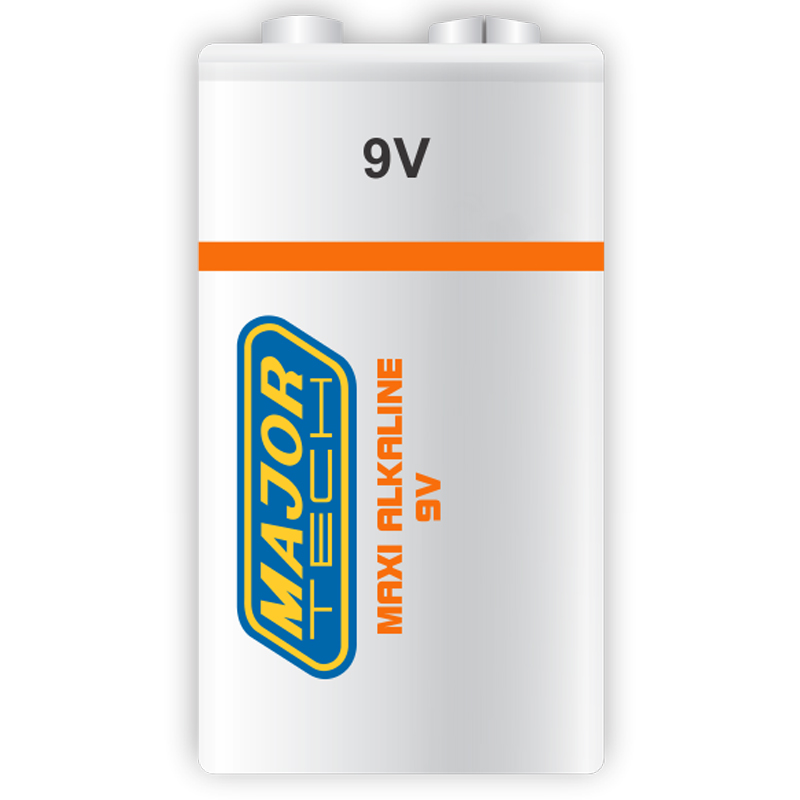

  • 9V Battery

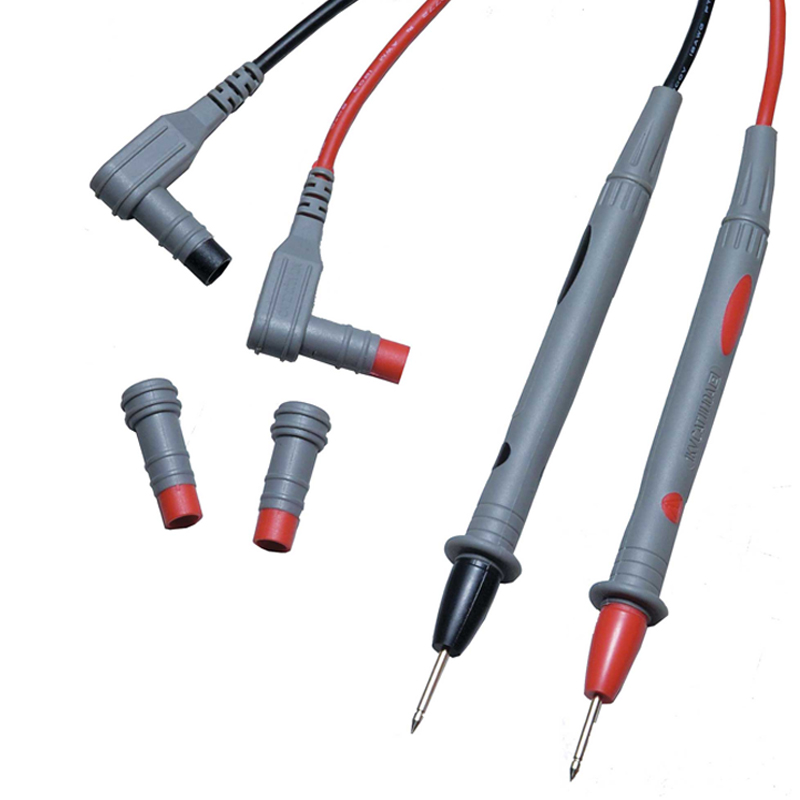

  • MT810 Test Leads
  • Instruction Manual

Optional Accessories:

  • MT684 IR Probe -30°C~550°C
  • MT680 K-Type Air Probe
  • MT682 K-Type Pipe Clamp Probe
