Earth Resistance Clamp Meter with Bluetooth

SKU: K4202

  • Easy Earth / Ground resistance measurement
  • True RMS readings
  • Jaw Ø32mm
  • Earth / Ground Resistance 0.05Ω to 1500Ω resolution
  • AC A 0.1mA to 30A Resolution
  • Noise check function
  • 100 Data storage points
  • Bluetooth Function

R 33 000.00 ex. VAT R 37 950.00 in. VAT

Details

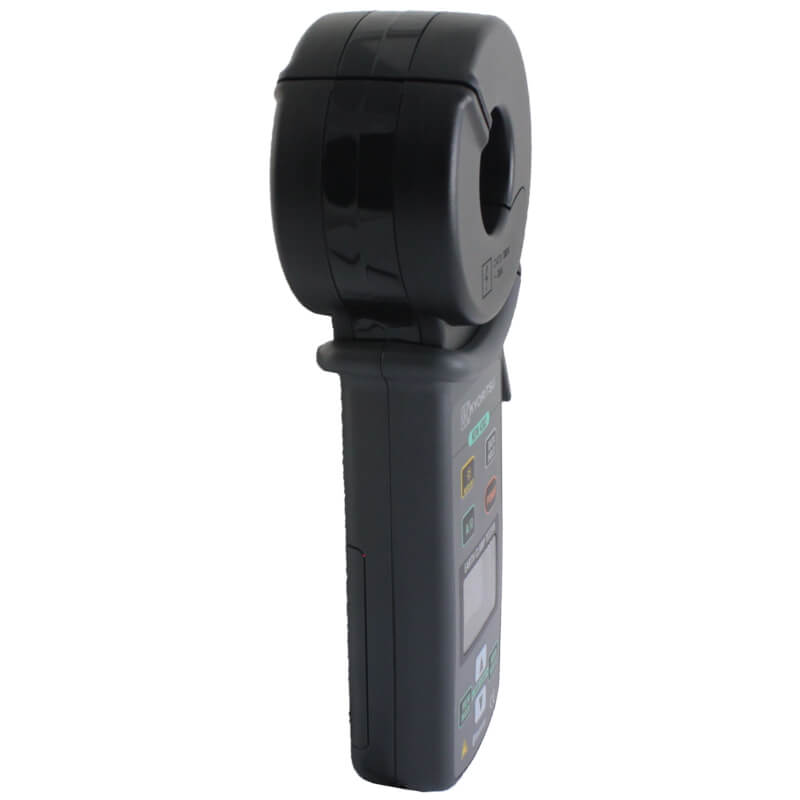

The K4202 is an Earth Resistance Clamp Meter with Bluetooth and measures earth resistance from 0.05 to 1500Ω and can be measured without the auxiliary earth spikes in multi-earthing systems. True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks. The filter function offers increased immunity to electrical noise and a noise mark appears in excessively high noisy environments. The K4202 stores up to 100 measurements and real time measurements can be transferred, shown and saved on an Android device using Bluetooth communication. Saved data includes measurement, GPS location, date and time.

Specifications:

Function Range Resolution Accuracy
AC Current 100mA/1000mA/10A/30A 0.1mA ±(1%+5)
Earth resistance 20/200/600?/1200Ω 0.01Ω ±(2%+0.5)
Conductor size 32mm
True RMS AC Current
PC interface Bluetooth interface
Display LCD Display 2099
Memory 100 data points
Back light Yes
Enclosure Moulded case
Low battery indication Yes
Power source 4 x L6P
Weight 780g
Dimensions 246 x 120 x 54mm
Safety specs IEC61010-1 CatIV 300V

Safety Rating

Accessories:

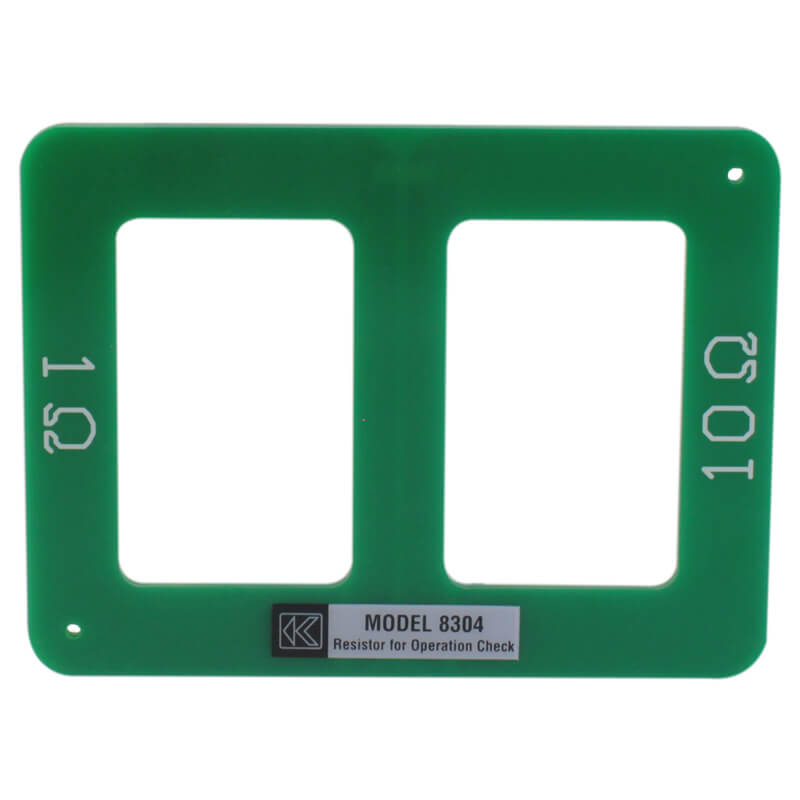

  • K8304 (Resistors for operation check)

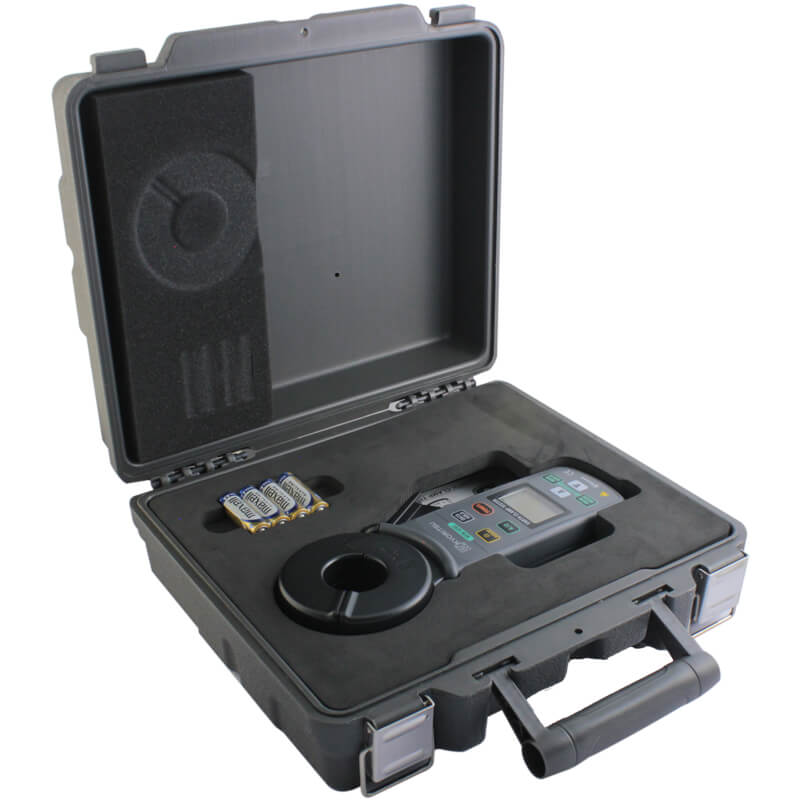

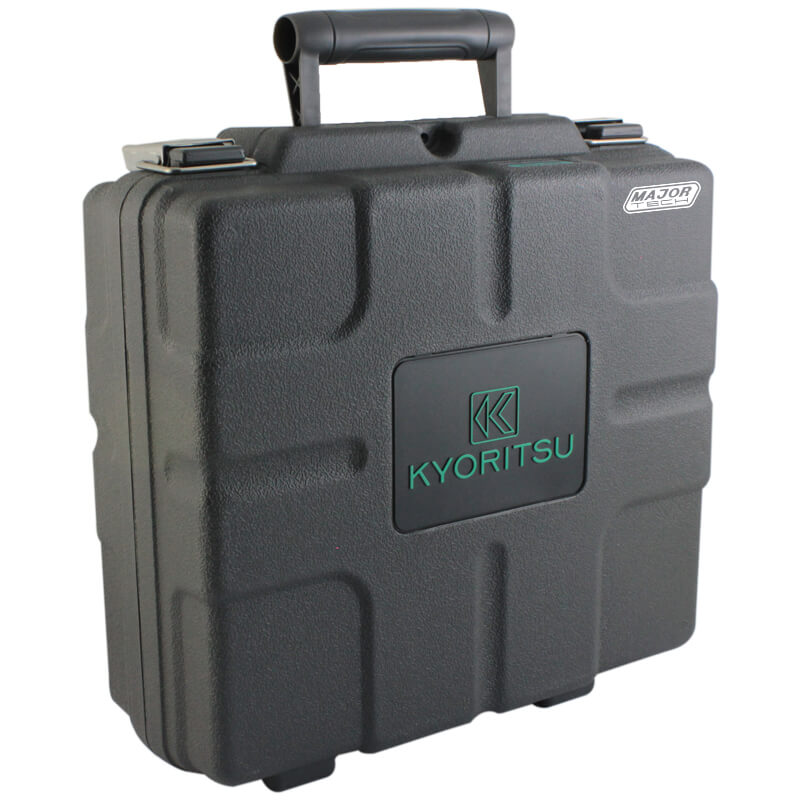

  • K9167 (Carrying case [Hard])
  • LR6 (AA) × 4
  • Instruction manual
