600V AC/DC True RMS Multimeter

SKU: MT876

  • CAT III 600V and CAT II 1000V

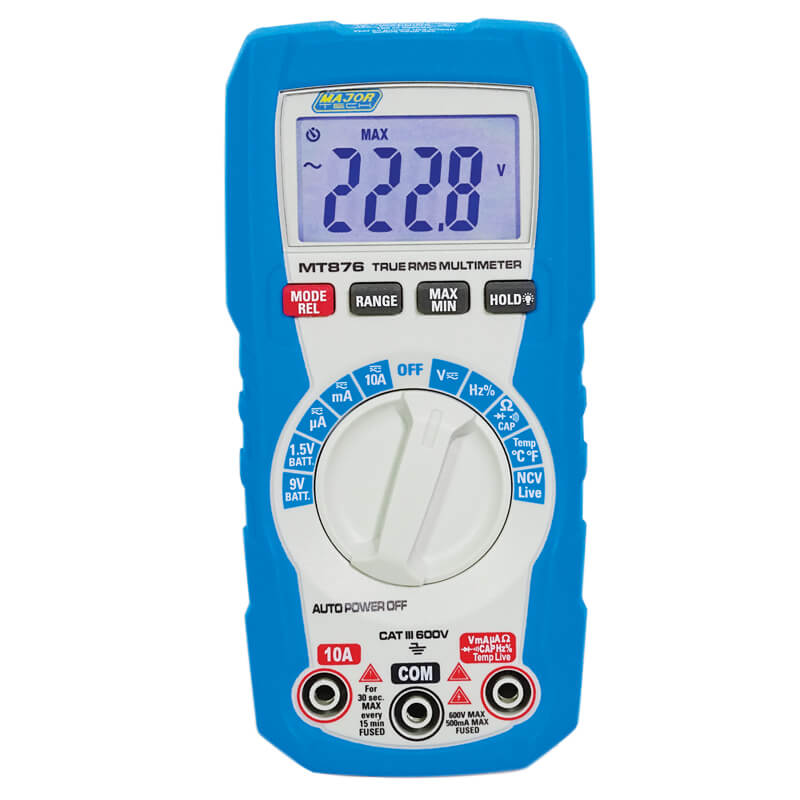

  • 4000 count with backlit LCD display
  • AC and DC Voltage 600V
  • AC and DC Current 10A
  • Duty Cycle 99.9%
  • Resistance 40Mꭥ
  • Temperature -18 to 1000˚C
  • Capacitance 99.9 mF
  • Frequency 9.999 MHz
  • Battery test for 1.5V and 9V batteries
  • Detection of LIVE wire
  • Duty Cycle
  • Min, Max and Data Hold
  • Auto Power Off

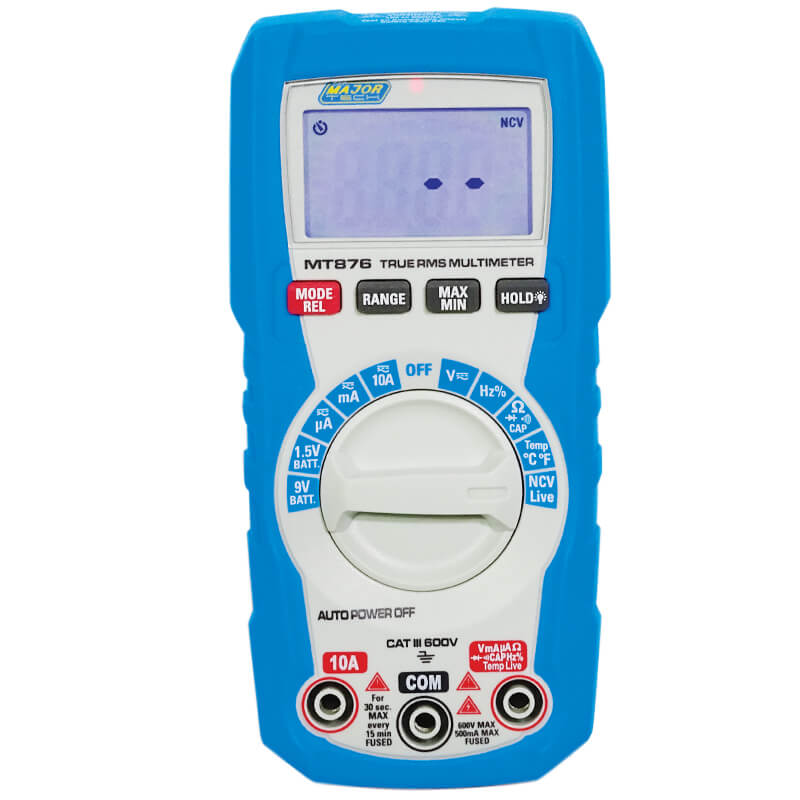

  • NCV – Non-Contact Voltage Detector

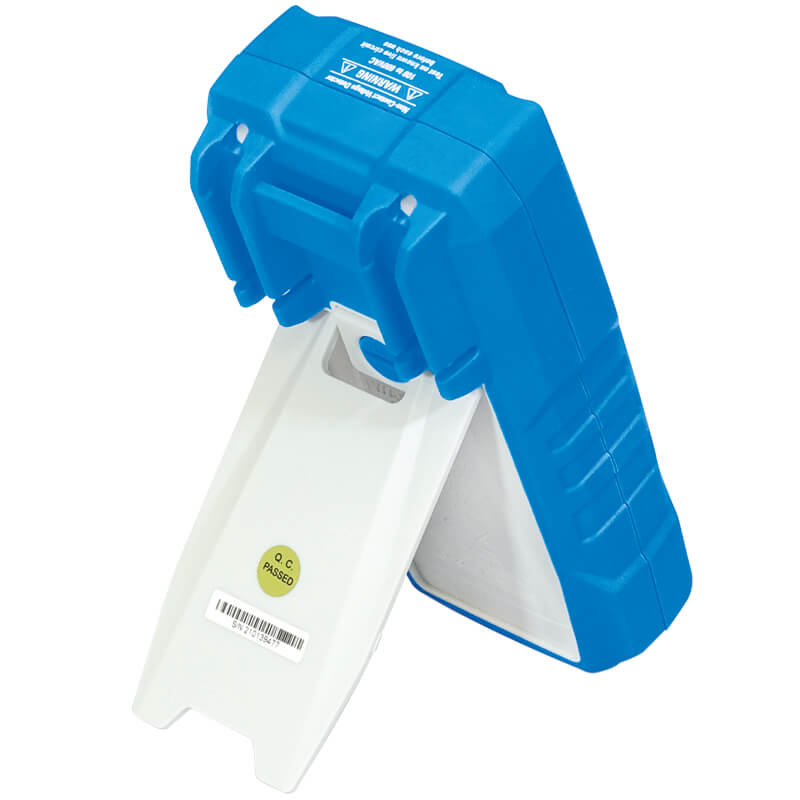

  • Built-in Tilt Stand

R 1 235.00 ex. VAT R 1 420.25 in. VAT

Details

The MT876 is a 600V AC/DC True RMS Multimeter supplied in a double moulded rubber housing, designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. This is an auto ranging multimeter with the option of manual override and has a 4000 count display with a back light. The “Live” function allows the user to physically connect one lead to the Live or Neutral wires to determine the Live contact and when detected, LIVE is displayed on screen and the NCV indicator light flashes and the buzzer sounds. This 600V AC/DC True RMS Multimeter conforms to the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.

Specifications:

Function Range Resolution Accuracy
DC voltage 0.1mV – 600V 0.1mV ± (0.5% + 8 Digits)
AC True RMS voltage 0.1mV-600V 0.1V ± (1.2% + 5 Digits)
DC Current 0.1µA-10A 0,1mA ± (1.0% + 5 Digits)
AC True RMS Current 0.1µA-10A 0,1mA ± (1.2% + 5 Digits)
Frequency 0.001Hz – 9.999MHz 0.001Hz ± (1.2% + 5 Digits)
Capacitance 0.01nF – 99.9mF 0.01nF (3.5% + 5 Digits)
Duty Cycle 0.5% – 99.9% 0,10% ± (1.2% + 5 Digits)
Resistance 0.1Ω – 40MΩ 0.1Ω ± (1.5% + 5 Digits)
Temperature -18°C – 1000°C 1°C ± (1.5% + 5°C)
True RMS Measurements Yes
AC Bandwidth 50Hz to 1kHz
Digital Display 2000
Continuity Yes
Diode test Yes
Overrange indication Yes
Input impedance >10MΩ VDC & VAC
Min Max Yes
Data Hold Yes
Enclosure Double moulded
Low battery indication Yes
Power source 2 x LR03
Weight 221g
Dimensions 154 x 74 x 43mm
Safety Specs IEC61010-D3:D831 CatIII 600V

Safety Rating

Accessories:

  • Test Leads
  • Type-K Temperature Probe
  • Type-K Adaptor
  • 2 x AAA Batteries
