600V AC/DC True RMS Bluetooth Multimeter

SKU: MT26

  • 4000 count with 41 Segment Bargraph
  • Measures AC and DC voltage up to 600V
  • Temperature measurement from -18⁰C to 760⁰C
  • Capacitance to 4000μF
  • Frequency to 10MHz
  • Duty Cycle
  • Min, Max and Data Hold
  • Auto Power Off
  • LED Flashlight
  • IP67 Dust & Waterproof
  • LCD Back Light

R 2 750.00 ex. VAT R 3 162.50 in. VAT

Details

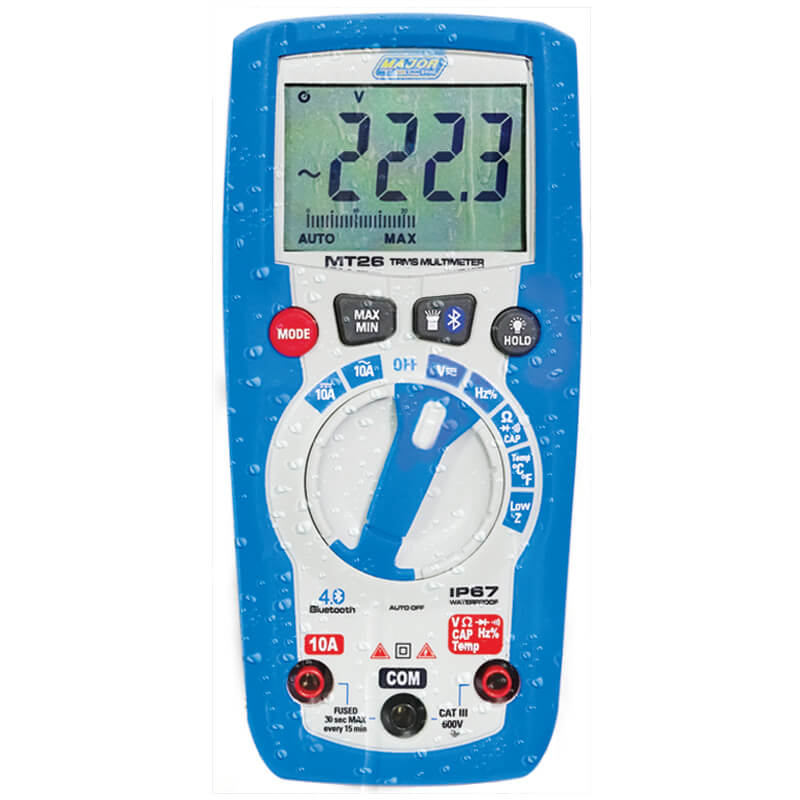

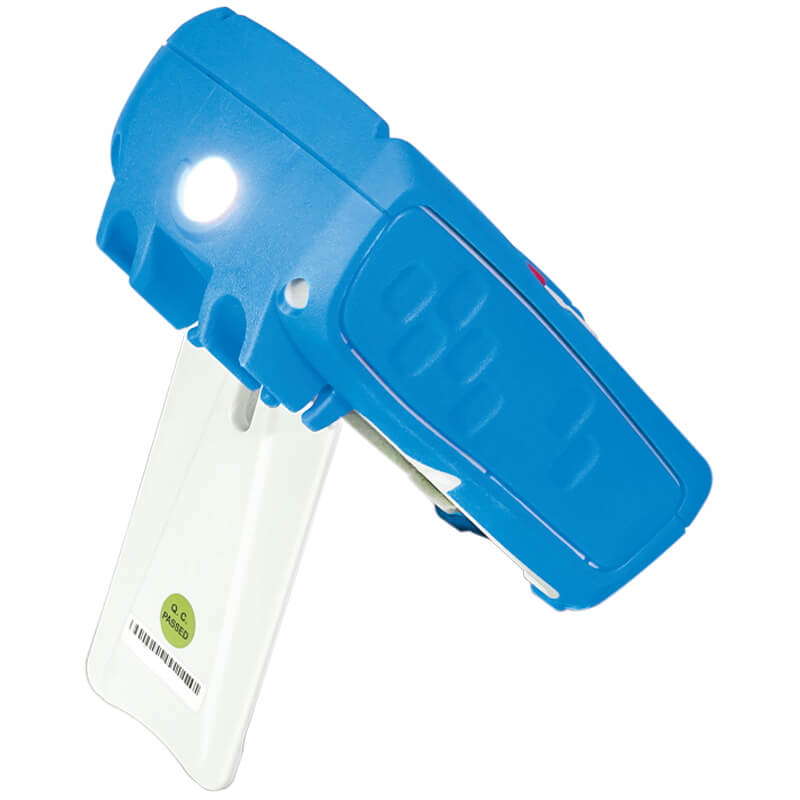

The MT26 is a 600V AC/DC True RMS Bluetooth Multimeter offering measurements of AC and DC voltage, AC and DC current, frequency, capacitance, resistance and temperature. The meter has a large 4000 count backlit LCD with the added advantage of an analogue bar graph. The Low Z function has a low pass filter to eliminate errors caused by “Ghost” voltages. There is a built-in LED flashlight for dimly lit areas and a tilt stand. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organising and sharing recordings. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating.

Specifications:

Function Range Resolution Accuracy
DC voltage 0.1mV -600V 0.1mV ± (1.0% + 3 Digits)
AC voltage 0.1mV – 600V 1mV ± (1.0% + 5 Digits)
DC Current 1mA – 10A 1mA ± (2.0% + 3 Digits)
AC Current 1mA – 10A 1mA ± (2.5% + 3 Digits)
Duty Cycle 0.1 to 99.90% 0,10% ± (1.2% + 2 Digits)
Resistance 0.1Ω – 40.00MΩ 0.1Ω ± (1.5% + 5 Digits)
Frequency 0.001Hz – 9.999MHz 0.001Hz% ± (1.0% + 5 Digits)
Capacitance 10pF – 4000μF 10pF ± (3.0% + 5 Digits)
Temperature -18°C to 760°C 0.1°C ± (2.0% + 5°C)
True RMS Measurements Yes
AC Bandwidth 50Hz to 400Hz
Digital Display 4000
Bargraph Yes
Bluetooth Yes
Continuity Yes
Diode test Yes
Overrange indication Yes
Input impedance >7.8MΩ VDC & VAC
Data Hold Yes
Enclosure Double moulded waterproof IP67
Low battery indication Yes
Power source 3 x LR6
Weight 318g
Dimensions 147 x 68 x 50mm
Safety Specs IEC61010-1 CatIII 600V

Safety Rating

Accessories:

  • Soft Carrying Case

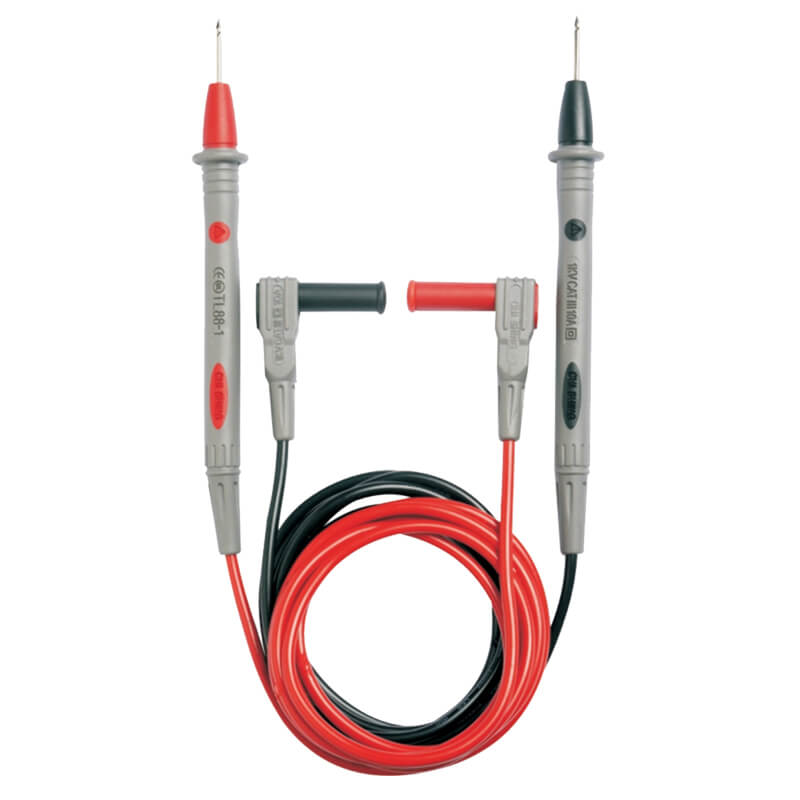

  • Test leads

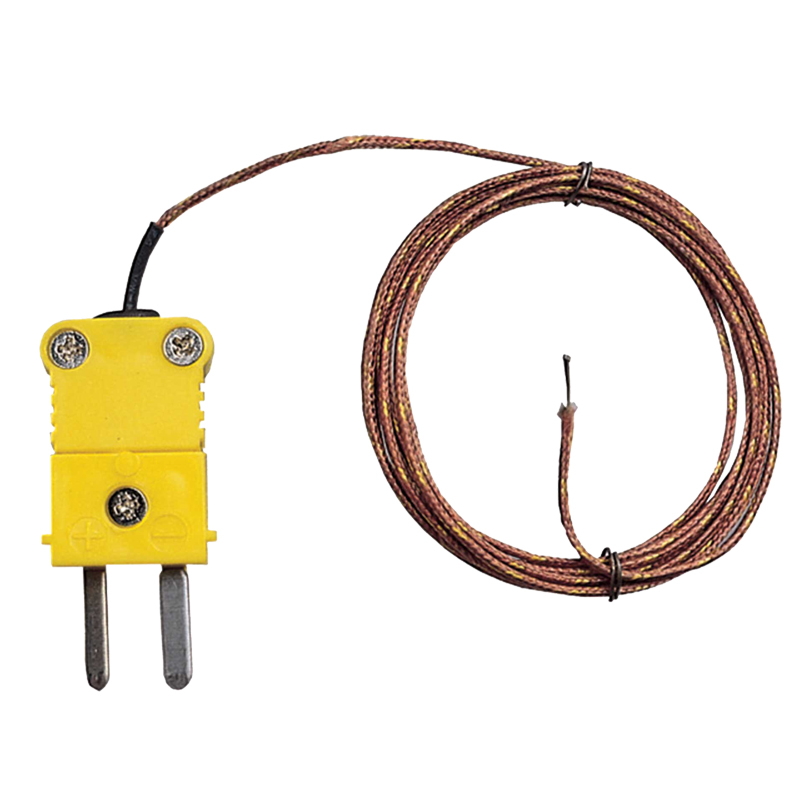

  • Temperature Probe
  • Instruction Manual

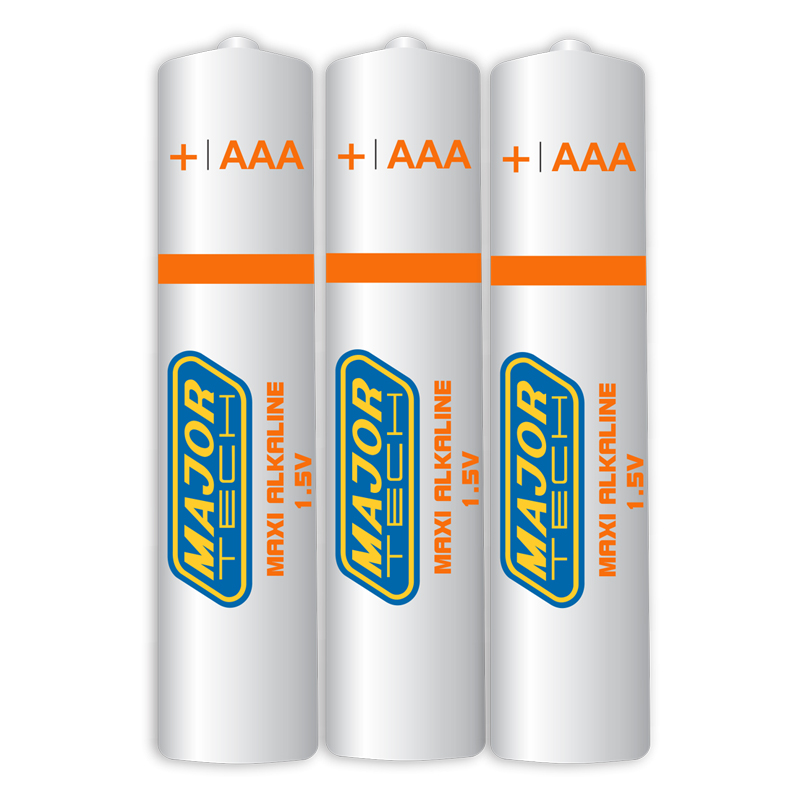

  • 3 x AAA Batteries
