600A AC Clamp Meter

SKU: MT765

  • 6000 count negative LCD display
  • Ø33mm Cable Clamp size
  • Measurement of DC voltage and AC voltage up to 1000V
  • Capacitance to 10mF
  • Temperature measurement from -20⁰C to 1000⁰C
  • IR Temperature Spot Ratio 4:1 & measurement from -30⁰C to 350⁰C
  • VFD – Variable Frequency Drive voltage value
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer and Diode Test
  • Max, Min and Data Hold function
  • Auto Power Off

R 2 995.00 ex. VAT R 3 444.25 in. VAT

Details

The MT765 is a 600A AC Clamp Meter incorporating an Infrared Thermometer. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30⁰C to +350⁰C, plus there is a K-Type thermometer input for measurements up to 1000⁰C. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative Mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.



Specifications:

Function Range Resolution Accuracy
AC Current 0.1A – 600.0A 10mA ± (2.5% + 8 Digits)
DC Voltage 0.1mV – 1000V 1mV ± (0.8% + 5 Digits)
AC Voltage 0.1V – 1000V 1mV ± (1.5% + 5 Digits)
Resistance 0.001Ω – 60.00MΩ 0.1Ω ± (2.0% + 5 Digits)
Frequency 0.001Hz – 9.999kHz 1mHz ± (1.5% + 6 Digits)
Capacitance 0.001nF – 99.99mF 0.1nF ± (4% + 6 Digits)
Temperature K-Type -20 to 1000°C 0.1°C ± (3°C + 3 Digits)
IR Temperature D:S 4:1 -30.0 to 350.0°C 0.1°C ± (2°C + 2 Digits)
Duty Cycle 20.0% to 80.0% 0,1% ± (1.2% + 5 Digits)
True RMS Measurements ACV, ACA
AC Bandwidth 50 – 1000Hz
Digital Display 6000
Bargraph Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Continuity Yes
Diode test Yes
Jaw size 33mm
Input impedance >10MΩ DCV & >10MΩ VAC
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Double injection moulding
Low battery indication Yes
Power source 3 x LR03
Weight 350g
Dimensions 239 x 66 x 44mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Accessories:

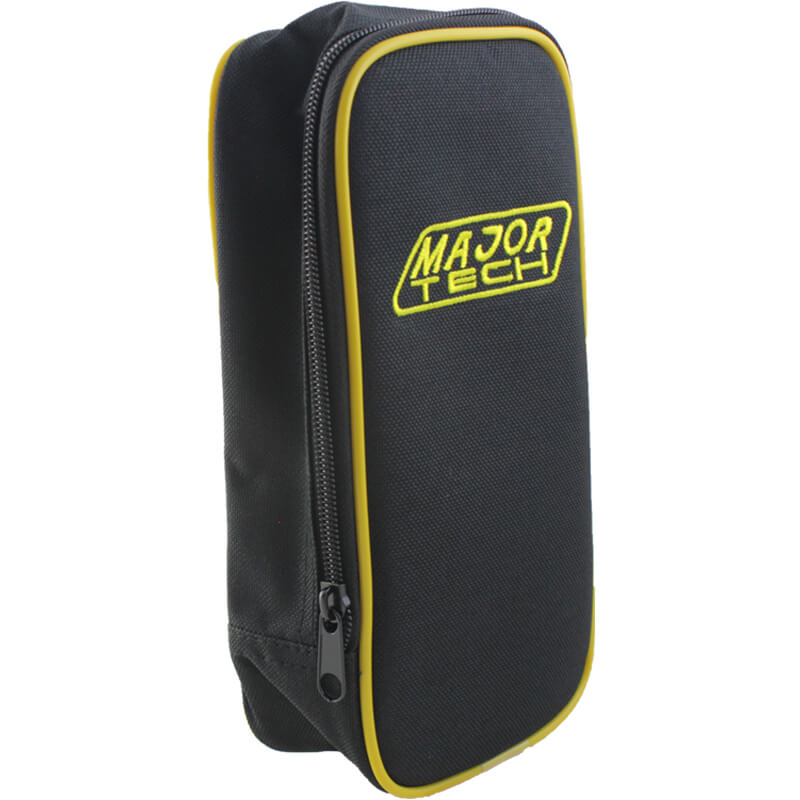

  • Carrying Case

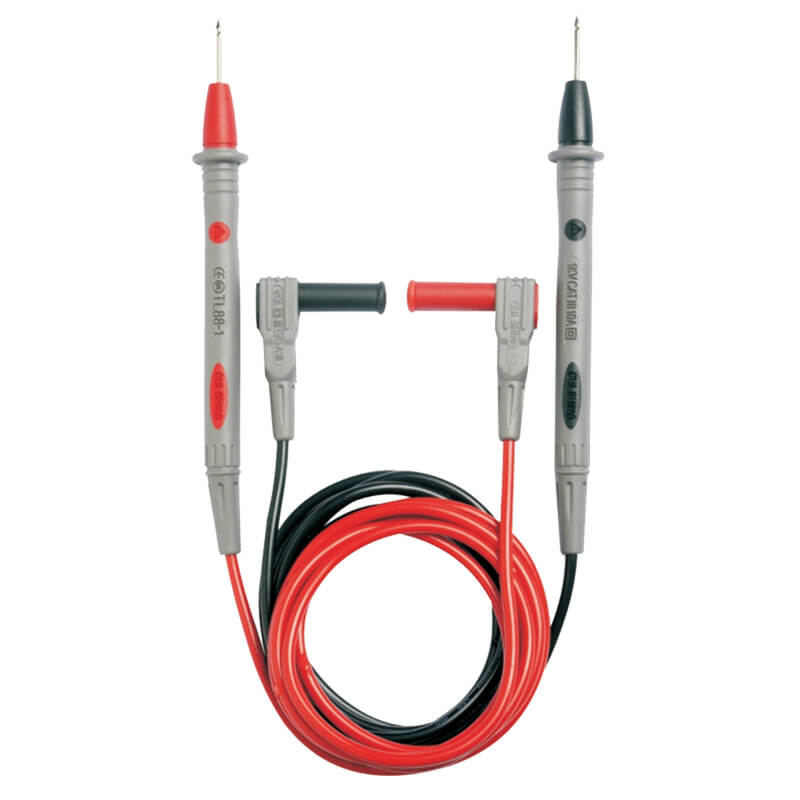

  • ComfiGrip Test Leads

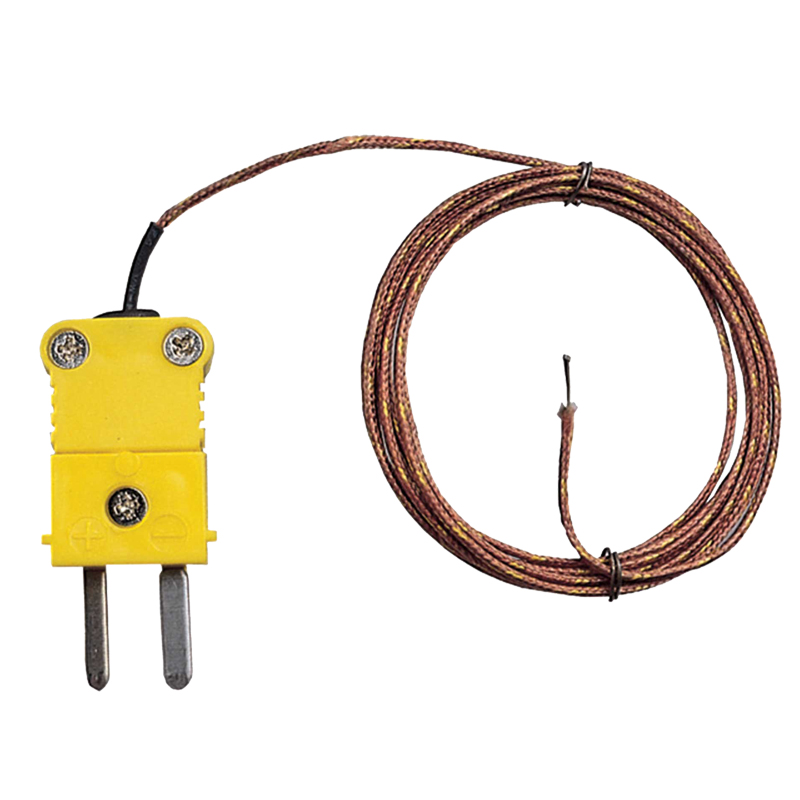

  • K-type Probe

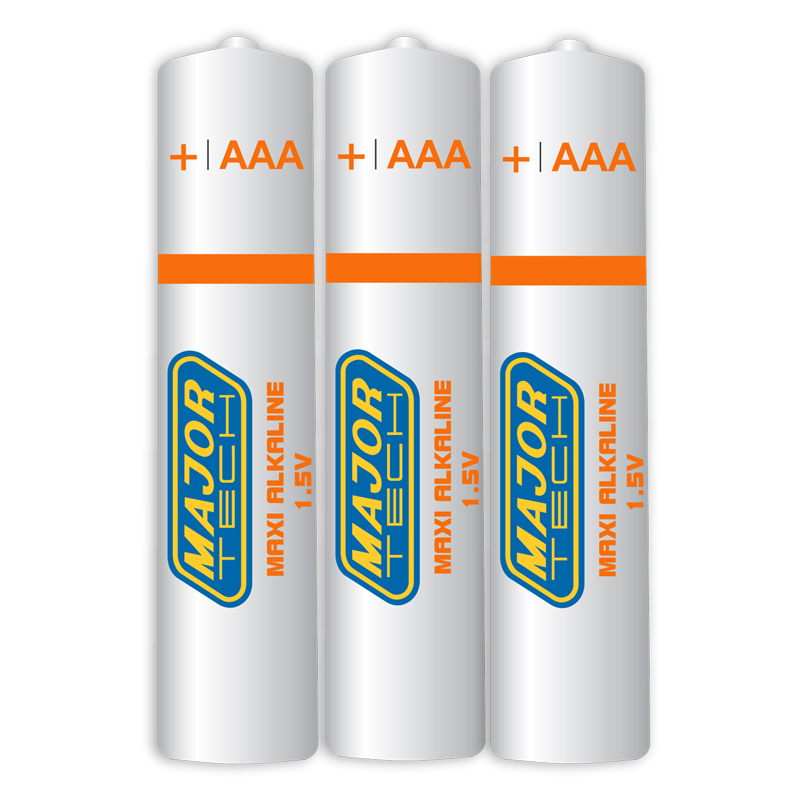

  • 3 x AAA Batteries
  • Instruction Manual
