6-In-1 Environmental Multimeter

SKU: MT1875

  • 6-in-1 multifunction meter with environment measurement
  • Fully functional DMM with ACV, DCV, ACA, DCA, Ohms, frequency,
  • Capacitance and Duty Cycle
  • Continuity Buzzer and Diode Test
  • Non-contact voltage detector
  • LUX Meter measurement to 40,000 lux
  • Indoor: Humidity range from 25% to 95% RH (0.1%)
  • Indoor: Temperature from – 20°C to 50°C
  • Sound level measurement to 110dB
  • 4000 Count digital display with backlight
  • Data hold and relative function
  • CAT III 300V and CAT II 600V

R 2 580.00 ex. VAT R 3 225.00 R 2 967.00 in. VAT
Add to Cart

Details

The MT1875 is a 6-in-1 Digital Multimeter with Environmental Measurement. It has been designed to combine the functions of Sound Level, Light Meter, Humidity, Temperature and non contact voltage detector all in one meter. Sound level can be used in factories, schools, offices and homes, checking acoustics of studios, auditoriums and hi-fi installations. Light meter is fully cosine corrected for the angular incidence of light. Temperature is measured via a K-Type thermocouple. The DMM function includes AC volt, DC volt, AC current, DC current, Resistance, Capacitance, Frequency and Duty Cycle.

Specifications:

Function Range Resolution Accuracy
DC voltage 0.1mV – 600V 0.1mV ± (1.0% + 4 Digits)
AC voltage 0.1mV – 600V 0.1mV ± (1.0% + 4 Digits)
DC Current 0.1μA – 10A 0.1μA ± (1.0% + 2 Digits)
AC Current 0.1μA – 10A 0.1μA ± (1.2% + 2 Digits)
Duty Cycle 0.1 to 99.90% 0,10% ± (1.2% + 2 Digits)
Resistance 0.1Ω – 40.00MΩ 0.1Ω ± (1.5% + 2 Digits)
Frequency 0.001Hz – 10.00MHz 0.001Hz ± (1.2% + 3 Digits)
dB Measurements 35-110dB 0.1dB ± (5.0% + 10 Digits)
Capacitance 10pF – 100.0μF 10pF ± (3.0% + 5 Digits)
Temperature -20°C to 750°C 1°C ± (3.0% + 5 Digits)
Humidity 33% RH -99% RH 1%RH ± (3.0% + 5 Digits)
Lux 4000-40,000Lux 1Lux ± (5.0% + 10 Digits)
AC Bandwidth 50Hz to 400Hz
Digital Display 4000
Continuity Yes
Diode test Yes
Non-Contact Voltage (NCV) Yes
Overrange indication Yes
Input impedance >10MΩ VDC & >9MΩ VAC
Data Hold Yes
Enclosure Double moulded
Low battery indication Yes
Power source 6LR61
Weight 355g
Dimensions 170 x 78 x 48mm
Safety Specs IEC61010-1 CatIV 600V

Safety Rating

Accessories:

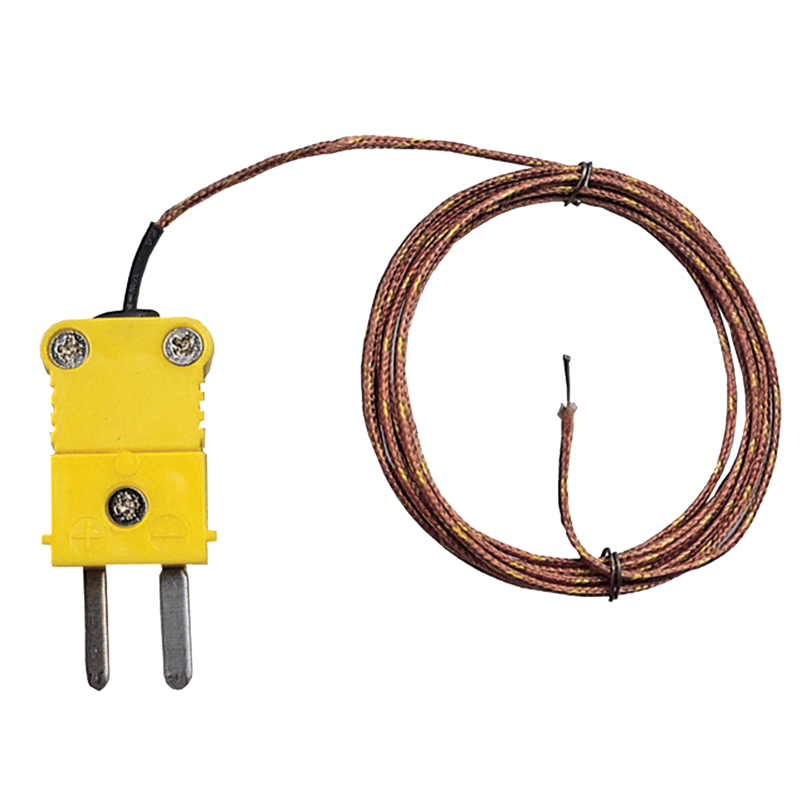

  • Type K Temperature Probe

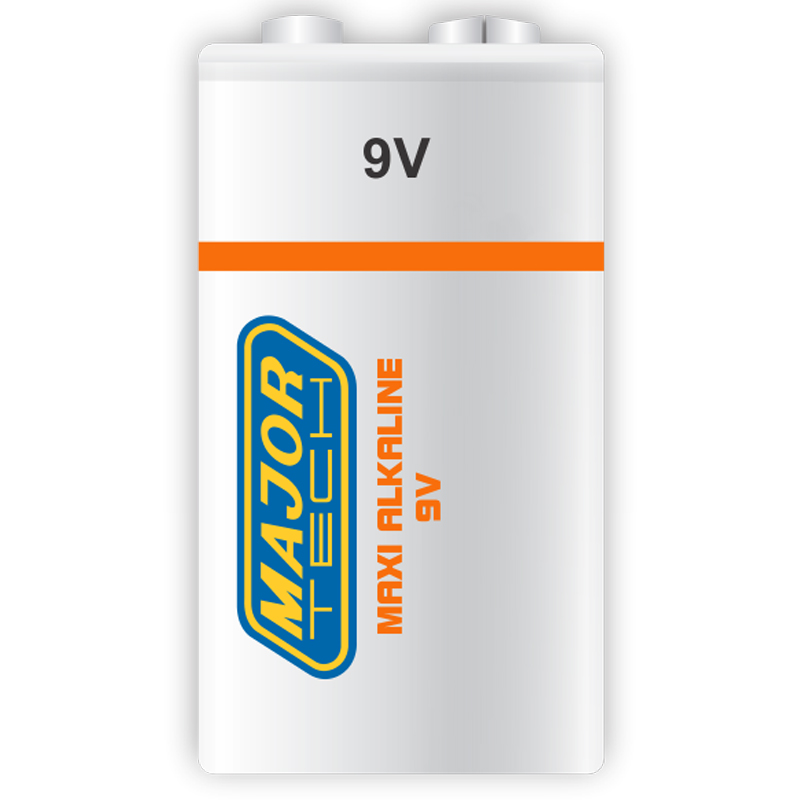

  • 9V Battery

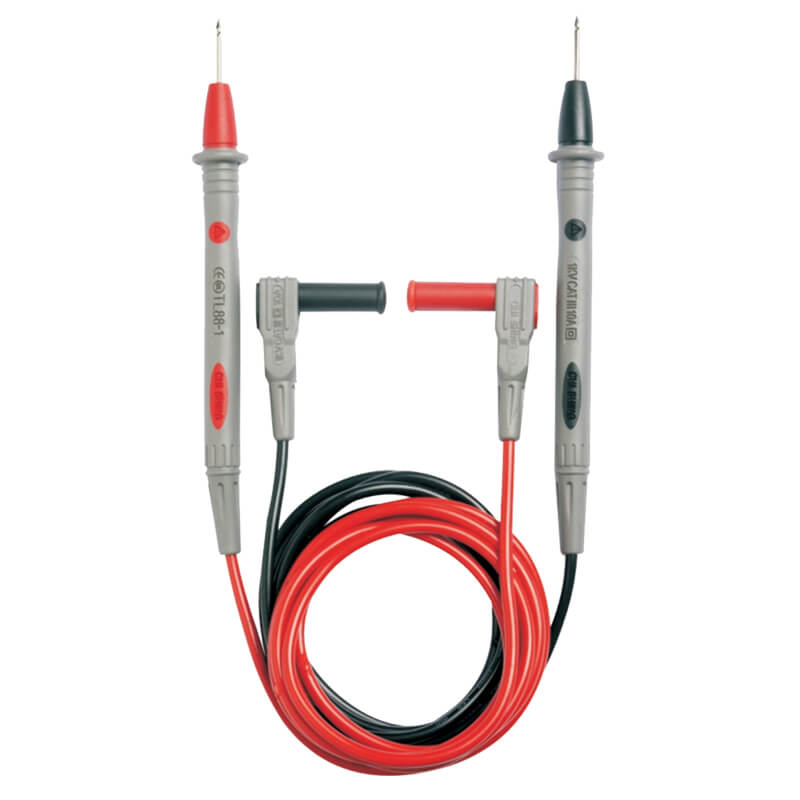

  • MT810 Test Leads
  • Instruction Manual

Optional Accessories:
