Smart Energy Meter and Timer

SKU: MTS21

  • Provides in-depth analysis of energy consumption via the smart app
  • Displays Voltage, Current, Active Power, Power Factor and Frequency
  • Load Protection – the app can be set to alert and trigger an automatic device shutdown
  • Din Rail Compatible (35mm)
  • Dual Mode: Wi-Fi and Bluetooth
  • The MTS21 and Major Tech Hub App allow you to select a custom date range (up to 2 months) for energy consumption tracking, download the data in Excel format, and easily share it via third-party apps.

R 1 325.00 ex. VAT R 1 523.75 in. VAT

Details

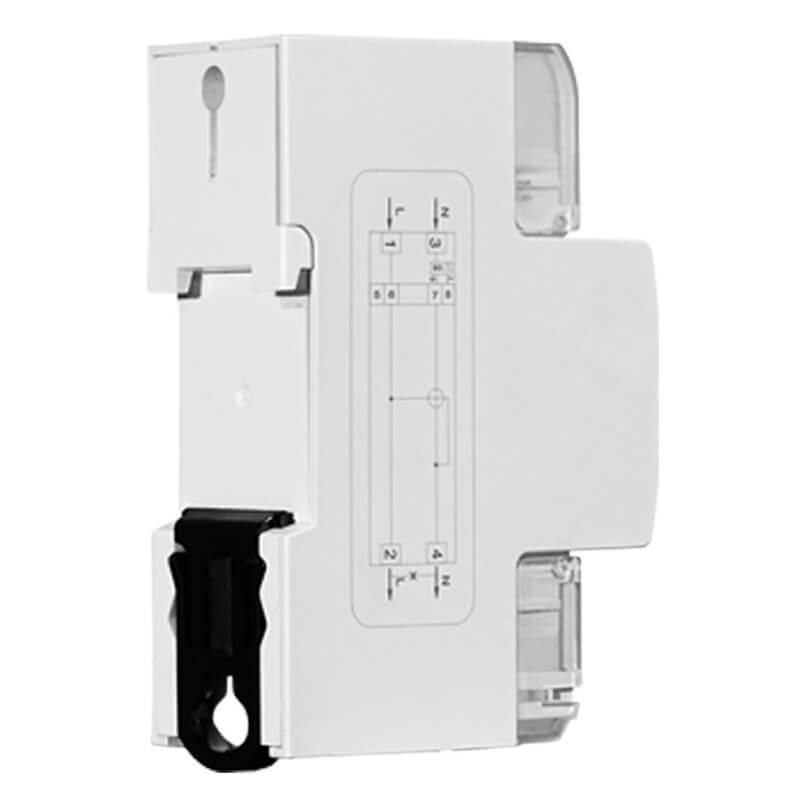

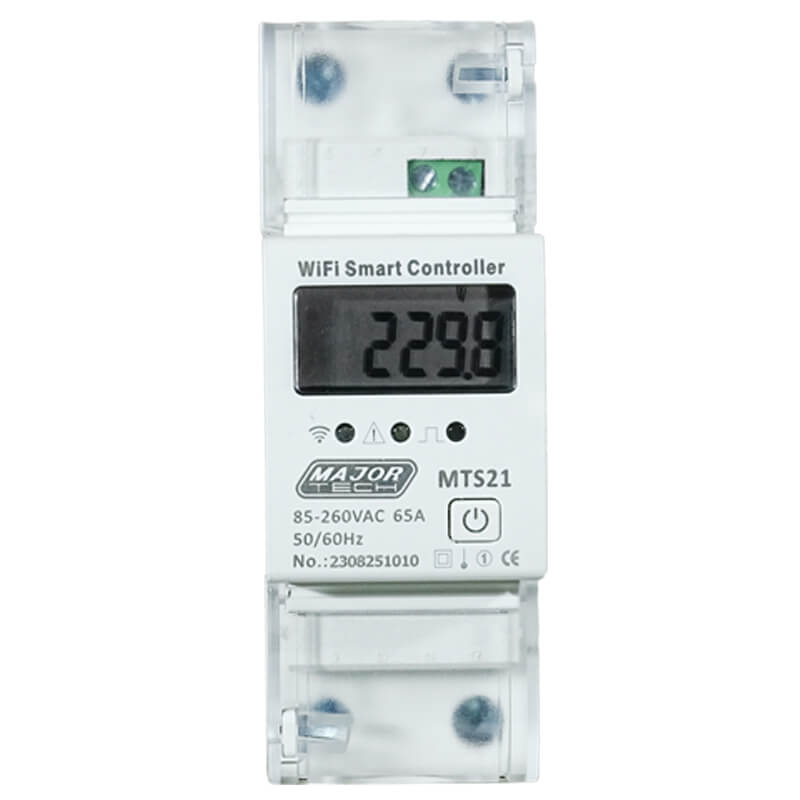

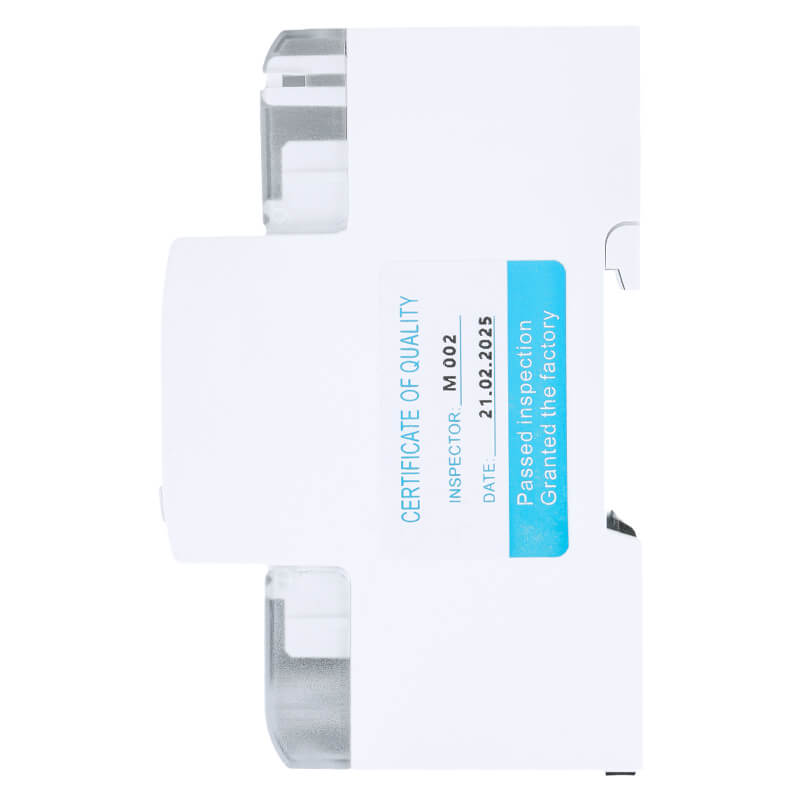

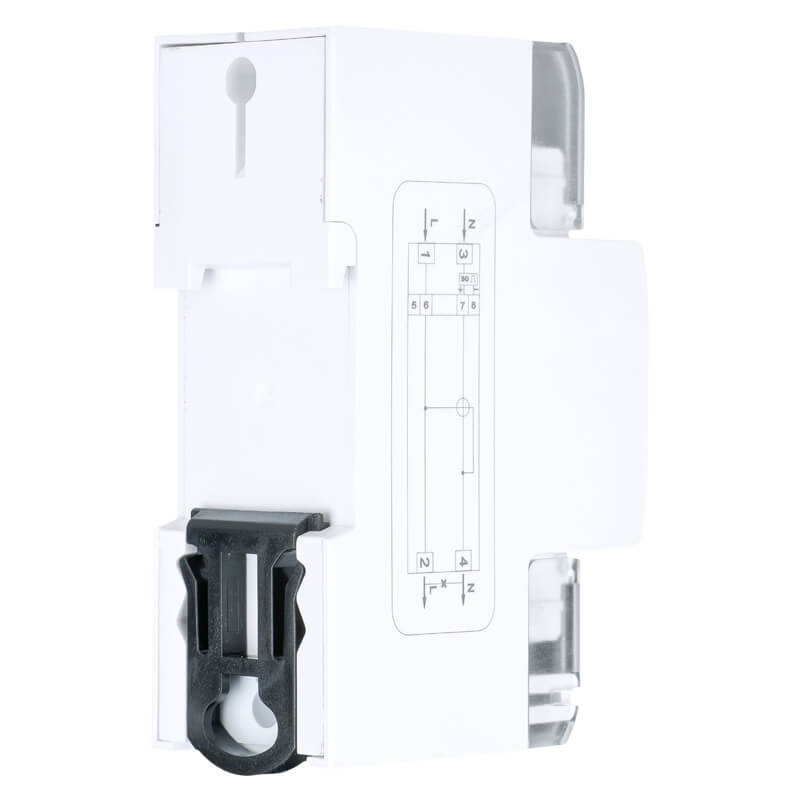

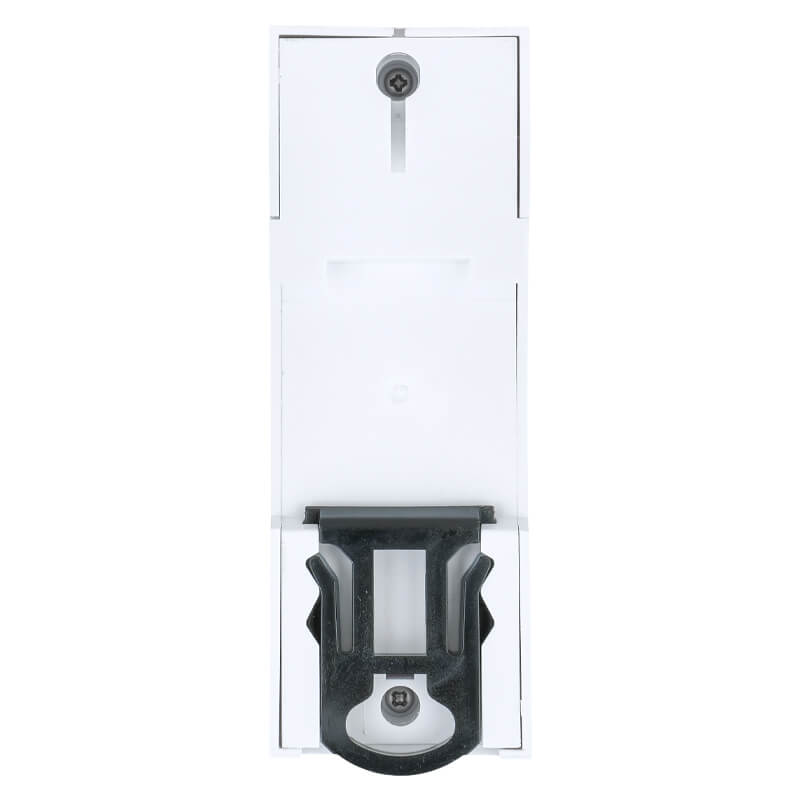

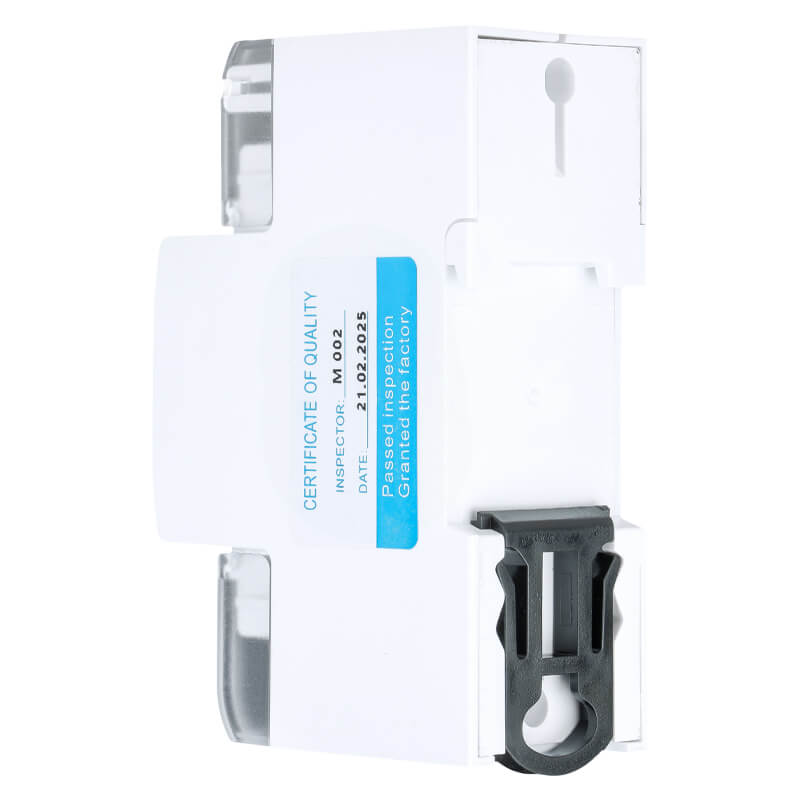

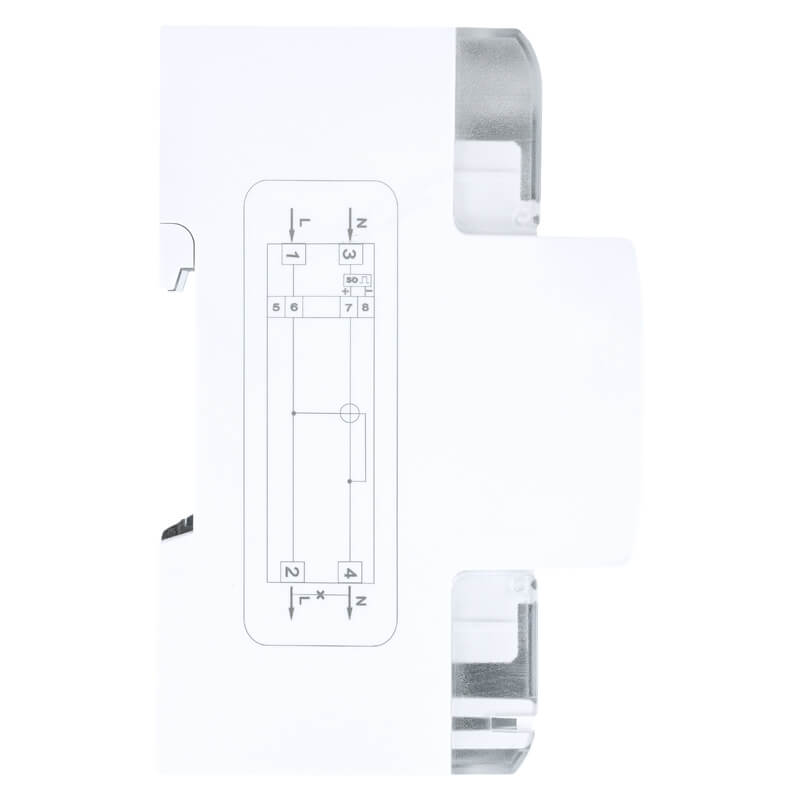

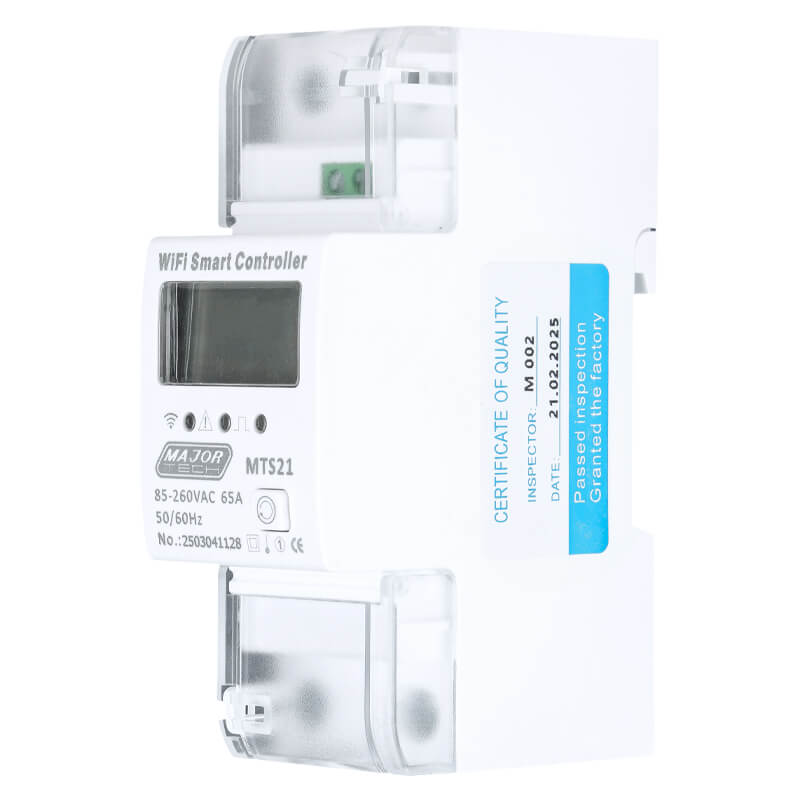

The MTS21 Smart energy meter & timer is specifically designed to measure active and reactive energy for single-phase two-wire systems and various parameters. This smart device is equipped with Wi-Fi connectivity, allowing users to utilize the free “Major Tech Hub” Smart App for remote monitoring and control. It adheres to Wi-Fi 802.11b/g/n standards for seamless data communication. When installing the smart device, ensure that this is done by a qualified professional in accordance with South African regulations and making sure it is placed in an appropriate environment with an ambient temperature range of -25°C to 55°C. The relative humidity should be kept below 75%. The manufacturing of this device aligns with international standards, including IEC62052-11 for General Requirements for Electricity Metering Equipment (AC) and IEC62053-21 for Static meters/timers for Active Energy (Classes 1 and 2). With the MTS21 and Major Tech Hub App, you can easily track your energy consumption by selecting custom date ranges to view data for any specific period. Whether you want to monitor your usage over several days or 2 months, the app provides the flexibility to tailor your insights. Plus, you can download your energy consumption data in Excel format for further analysis or share it seamlessly via third-party apps. Stay on top of your energy habits with the ability to track both daily usage and any custom date range that fits your needs.

Specifications:

Function Range
Rated Frequency 50/60 Hz
Rated Current 65A
Power 9600W (Resistive Load)
Rated Voltage 110V/220V
Voltage Range 90 – 260V
Approvals IEC/SANS / ICASA / LOA
kWh accuracy Class 1
R.M.S accuracy Class 0.5
Current circuit <1.5VA
Voltage circuit <2W/8VA
Starting Current 0.004Ib(20mA)
LCD 99999.9kWh
Operation Temp. -25°C to +55°C
Bluetooth Version 5.2
