Power Quality Analyser

SKU: K6315

  • The perfect tool for energy saving and power quality control
  • Simultaneous Power & Power quality measurements Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)
  • Helpful support functions - Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement
  • Measurement with high accuracy Guaranteed accuracy: ±0.3%rdg (energy), ±0.2%rdg (voltage/current)
  • Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160
  • Remote monitoring on PC and Android device
  • Remote checking of measurement in real-time is possible via Bluetooth communication.
  • Recorded data can be saved in the supplied SD card.
  • EN50160 report can be generated after survey by PC software.
  • Various Clamp Current Sensors - Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements
  • Energy consumption check on site - Trend and demand graphs for easy recognition. TFT color display with high resolution.
  • IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

R 89 250.00 ex. VAT R 102 637.50 in. VAT
Request a Quote

Details

Easy-to-use settings that simultaneous record of power & power quality measurements in one survey. Major Tech’s Power Quality Analyser are the perfect tools for measuring energy and power control. The K6315 measures Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cosꝊ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance calculation for PF correction unit, Flicker.

Specifications:

Function Range Resolution Accuracy Allowable Input  Display Range  Crest Factor
Voltage (RMS) 600.0/1000V 0.1V ±(0.2% ±0.2%)f.s.(sine wave,40-70Hz) 1-120% of each range (rms). 200% of each range (peak) 0.15-130% of each range 3 or less
Current (RMS) 100mA-3000A depending on CT selection 100mA ±(0.2% ±0.2%)f.s. +accuracy of clamp sensor (sine wave,40-70Hz) 1-120% of each range (rms). 200% of each range (peak) 0.15-130% of each range 3 or less
Frequency Range 40-70Hz
Wiring connections 1P2W, 1P3W, 3P3W, 3P4W
Measurements and Parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power , Active energy, Reactive energy, Apparent energy, Power factor (cos?), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption/Transients/Over voltage, Inrush, Unbalanced rate), Capacitance caluculation for PF correction unit, Flicker.
Other functions Digital Output function, external communication function, scaling function
Sampling Speed 2.4μs
Power source AC AC100-240V/ 50/60Hz/ 7VA max
Power source DC 6 x LR6 or Ni-Mh, Batt Life ±3hrs
Internal Memory Flash Memory (4MB)
PC Card Interface SD Card (2GB)
PC Communication USB Ver2.0, Bluetooth Ver 2.1 EDR Class2
Display Range 0.15-130% of each range
Display update period 1 second
Enclosure Rubber Overmold casing
Weight  900g
Dimensions 175 x 120 x 68mm
Safety Specs IEC 61010-1 Cat IV 300V
Included Accessories 7141B (Voltage test lead), 7170 (power cord), 7219(USB Cable), 8326-02 (SD Card 2GB), 9135 (Carry Case), Input terminal plates x 6, Kew windows, Calibration cert, quick manual 6 x LR6 batteries

Safety Rating

Warranty

Accessories:

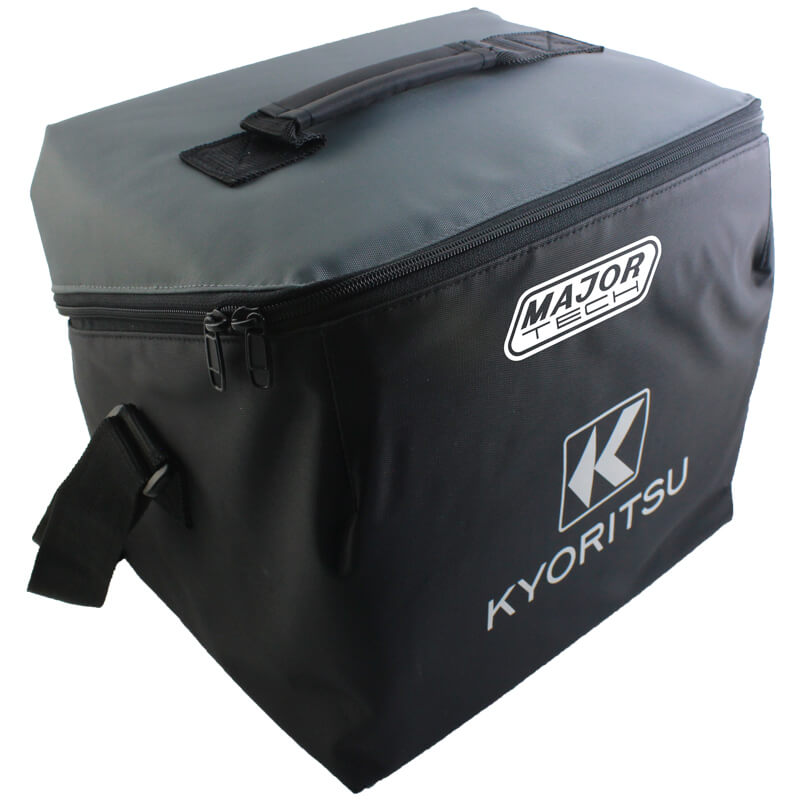

  • Carrying case
  • AA Batteries
  • Test leads
  • Instruction manual
  • Charger
  • Software
  • USB Cable
  • 2GB SD Card
  • COC
