Loop Impedance and PSC Tester

SKU: MT350

  • CAT III 600V and CAT II 1000V
  • Custom microprocessor controlled for highest accuracy and reliability
  • Loop Range 2000ꭥ
  • PSC/PFC 20kA
  • Voltage 255V
  • Frequency 50Hz
  • Test Current 25A
  • Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
  • Automatic Lock-Out if Test Resistor Overheats
  • Direct readout of Prospective Short Circuit Current and Earth Fault Current
  • Measures low loop impedance of 0.01Ω
  • 3 LED’s for checking correct wiring status
  • Safe voltage measurement function
  • Visual indication of reversed phase and neutral at wiring socket
  • Double injection rubber housing

R 5 250.00 ex. VAT R 6 037.50 in. VAT

Details

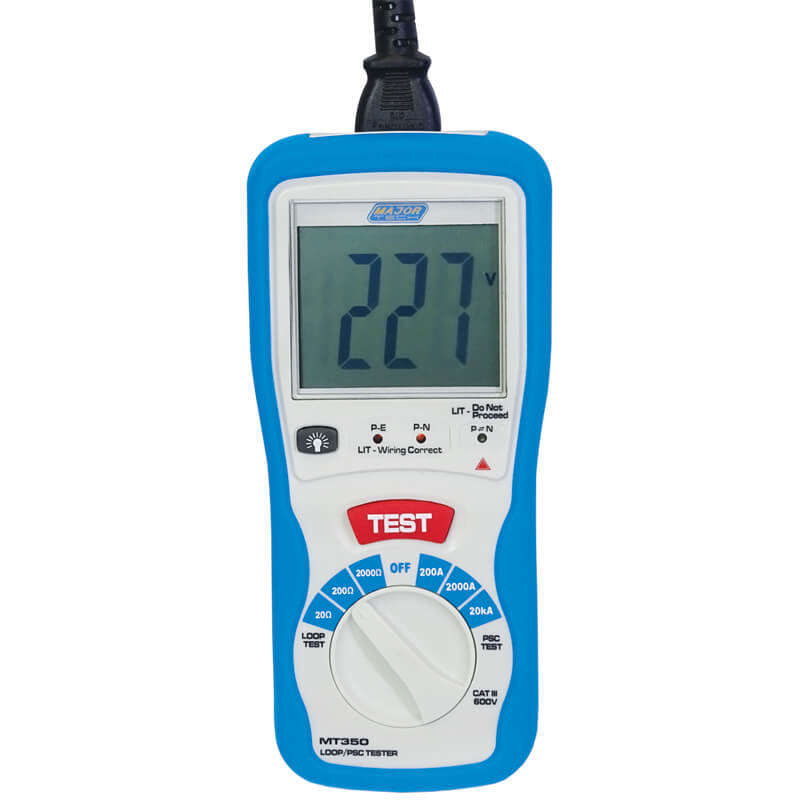

The MT350 is a handheld microprocessor controlled Loop Impedance and PSC Tester, which includes 3 loop impedance measuring ranges capable of measurements from any point in the installation for comprehensive testing of distribution systems. The MT350 gives a direct readout of PSC and earth fault current to a maximum of 20kA in 3 measuring ranges. Other features include 3 LED’s for checking the correct wiring status of the circuit under test and the automatic lockout if the resistors overheat. The meter is supplied in double injection rubber housing.

Specifications:

Function Range Resolution Accuracy
Loop Range 20,200,2000Ω 0.01Ω ± (2% + 5 Digits)
PSC/PFC 2000A/20KA 0.1A ± (2% of F.S + 5 Digits)
Voltage 50-255V   ± (2% of F.S + 5 Digits)
Frequency Response 50Hz
Test Current 25A
Display LCD
Enclosure Double injection moulded case
Low battery indication Yes
Power Source 6 x AA
Weight 700g
Dimensions 200 x 92 x 50mm
Safety Specs IEC61010-1 CAT III 600V

Safety Rating

Accessories:

  • Carrying Case

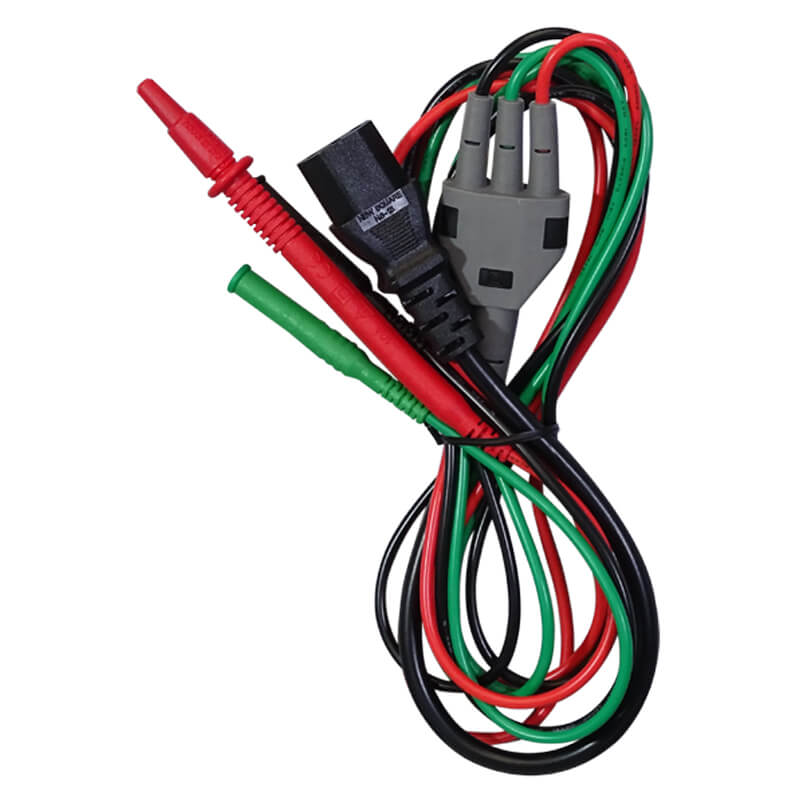

  • Distribution Board Test Leads

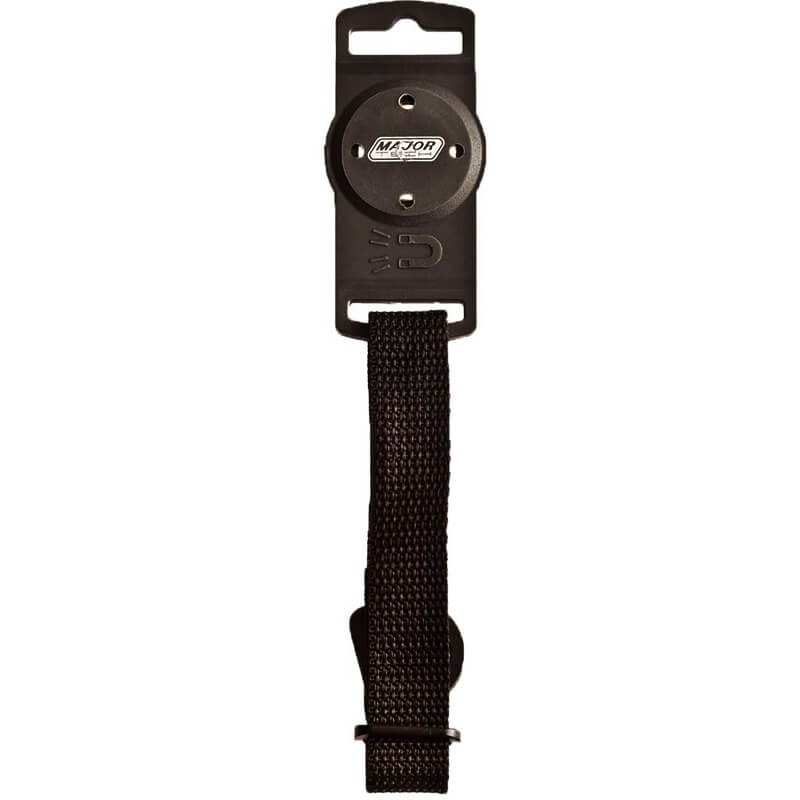

  • Magnetic Strip

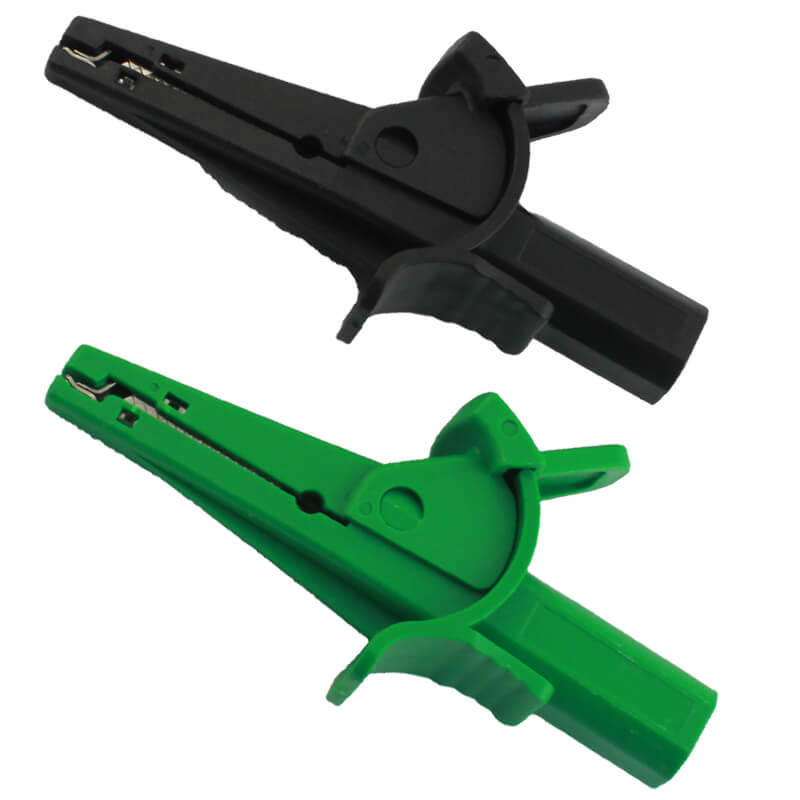

  • Croc Clips

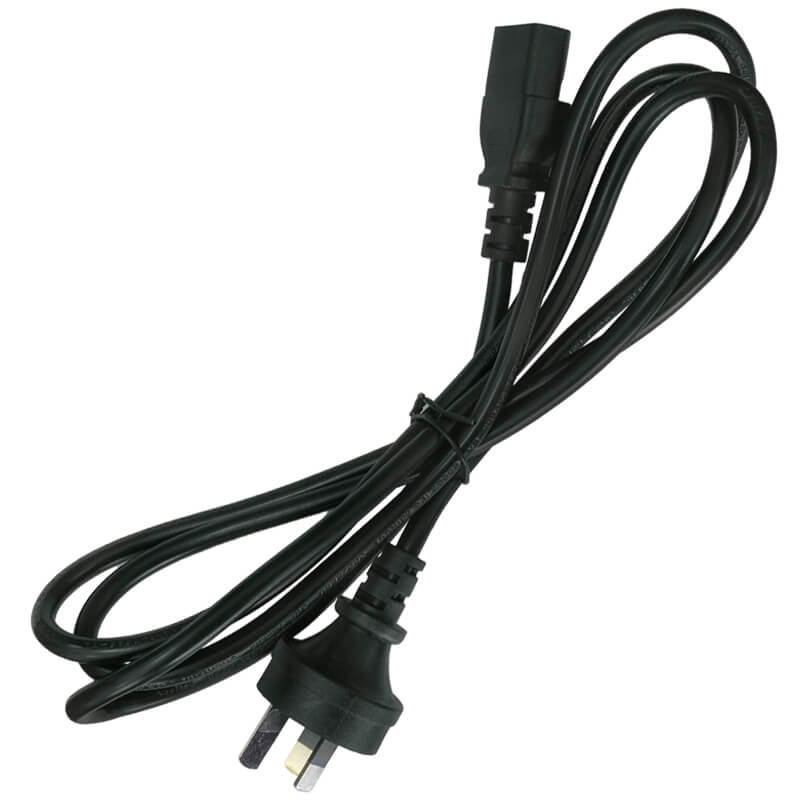

  • Plug Cord with IEC Connectors

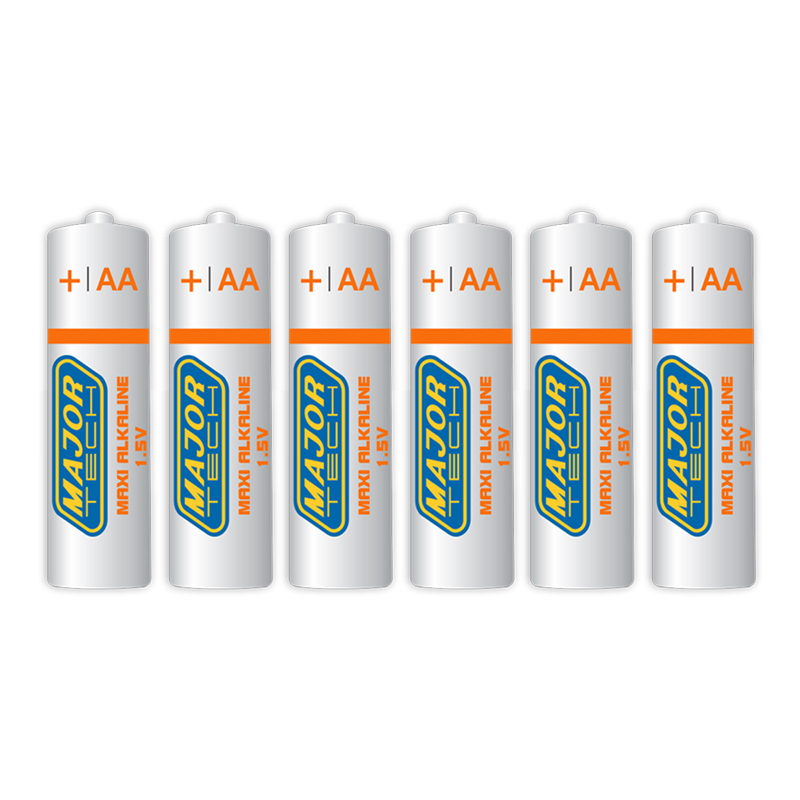

  • 6 x AA Batteries
  • Instruction Manual
