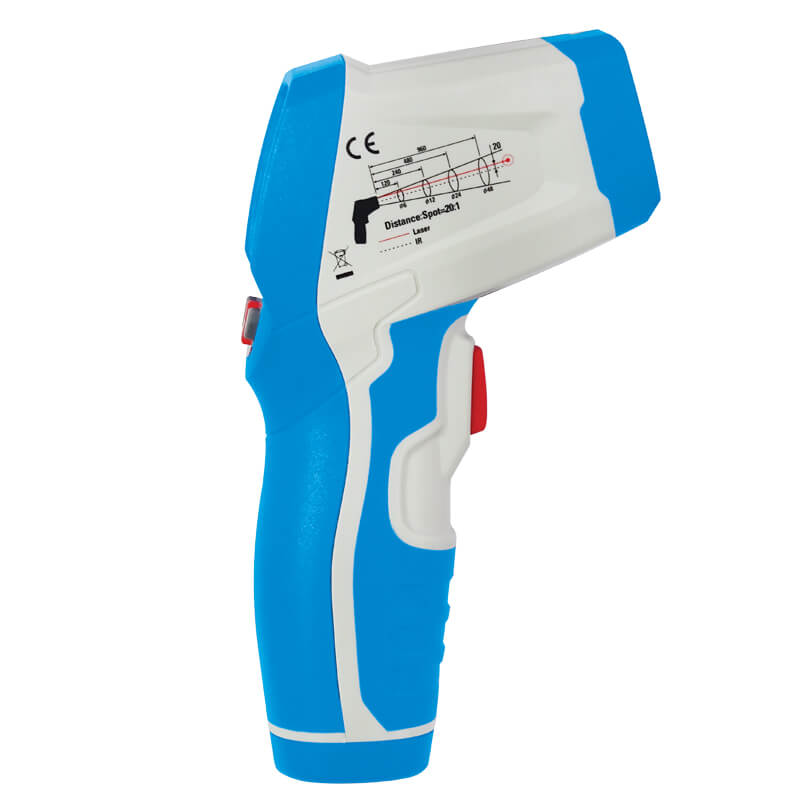

Infrared Thermometer with Multipoint Laser

SKU: MT694

  • Spot Ratio 20:1
  • Temperature -50⁰C to +1000⁰C
  • Response time 150ms
  • Adjustable emissivity from 0.10 to 1.0
  • Circular laser sighting
  • Selectable ⁰C or ⁰F
  • Automatic Data Hold
  • MIN, MAX, AVG and DIF temperature displays
  • Set High and Low alarms

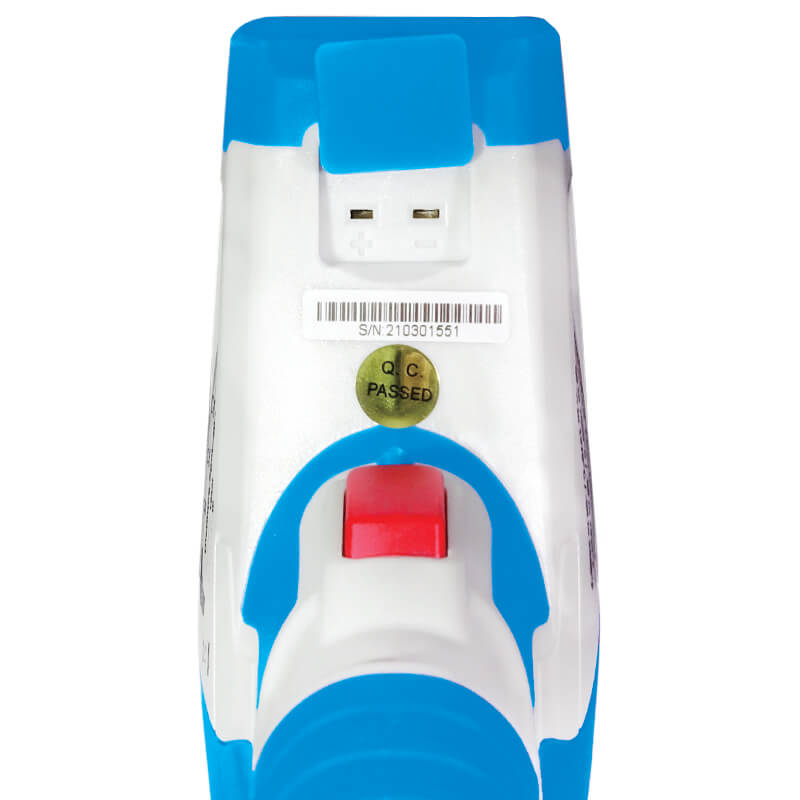

  • Type-K input
  • Automatic selection range and Display Resolution

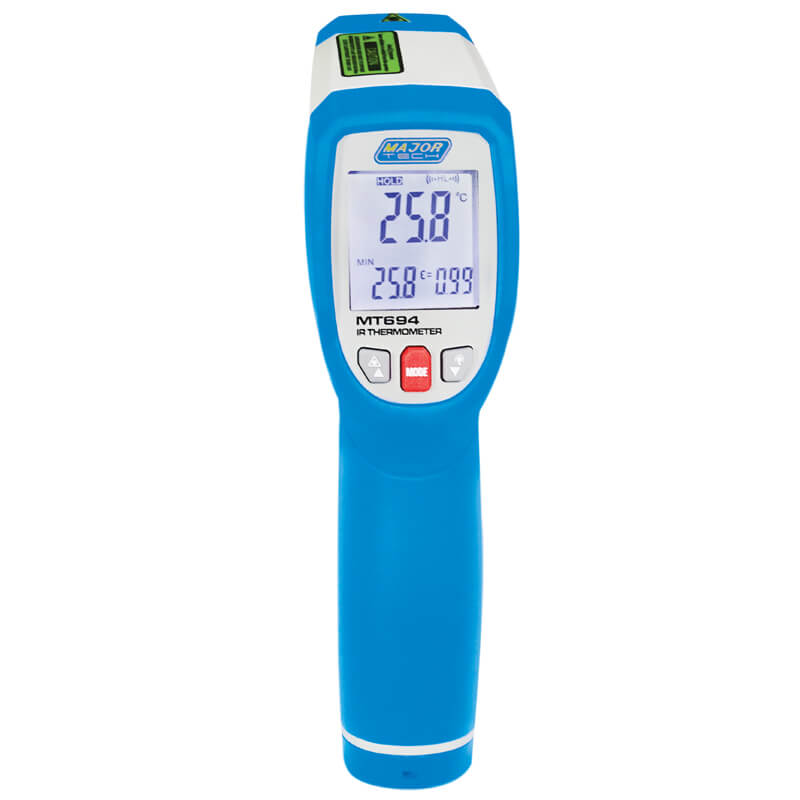

  • Backlit LCD display
  • 2 meter drop tested
  • IP54 Splash Proof & Dust Resistant
  • Auto Power Off

R 2 455.00 ex. VAT R 2 823.25 in. VAT

Details

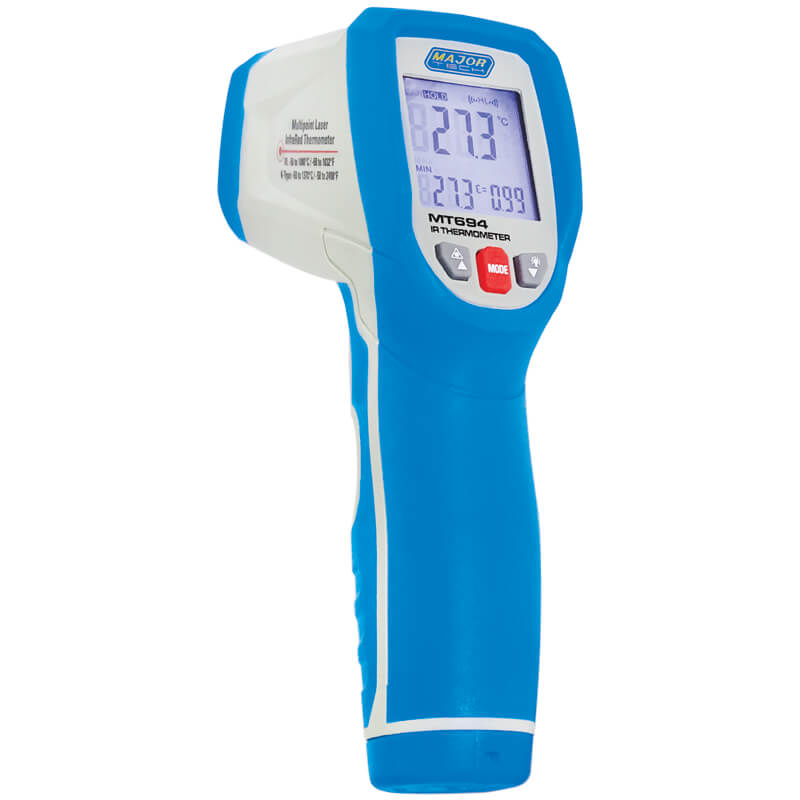

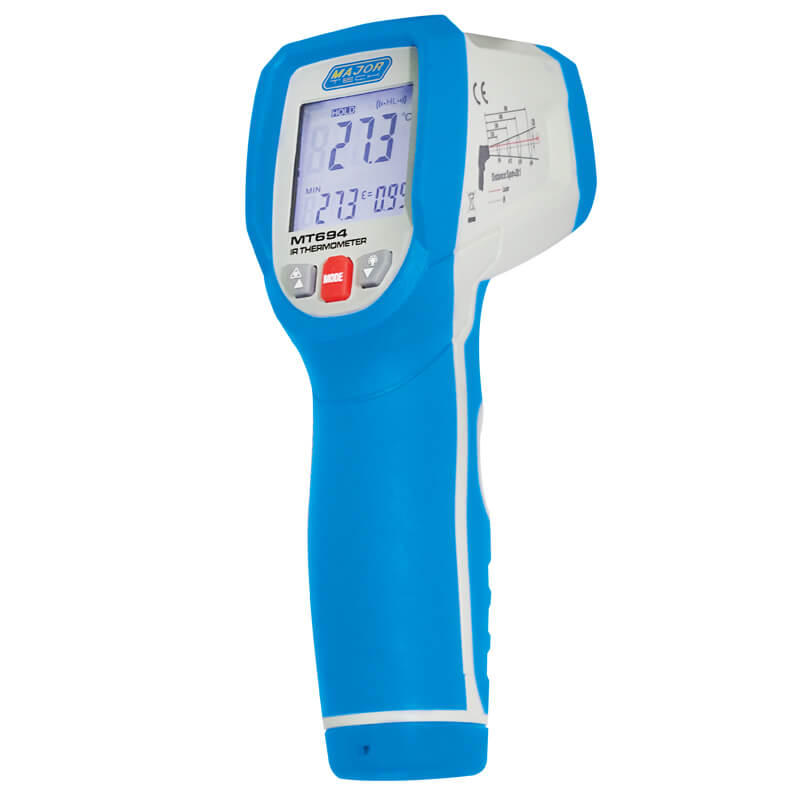

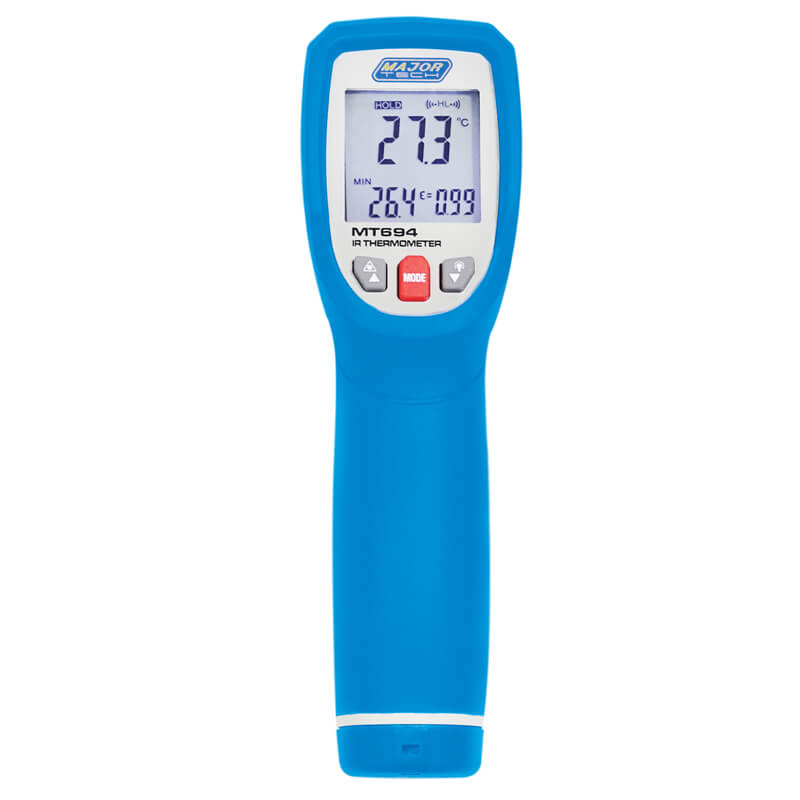

The MT694 is a 1000°C Multipoint Laser Infrared Thermometer small and compact pistol grip type which can provide fast and accurate readings for most surface temperature measurements due to its sampling rate of 150 milliseconds. The distance to spot ratio is 20:1 and the temperature range is from -50°C to 1000°C. This meter features a multipoint laser which increases the target accuracy when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.1 to 1.0, external Type-K temperature measurements, response time 150mS, max hold, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.

Application:

  • Mechanical / Electrical Equipment
  • Measuring temperature of patients in a hospital without touching them
  • Checking heater or oven temperature for calibration and control
  • Checking for hot spots in fire-fighting
  • Monitoring materials in processes involving heating or cooling

Specifications:

Function Range Resolution Accuracy
Infrared Temperature Range -50°C - 1000°C 0.1°C ± (1% ± 1°C)
Type-K Temperature Range -50°C - 1350°C 0.1°C ± (0.5% ± 1.5°C)
Spectral Response 8 to 14um
Display LCD Display
Spot Ration 20:01
Adjustable Emissivity 0.10 - 1.0
Laser Targeting Multi Point
Min/Max/Diff/Ave Yes
Hi/Low Alarm Yes
Back Light Yes
Enclosure Moulded IP54
Low Battery Indication Yes
Batteries 2 x AAA
Weight  248g
Dimensions 170 x 50 x 90mm

Accessories:

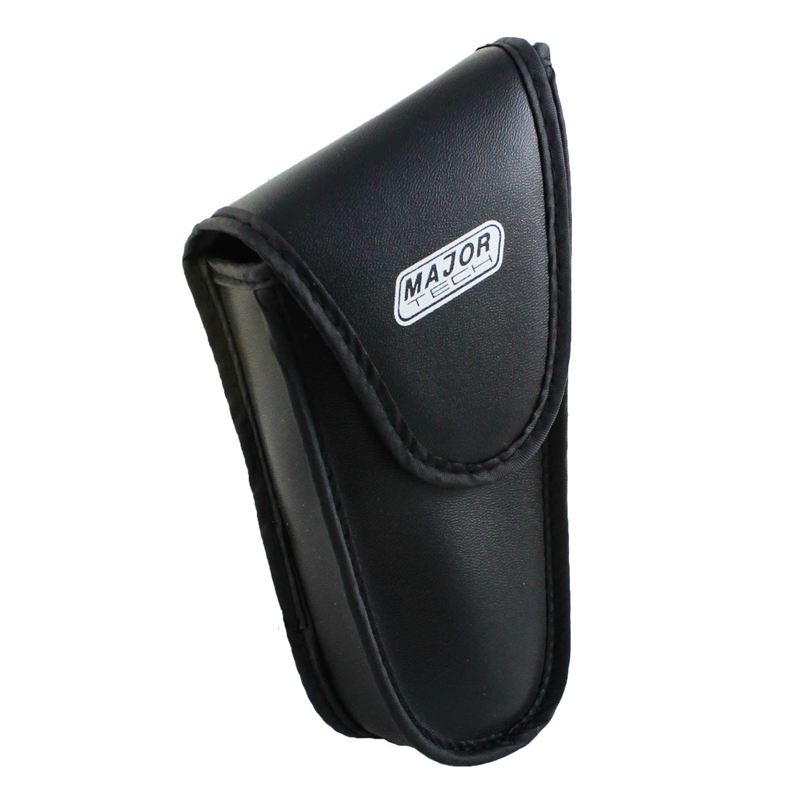

  • Carrying Case

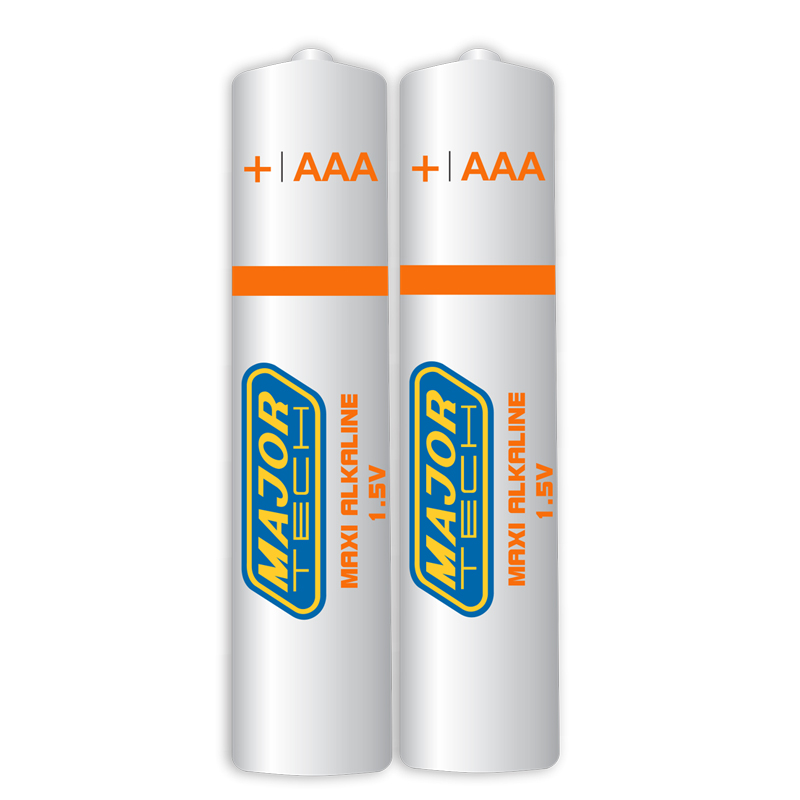

  • 2 x AAA Batteries
  • Instruction Manual

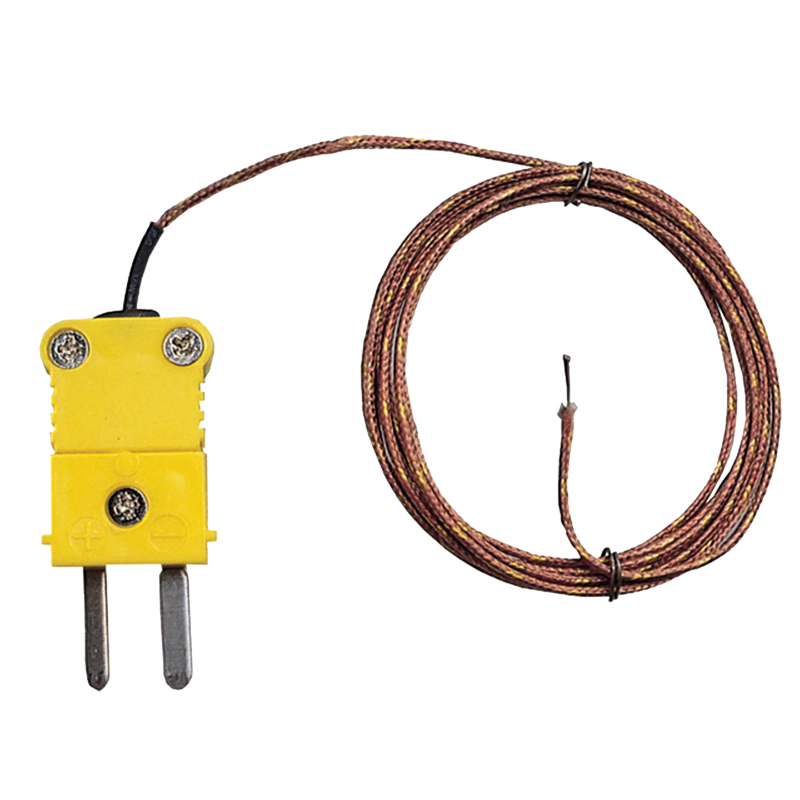

  • Type-K Probe
