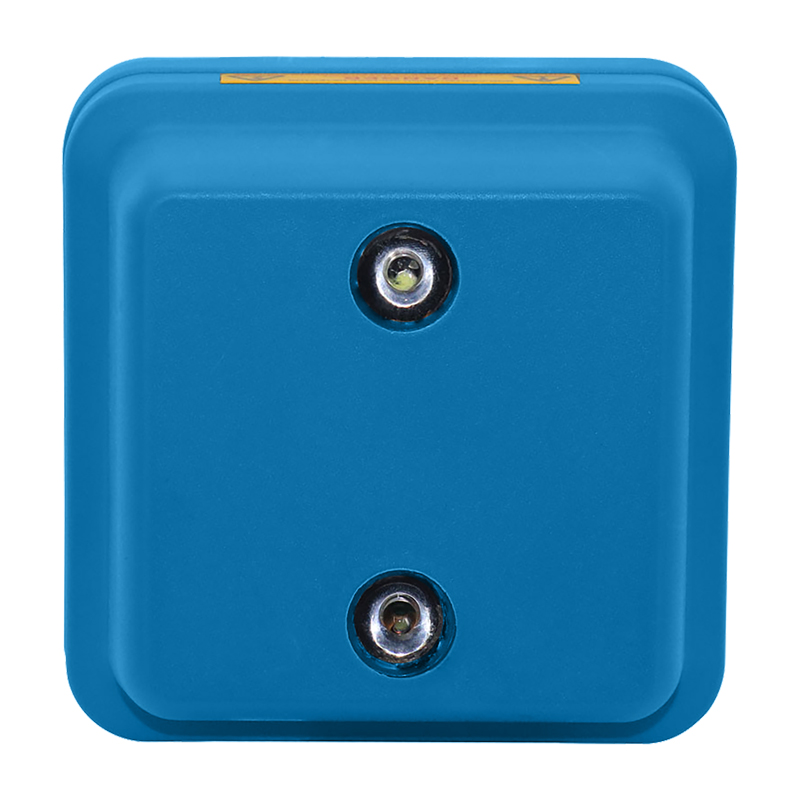

High Voltage Proximity Detector

SKU: MT275

  • 10 voltage settings from 240V to 500kV
  • Bright LED visual indication and Audible indication
  • AC voltage detection from 240V to 500kV
  •  Wide 120⁰ angle for voltage detection
  • Non-contact detection by proximity
  • IP65 waterproof housing
  • Easy-to-prove method
  • Compatible with most hot sticks
  • Suitable for indoor and outdoor use
  • High impact nylon casing
  • Built-in Flashlight
  • Self-test function
  • Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

R 6 415.00 ex. VAT R 7 377.25 in. VAT

Details

The MT275 is a High Voltage Proximity Detector that has 10 voltage settings from 240V AC to 500kV AC. The MT275 provides a wide 120⁰ angle for non-contact detection with an internal pickup sensor plate that senses the radiated field which surrounds live conductors, the field strength increases with voltage and decreases quickly with distance or earthing shields. When testing for high kilo voltages the MT275 can be used in conjunction with long insulating link sticks or hot sticks. There is a built-in self-test range to verify the detector is in working order.

Specifications:

Function  Range
Non-Contact Voltage (NCV) Yes
AC Voltage 240V, 3.3KV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV, 330kV, 500kV
Frequency 40 – 70Hz
Voltage Detector Visual Hi bright red LED
Voltage Detector Audible High noise level buzzer
Power On Indicator Self-test selection
Flash Light Yes
Enclosure Moulded IP65
Batteries 3 x C
Dimensions 255 x 96mm
Weight 531g
Safety Specs EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8

Safety Rating

Accessories:

  • Carrying Case
  • 3 x C Batteries
  • Instruction Manual
