Earth Clamp Tester

SKU: MT332

  • Easy Earth/Ground resistance measurement
  • Earth Resistance range from 0.001Ω to 1200Ω
  • Current range from 0.01mA to 20A
  • Displays resistance and current simultaneously
  • Quick self-test function
  • Fast filtering technology minimises strong interference
  • Data storage of 300 sets
  • Alarm when the measured value is greater that set alarm threshold
  • NOISE symbol when ground loop under test has interference current
  • AC injection method measurement
  • Large capacity lithium battery charging
  • USB interface for linking to computer
  • Bluetooth function allows connection to mobile phones
  • Pre-set PASS, WARNING, FAIL judgement thresholds

R 10 500.00 ex. VAT R 12 075.00 in. VAT

Details

The MT332 is a Clamp ground resistance tester, also known as loop resistance tester and is used to test ground resistance. This instrument uses a new black luxury screen design, the resistance current is displayed on the same screen, and it also has functions such as data storage, data review, alarm, and automatic shutdown. . The high grade of the MT247 is a reliable tester with a stable performance and has a wide measuring range, high resolution and accuracy, with strong anti-interference ability. The meter is housed in a shock-proof, dust-proof and moisture-proof structure. It is a common and indispensable instrument suitable for measuring grounding resistance of various telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installation and maintenance, tower transmission lines, gas stations, factory grounding grids, lightning rods and industrial enterprises that use electricity as industrial power or energy. The MT332 is controlled by a microprocessor and can accurately detect ground resistance. It uses fast filtering techniques to minimize interference. Simultaneous data storage and data upload functions.

Specifications:

Function Range Resolution Accuracy
Resistance 0.010Ω-1200Ω 0.001Ω ±(1%+0.01Ω)
Current 0.00mA-20.0A 0.01mA ±(2.5%+1mA)
Ambient Temperature and Humidity 23°C ± 5°C below 75%RH
Power Supply Measurement Method DC 6V (4x AA batteries) Mutual Inductance
Resistor Resolution 0.001Ω
Current Resolution 0.01mA
Jaw Size 55mm x 32mm
Display Mode 4-digit LCD display, black screen design
LCD Size 46mm x 29mm
Meter Size 285mm x 85mm x 58mm
Measure Time 2 times/sec
Data Storage 300 groups
Data Access Yes
Overflow Display Yes
Alarm Function When the measured value exceeds the alarm setting value, an alarm prompt will be issued
Low Battery Indication Yes
Automatic Shut-Down Automatic shutdown after 5 minutes of startup
Power Consumption 50mA Max
Weight Meter: 1180g (including battery)
Working Temperature and Humidity -10°C to40°C below 80% RH
Storage Temperature and Humidity -20°C to 60°C below 70% RH
Insulation Resistance Above 20MΩ (500V between circuit and case)
Pressure Resistance AC 3700V/rms (between circuit and case)
External Magnetic Field <40A/m
External Electric Field <1V/m
Safety Regulations IEC61010-1 (CAT III 300V, CAT IV 150V, pollution degree 2) IEC61010-031, IEC61557-1 (Earth resistance)

Safety Rating

Accessories:

  • Carrying Case
  • Loop Calibrator

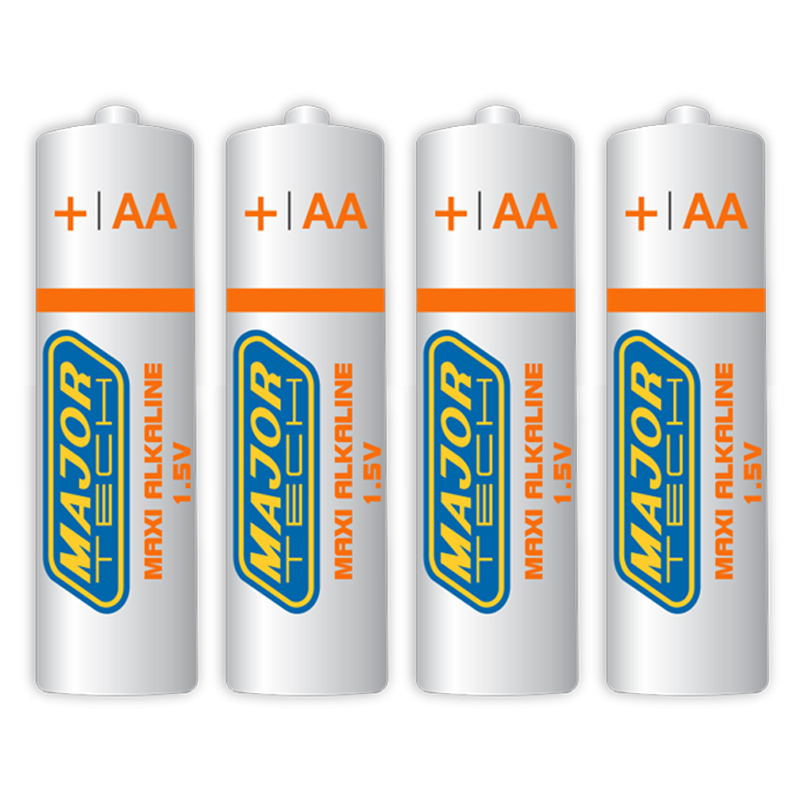

  • 4 x AA Batteries
  • Instruction Manual
