Dual PIR Motion Sensor - IP65

SKU: PIR48

3 – 2000 LUX (Adjustable)
Dual Sensor

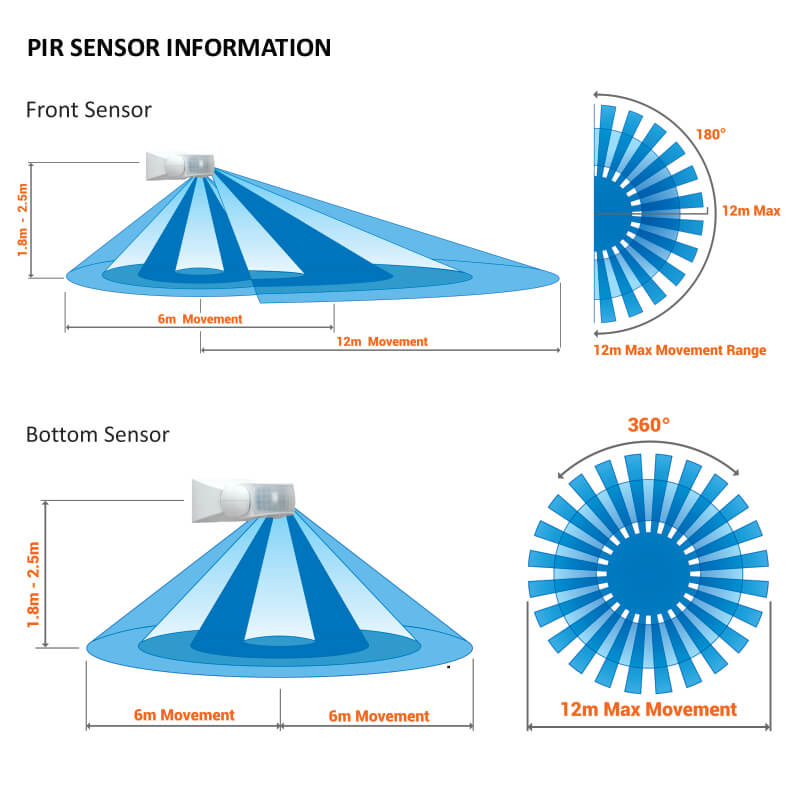

Detection Area
- 360° Bottom Sensor
- 180° Front Sensor
Detection Distance
- 6m Bottom Sensor
- 12m Front Sensor
Automatically turns on lights when motion and body heat is detected

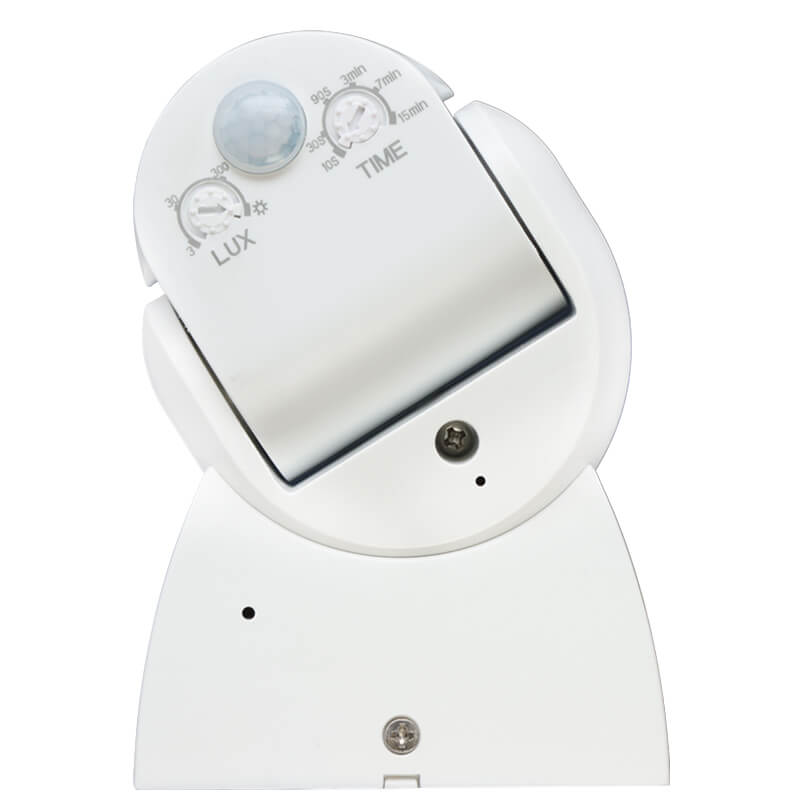

Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 1200W (Incandescent Lamps)
- 600W (LED / CFL)
IP65 Rating - Outdoor & Indoor Installations

Quantity

R 420.00 ex. VAT R 483.00 in. VAT

Add to Cart

Add to wishlist

Details

The PIR48 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has dual PIR Sensors for a 180° detection area in front of the sensor and a 360° detection area directly beneath the sensor. Both sensors and the adjustable settings for time and Lux level, allow the PIR48 to easily integrate into new or existing installations. With an IP65 rating, the sensor is intended for indoor or outdoor installations. Installation must be done by a qualified electrician.

Specifications:

Function	Range
Detection Area Bottom Sensor Front Sensor	360° 180°
Detection Distance Bottom Sensor Front Sensor	6m 12m
Detection Motion Speed	0.6 to 1.5m/s
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	1.8m – 2.5m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	1200W 600W
Time Delay	10 sec (±3 sec) to 15 min (±2 min)
Power Consumption	<0.5W
Swivel Head	45° - Left to Right 180° - Up/Down
Mounting	Ceiling & Wall Mount
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP65 (Outdoor & Indoor Installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
