Contact / Non-Contact Tachometer

SKU: MT952

  • Combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000RPM
  • RPM Contact range 2 – 20 000RPM
  • RPM Non-contact range 2 – 100 000RPM
  • Detecting distance 50 – 500mm
  • 5 Digit backlit LCD
  • Auto Range
  • Data Hold
  • 40 Reading memories
  • Min / Max / Avg
  • Resolution 0.1RPM
  • Built-in laser spot

R 2 995.00 ex. VAT R 3 444.25 in. VAT

Details

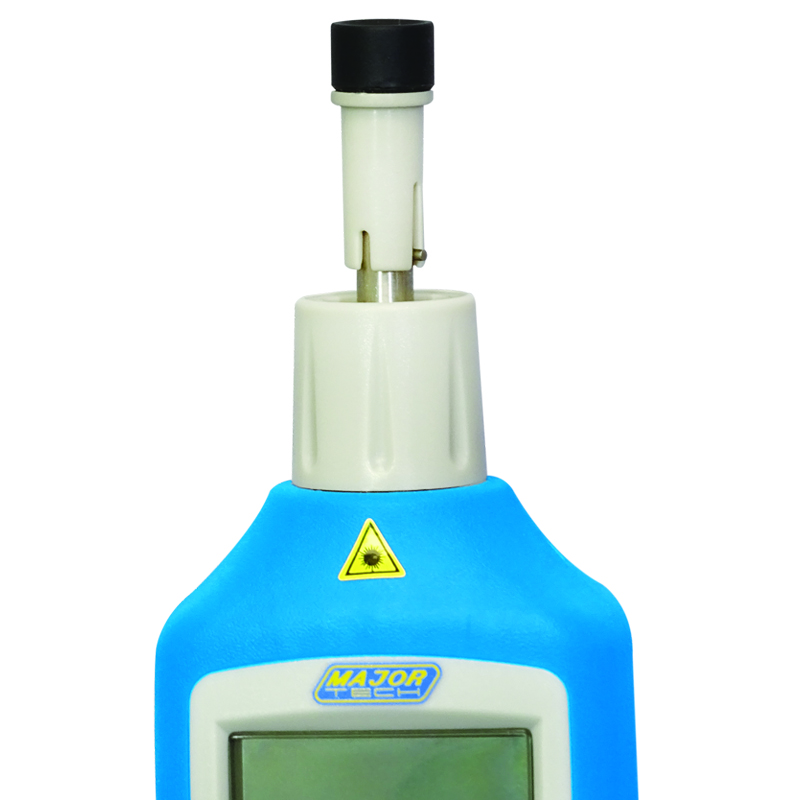

The MT952 is a combination of a Contact / Non-Contact Tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000RPM. The MT952 is supplied standard with an adaptor that converts the MT952 into a tachometer for measuring surface and axial speeds. The meter is capable of various measurements such as Rotation Speed, Total Revolutions, Frequency, Surface speed and length. The instrument is ideally suited for use with engines, process machinery, motors and machine tools.

Specifications:

Function Range Resolution Accuracy
Contact Test Range 2 – 20 000RPM 0.1RPM ±(0.05% + 1 Digit)
Non-Contact Test Range 2 – 99 999RPM 0.1RPM ±(0.05% + 1 Digit)
Sampling Time 0.5s (over 120RPM)
Detection Distance 50mm – 500mm
Time Base Quartz crystal
Laser Spot Non-Contact Yes
Digital Display 5 Digit LCD
Overrange Indication Yes
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over mould
Low Battery Indication Yes
Batteries 9V
Weight 160g
Dimensions 160 x 60 x 42mm

Accessories:

  • Soft Carrying Case

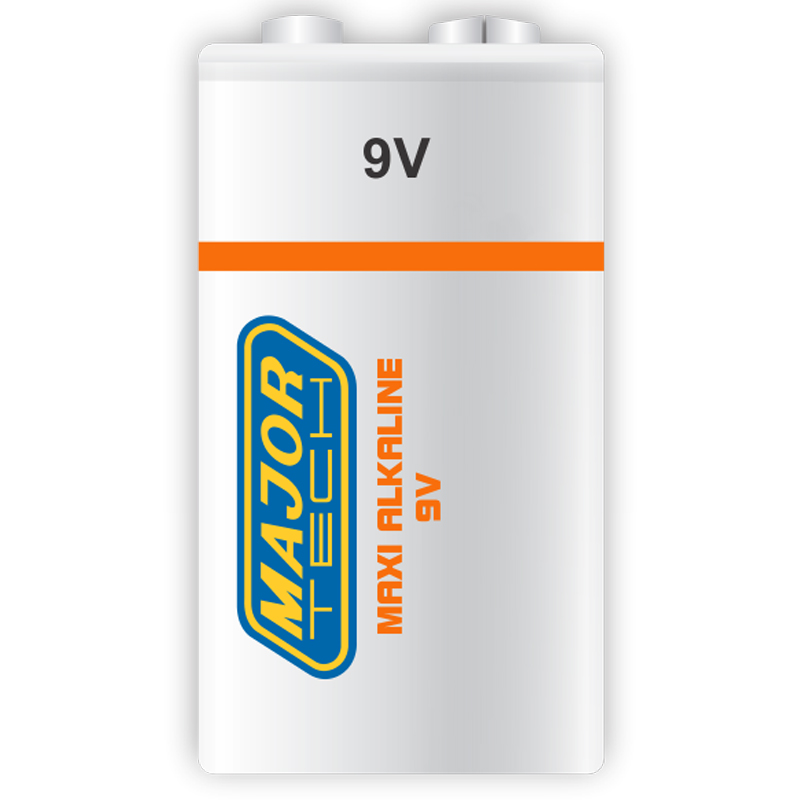

  • 9V Battery
  • Instruction manual

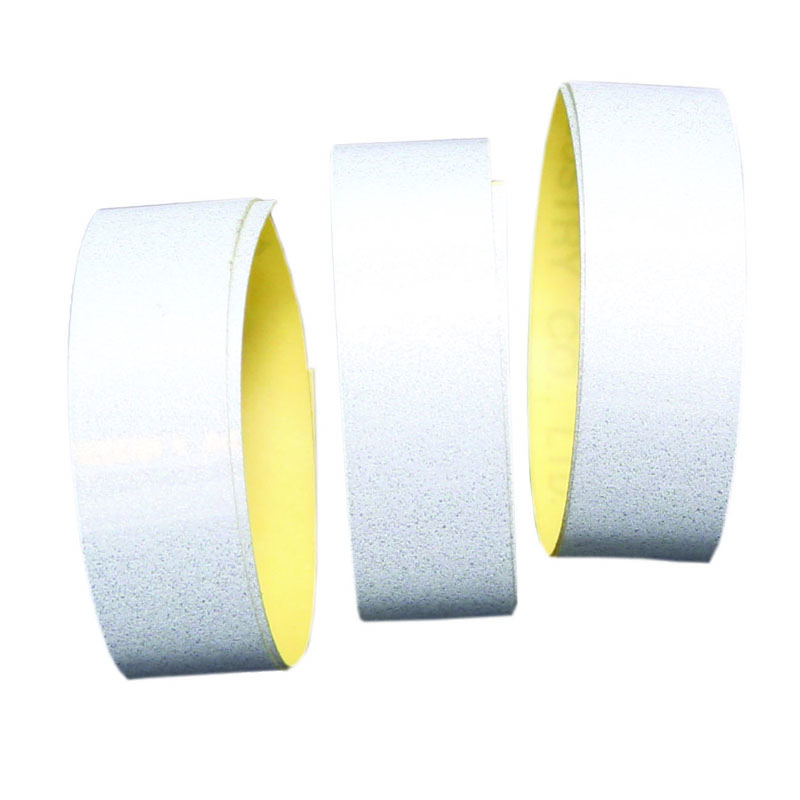

  • 3 x MT905

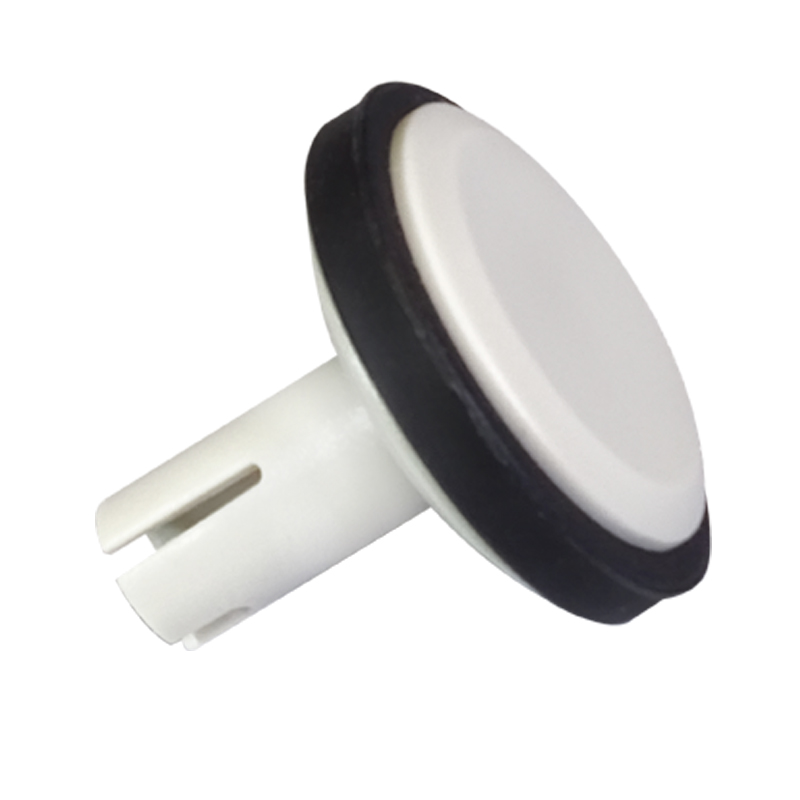

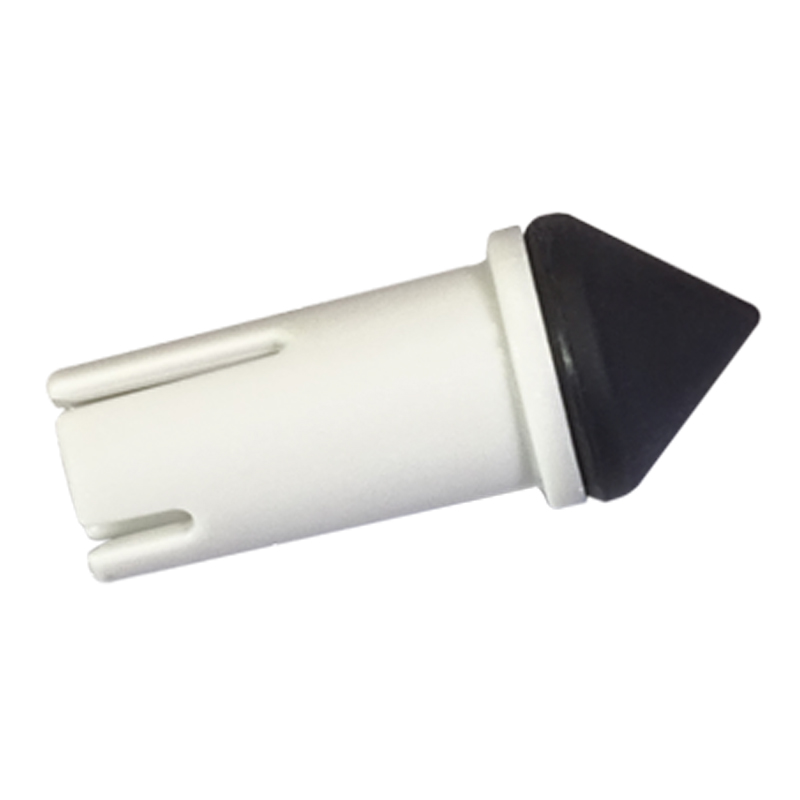

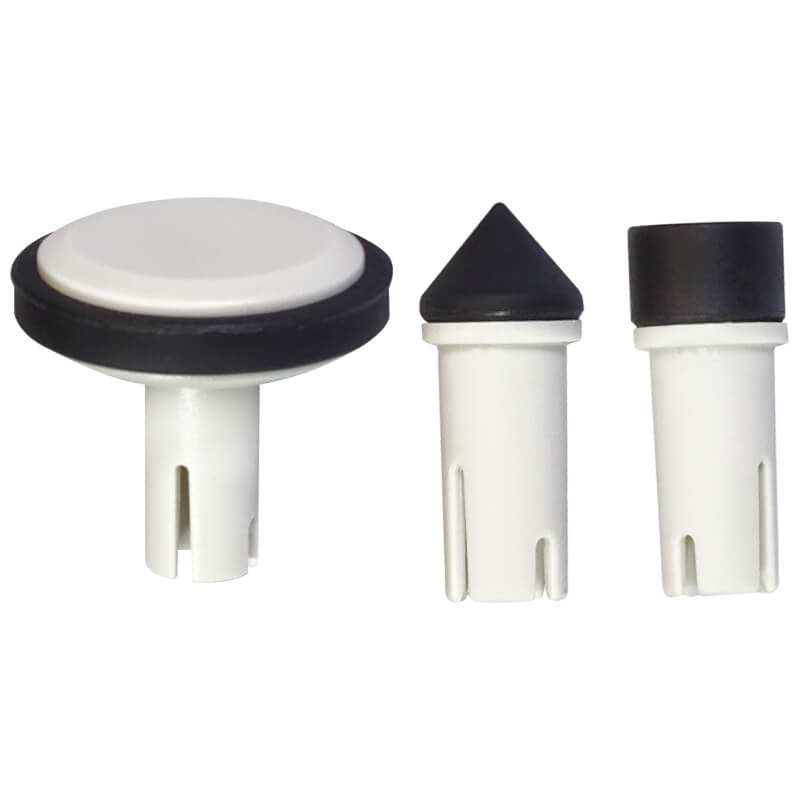

  • 1 x MT952CW
