690V AC/DC Voltage Tester

SKU: MT476

  • CAT IV 600V and CAT III 1000V
  • IP64 waterproof housing
  • AC and DC Voltage 690V
  • Rotary Field 400V
  • RCD Test 30mA
  • Continuity test to 200kΩ
  • Phase Rotation
  • 2000 Count LCD display
  • Low Impedance test
  • Built-in Flashlight
  • Polarity Detection
  • Rotary Field indication

R 1 965.00 ex. VAT R 2 259.75 in. VAT

Details

The MT476 is a 690V AC/DC Voltage Tester and is designed to meet electrician’s requirements for a multitude of applications. The tester operates without a switch and by simply placing the probes onto the circuit under test, the meter automatically turns on and displays the voltage on a 2000 count display and quick indication can be viewed on the analogue bargraph. The MT476 incorporates a Low Impedance Test, which induces a basic load of approximately 6kΩ at 690 volts. The voltage tester can show the direction of the rotating field with three-phase systems. The applied voltage and the rotating field direction is shown on the LCD display, with corresponding rotating field direction L = anticlockwise and R = clockwise. The tester can be used as a Single Pole phase tester and measure continuity up to 400kΩ plus RCD Test. The MT476 meets the CAT IV 600V and CAT III 1000V safety standards.

Specifications:

Function Range Resolution Accuracy
DC Voltage 6 - 690V 1V ± (1.0% + 3 Digits)
AC Voltage 6 - 690V 1V ± (1.5% + 5 Digits)
Rotary Field  100 - 400V
RCD Test 10mA/30mA
Continuity Yes
AC Bandwidth  50Hz - 60Hz
Digital Display 2000 count
Bargraph Yes
Polarity Indication Yes
Overrange Indication Yes
Low Input Impedance <6kΩ
Flashlight Yes
Load Test with Vibration Load Test with Vibration
Enclosure Double injection IP64
Low Battery Indication Yes
Batteries 2 x AAA
Weight  255g
Dimensions 240 x 78 x 40mm
Safety Specs IEC61010-1 CAT IV 600V

Safety Rating

Accessories:

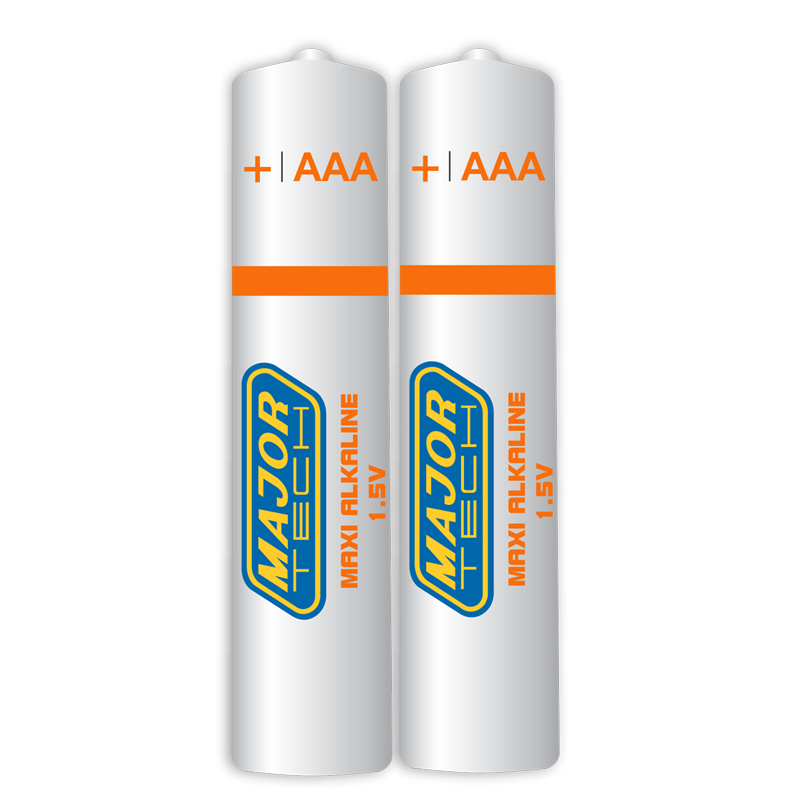

  • AAA Batteries
  • Instruction manual
  • Test Probe Covers
