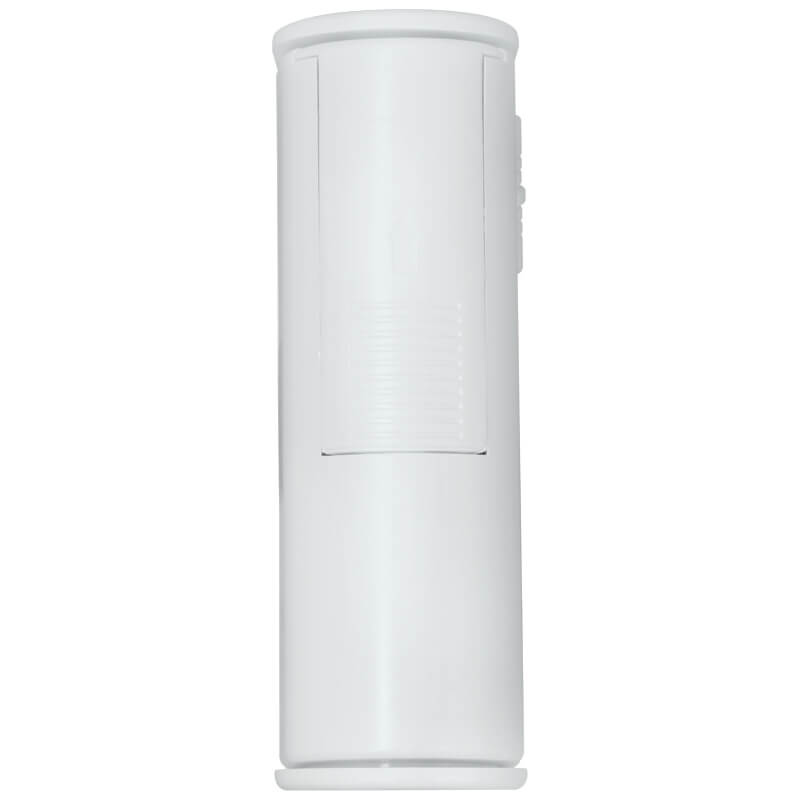

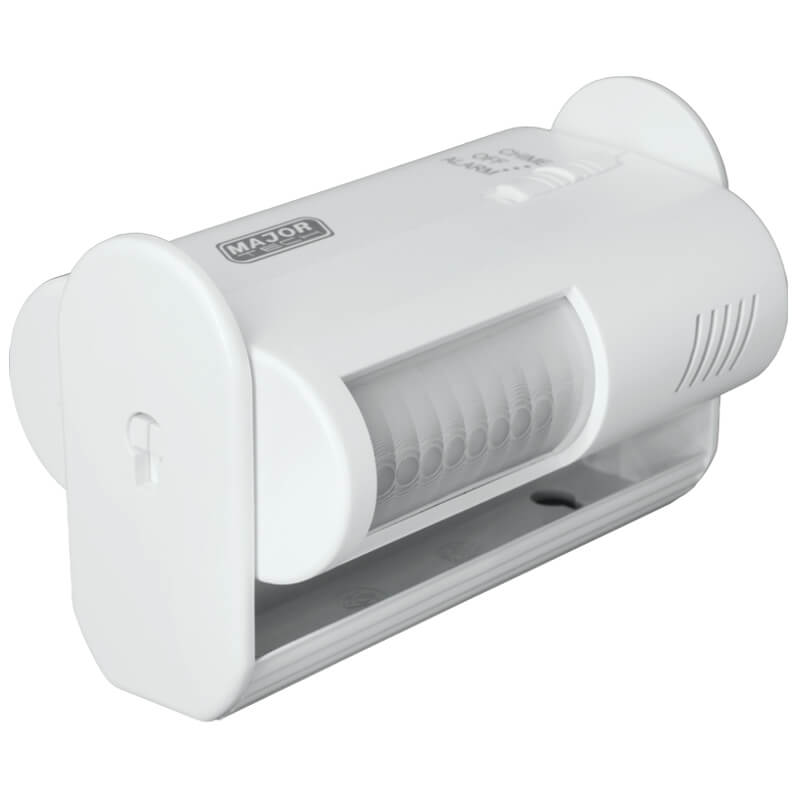

60° Mini PIR Alarm Sensor

SKU: PIR43

  • Compact, wide detecting area
  • Portable and easy to install
  • Ideal for commercial use
  • Functions as an annunciator as well as an alarm
  • Detection moving speed 0.6 – 1.5m/s

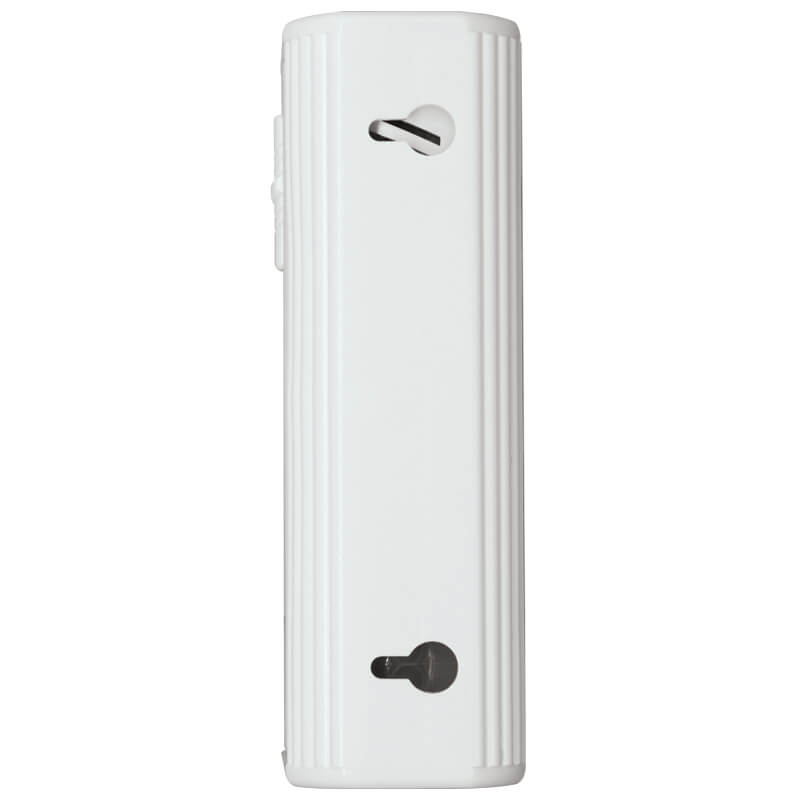

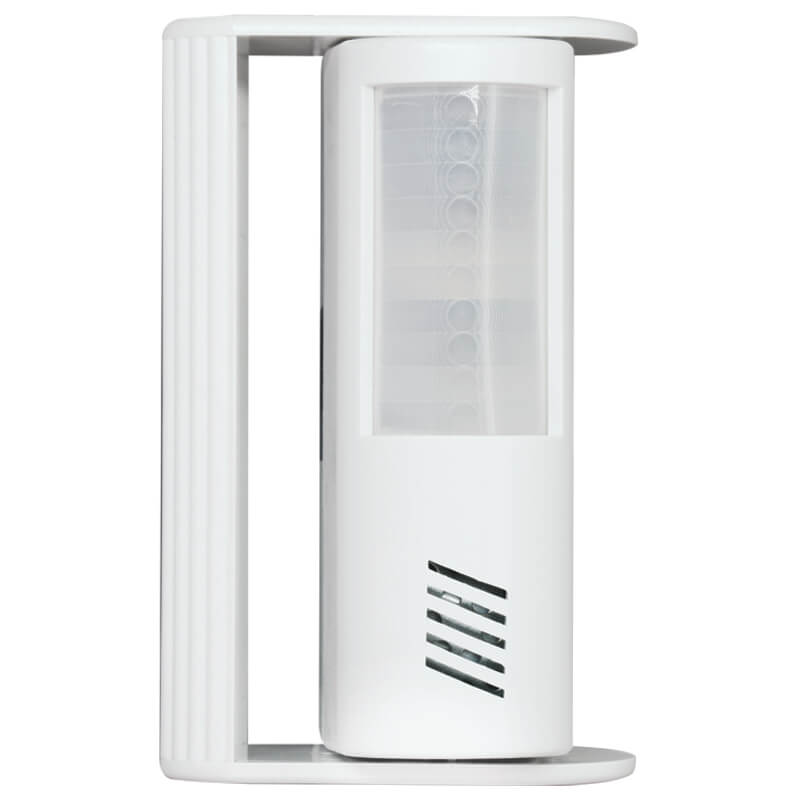

  • Unit can be installed on a wall horizontally or vertically or simply place on a desktop
  • Uses 1 x 9V Battery (not included)

R 285.00 ex. VAT R 327.75 in. VAT

Details

The PIR43 Mini Alarm Sensor is a pocket sized, dual-pyroelectric infrared sensor alarm that provides reliable detection all day long. The PIR43 uses a high sensitivity detector, an integrated circuit and SMT technology to detect movement of people and vehicles, while allowing small animals to pass through undetected. The unit is easy-to-install, automatic, convenient, and has a safety and practical function. The wide detection range consists of horizontal and vertical detection fields. It utilises human motion infrared rays as control signals and sounds the alarm when motion is detected. This unit’s convenient size makes it perfect for concealing and travelling.

Specifications:

Function Range
Detection Angle 60°
Detection Range 8m
Detection Motion Speed 0.6 -1.5m/s
Installation Height 1.5m to 3.5m
Mounting Wall / Ceiling Surface Mount
Protection Grade IP20
Alarm Loudness ≥70 dB
Power Consumption <100mA (Active), <40μA (Standby)
Sensing Interval 1 Min
Working Voltage 9V DC (6F22/6LR61 9V Battery)

Safety Rating

Warranty
