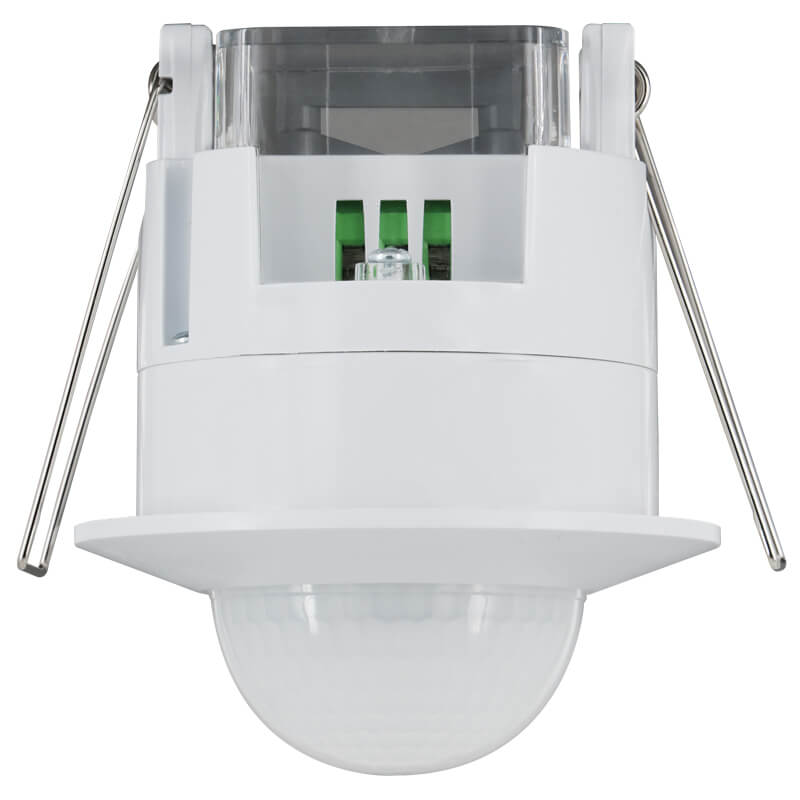

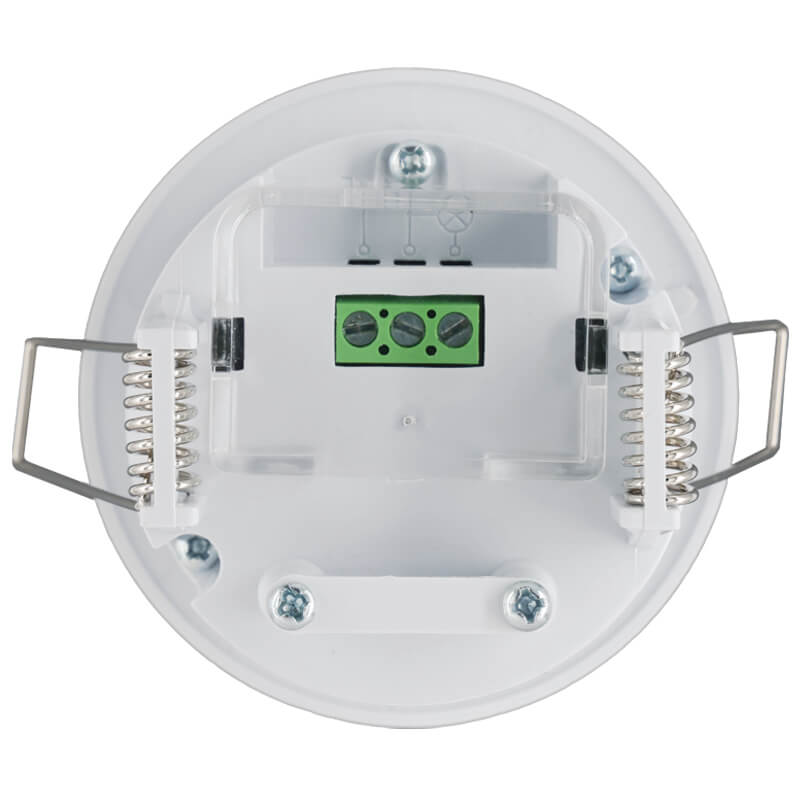

360° PIR Motion Sensor - IP20

SKU: PIR41

  • 3 – 2000 LUX (Adjustable)
  • 360° Detection Area
  • 12m Detection Distance
  • Automatically turns on lights when motion and body heat is detected
  • Time-delay and ambient light adjustment
  • Identify day and night automatically
  • Rated Load
    • 1200W (Incandescent Lamps)
    • 600W (LED / CFL)
  • IP20 Rating - Indoor Installations
  • White Housing

R 409.00 ex. VAT R 470.35 in. VAT

Details

The PIR41 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° detection range and adjustable settings for time and Lux levels, easily integrated into new or existing installations. With an IP20 rating, the sensor in intended for indoor installations. Installation must be done by a qualified electrician.

Application:

  • Major Tech PIR Sensor is ideal for homes, offices and hotels

Specifications:

Function

Range

Detection Area

360°

Detection Distance

12m Max

Detection Motion Speed

0.6 to 1.5m/s

Ambient Light

<3 to 2000 Lux (Adjustable)

Installation Height

2.2m - 4m

Voltage

220 to 240V AC

Power Frequency

50/60Hz

Rated Load

Incandescent

LED / CFL



2000W

1000W

Time Delay

10 sec (±3 sec) to 15 min (±2 min)

Hole Cut Out Size

Ø64mm

Power Consumption

<0.5W

Mounting

Ceiling Mount

Working Temperature

-20°C to 40°C

Working Humidity

<93% RH

IP Rating

IP20 (Indoor installation)

Standards

IEC 60669-1 / 60669-2-1

AS/NZS 60669.1 / 60669.2.1

Safety Rating

Warranty

Accessories:

  • Instruction Manual
