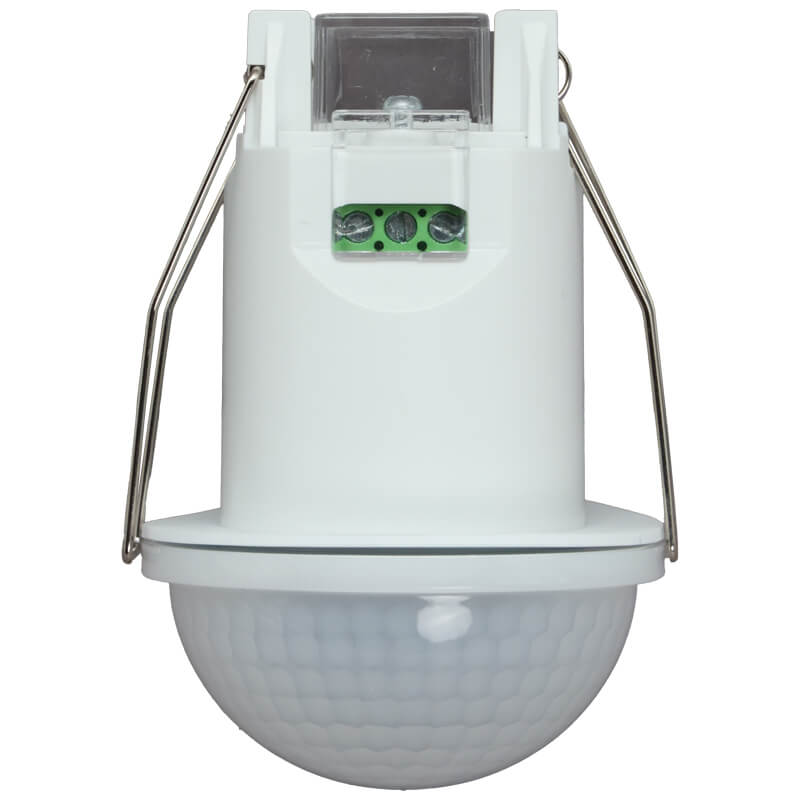

360° PIR Presence Motion Sensor - IP20

SKU: PIR42

The presence sensor is designed to detect even the slightest movements, including subtle actions like breathing or a beating heart, ensuring accurate occupancy sensing even when a person remains still.
3 – 2000 LUX (Adjustable)
360° Detection Area
Detection Distance
- 6m Presence
- 12m Movement
Automatically turns on lights when motion and body heat is detected
Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 1200W (Incandescent Lamps)
- 600W (LED / CFL)
IP20 Rating - Indoor Installations
White Housing

Quantity

R 530.00 ex. VAT R 609.50 in. VAT

Add to Cart

Add to wishlist

Details

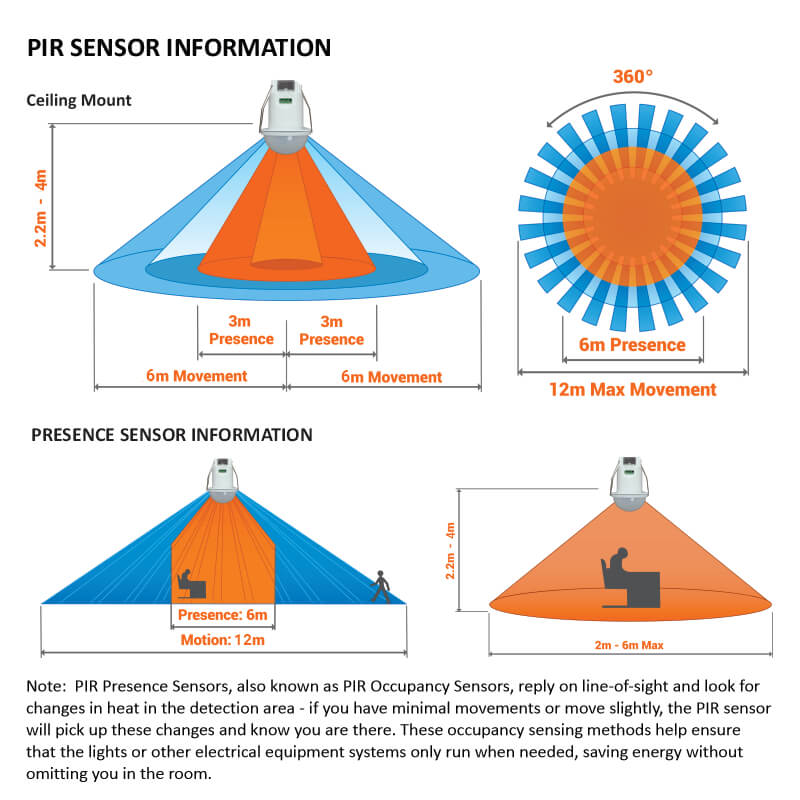

The PIR42 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 360° PIR presence sensor with a detection area of 6m and a maximum height of 6m, as well as normal PIR motion detection up to 12m with adjustable settings for time and Lux level, easily integrating into new or existing installations. With an IP20 rating, the sensor is intended for indoor installations. Installation must be done by a qualified electrician.

Specifications:

Function	Range
Detection Area	360°
Detection Distance Presence Movement	6m Max 12m Max
Detection Motion Speed	Presence
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	2.2m - 6m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	1200W 600W
Time Delay	10 sec (±3 sec) to 15 min (±2 min)
Hole Cut Out Size	Ø45mm to 48mm
Power Consumption	<0.6W
Mounting	Ceiling Mount
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP20 (Indoor installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
