180° PIR Motion Sensor - IP65

SKU: PIR44B

3 – 2000 LUX (Adjustable)
180° Detection Area
12m Detection Distance
Automatically turns on lights when motion and body heat is detected

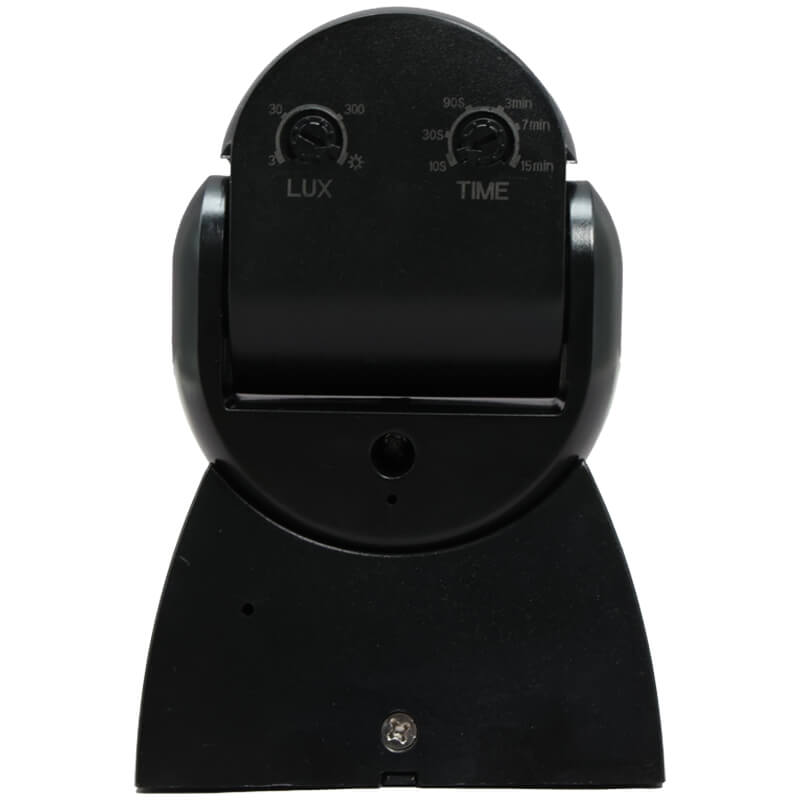

Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 1200W (Incandescent Lamps)
- 600W (LED / CFL)
IP65 Rating - Outdoor & Indoor Installations
Black Housing

Quantity

R 329.00 ex. VAT R 378.35 in. VAT

Add to Cart

Add to wishlist

Details

The PIR44B automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 180° detection range and adjustable settings, easily integrating into new or existing installations. With an IP65 rating, it can be installed indoors or outdoors. Installation must be done by a qualified electrician.

Application:
Major Tech PIR Sensor is ideal for homes, offices and hotels
The main applications include corridors, pathways, bathrooms and lobbies

Specifications:

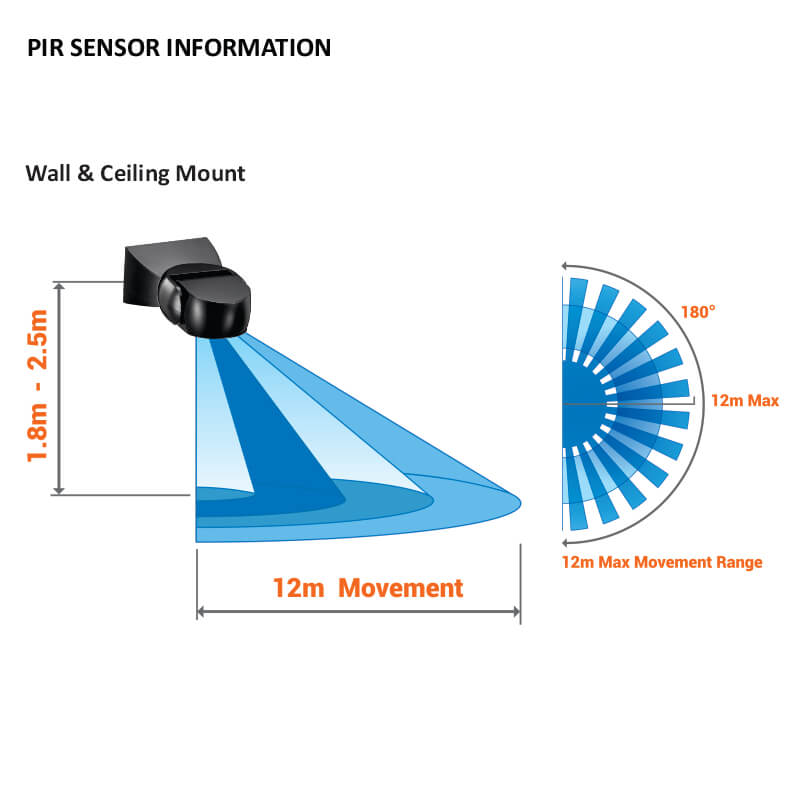

Function	Range
Detection Area	180°
Detection Distance	12m Max
Detection Motion Speed	0.6 to 1.5m/s
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	1.8m – 2.5m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	1200W 600W
Time Delay	10 sec (±3 sec) to 15 min (±2 min)
Power Consumption	<0.5W
Swivel Head	45° - Left to Right 180° - Up/Down
Mounting	Ceiling & Wall Mount
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP65 (Outdoor & Indoor Installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
