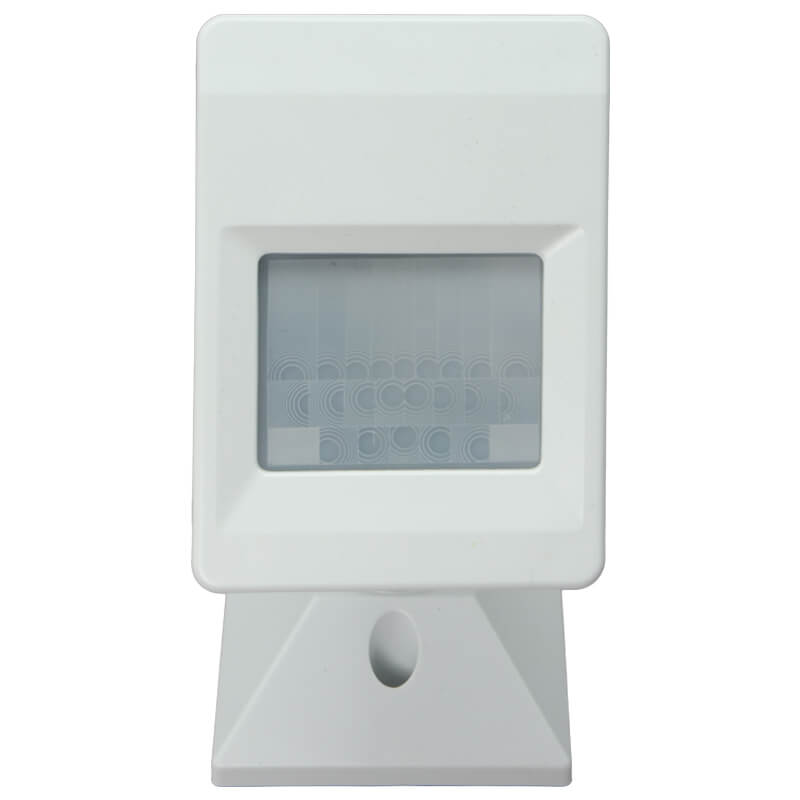

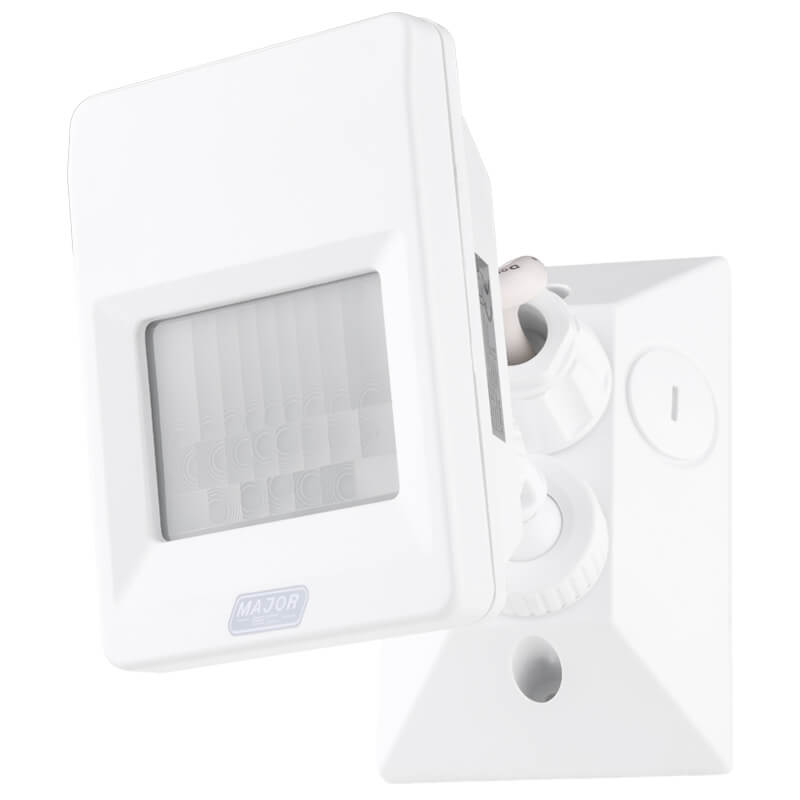

120° PIR Motion Sensor - IP66

SKU: PIR37

3 – 2000 LUX (Adjustable)

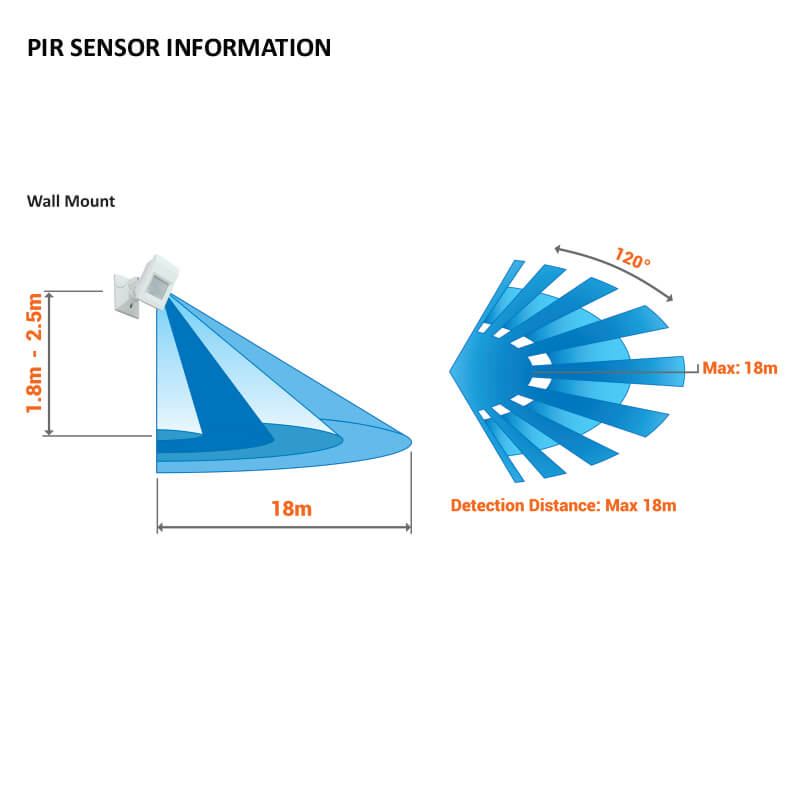

120° Detection Area
18m Detection Distance
Automatically turns on lights when motion and body heat is detected
Time-delay and ambient light adjustment
Identify day and night automatically
Rated Load
- 2000W (Incandescent Lamps)
- 1000W (LED / CFL)
Manual Override Function
IP66 Rating - Outdoor & Indoor Installations

Quantity

R 495.00 ex. VAT R 569.25 in. VAT

Add to Cart

Add to wishlist

Details

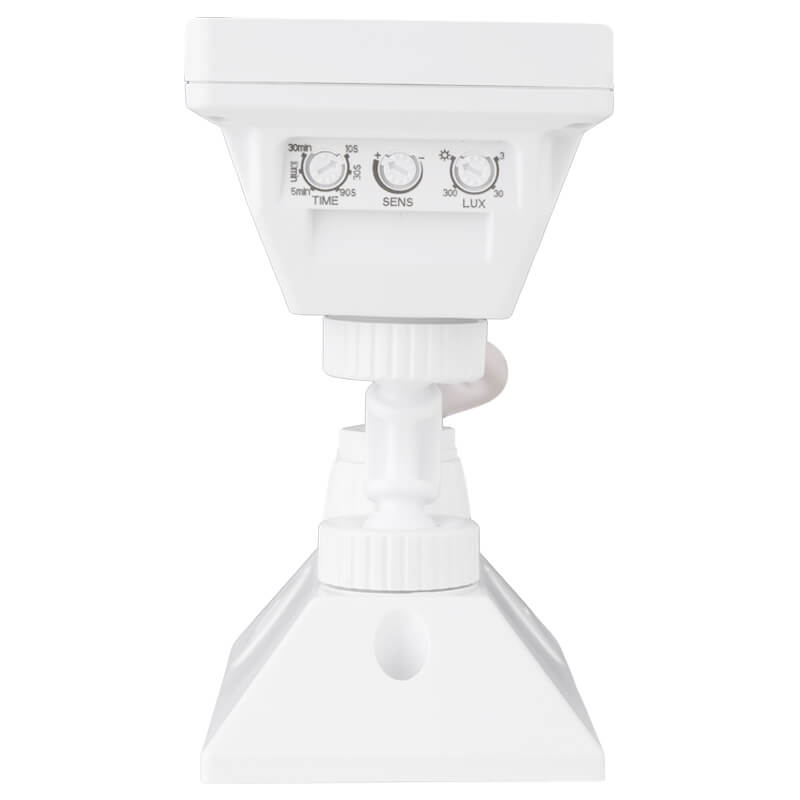

The PIR37 automatically turns on lights or any electrical device within the sensors rated load, when motion and body heat is detected. It has a 120° detection range and adjustable settings for time, Lux level and sensitivity with a manual override function, easily integrating into new or

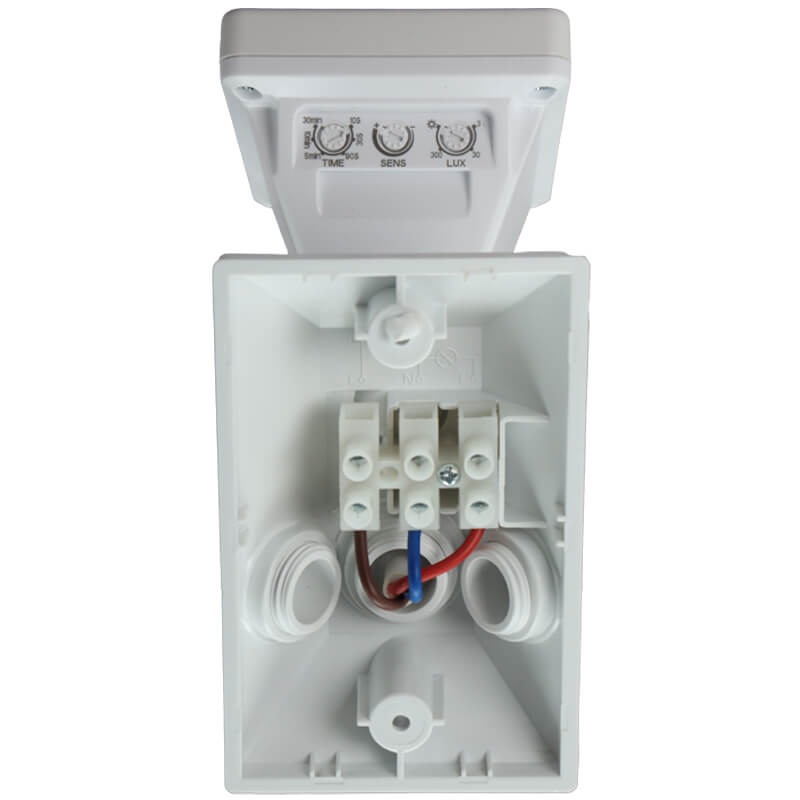

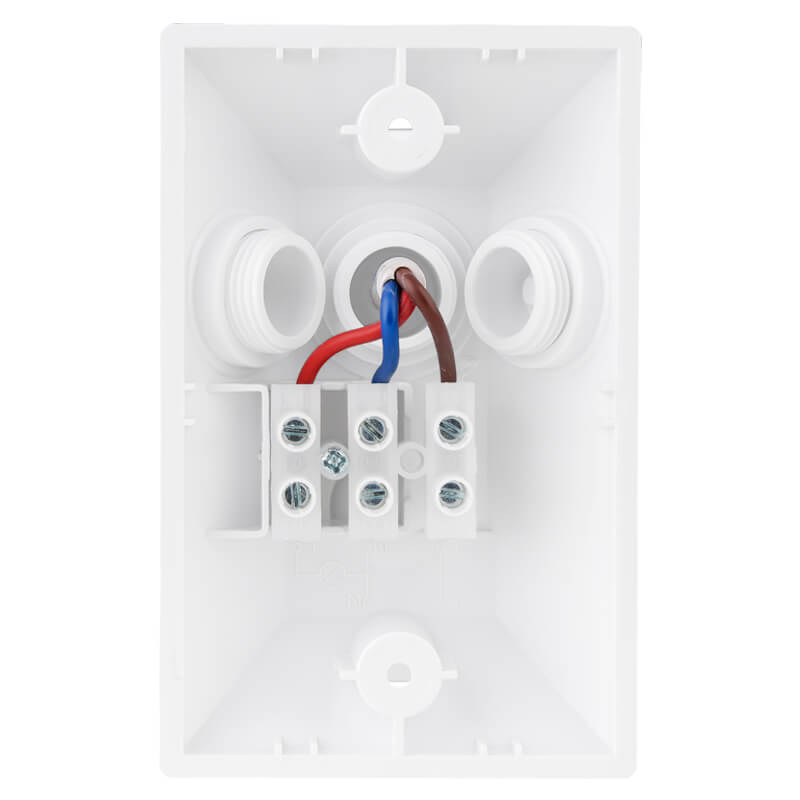

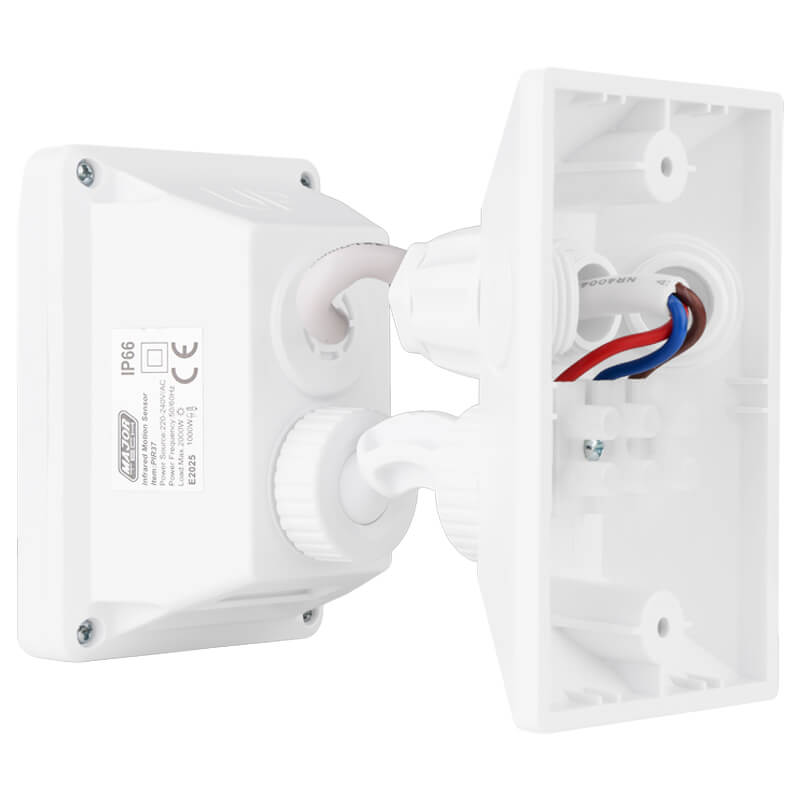

existing installations. With an IP66 waterproof rating, the sensor is intended for indoor or outdoor installations and can either be ceiling or wall mounted. Wiring includes 3-wire options making it versatile for many different configurations. Installation must be done by a qualified electrician.

Specifications:

Function	Range
Detection Area	120°
Detection Distance	6 - 18m (Adjustable) <24°C
Detection Motion Speed	0.6 to 1.5m/s
Ambient Light	<3 to 2000 Lux (Adjustable)
Installation Height	1.8m – 2.5m
Voltage	220 to 240V AC
Power Frequency	50/60Hz
Rated Load Incandescent LED / CFL	2000W 1000W
Time Delay	10 sec (±3 sec) to 30 min (±2 min)
Power Consumption	<0.5W
Manual Override	Yes - Sensor Mode or Continuous On

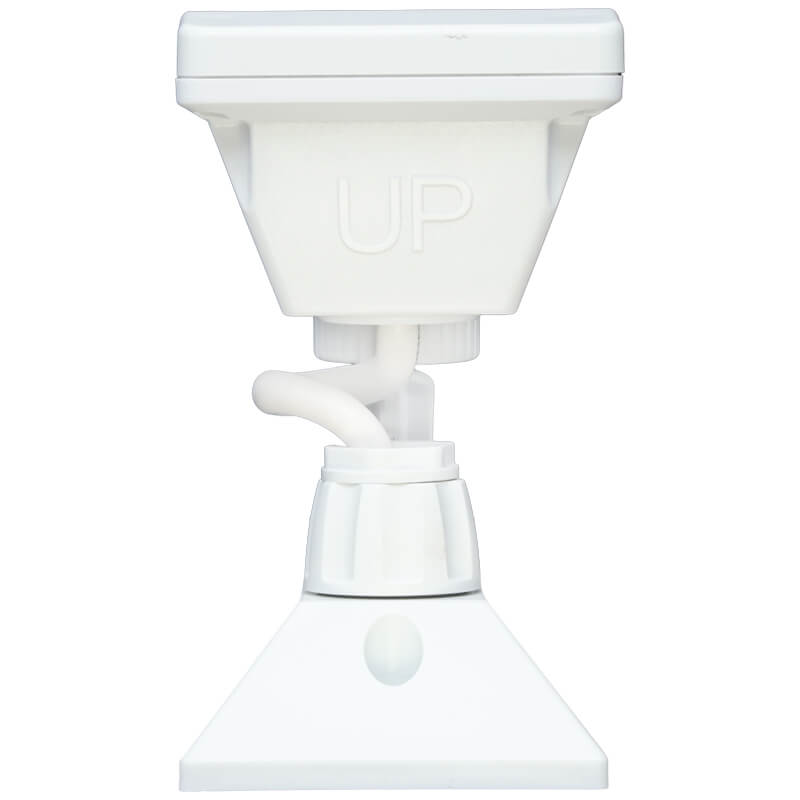

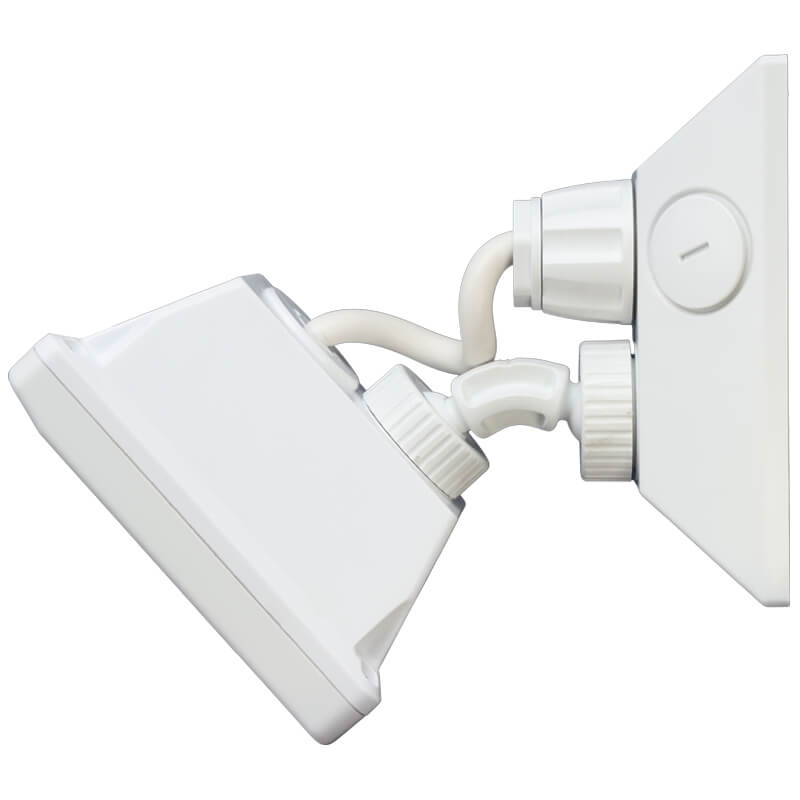

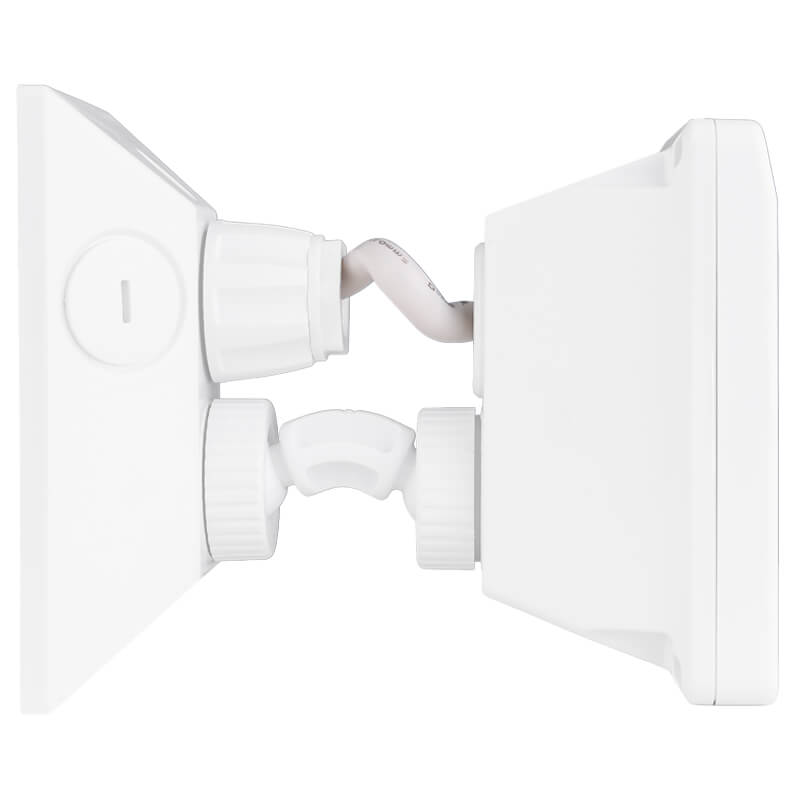

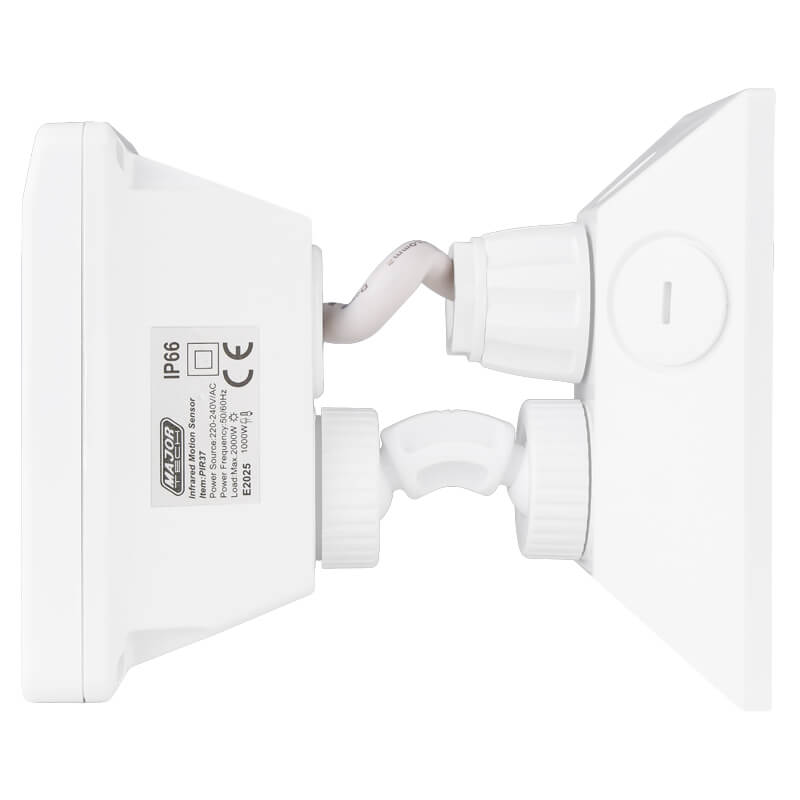

Swivel Head	100° - Left to Right 45° - Up/Down
Mounting	Wall Mount
Working Temperature	-20°C to 40°C
Working Humidity	<93% RH
IP Rating	IP66 (Outdoor & Indoor installation)
Standards	IEC 60669-1 / 60669-2-1 AS/NZS 60669.1 / 60669.2.1
