1000A AC/DC TRMS Bluetooth Clamp Meter

SKU: MT777

6000 count TFT colour LCD display
Ø33mm Cable Clamp size
Measurement of AC, AC+DC TRMS and DC voltage up to 1000V
Capacitance to 100mF
Trend Capture Function
100 Graph Data Review
INRUSH Current Measurements
VFD – Variable Frequency Drive voltage value
LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode, Min/Max and Data Hold function
Auto Power Off
Optional MT740 Flexible Coil Clamp for measurement 3000A AC

Quantity

R 4 995.00 ex. VAT R 5 744.25 in. VAT

Add to Cart

Add to wishlist

Details

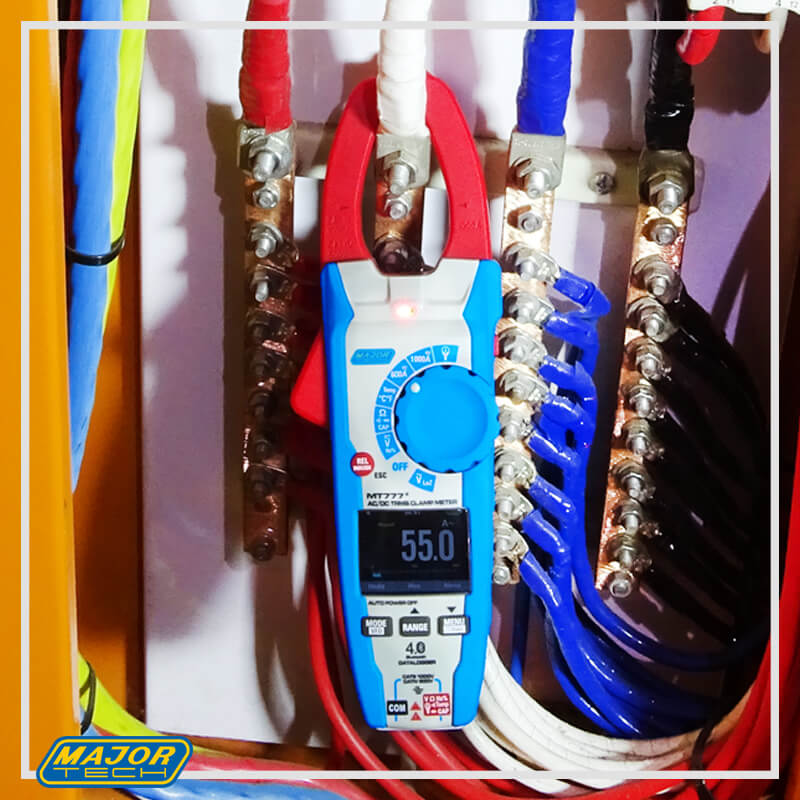

The MT777 is a CAT IV 600V, 6000 count True RMS 1000A AC/DC digital clamp meter with an analogue bargraph indication on a TFT colour
display, providing fast sampling time with high accuracy. The meter has a built in Data logger with 100 Graph Data review, using Bluetooth
the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. The
VFD function allows the user to measure stable voltage in high frequency applications, while the Low Z range function has a low pass filter
to eliminate errors caused by “Ghost” voltages. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance
measurements, 100ms Inrush current and Peak Hold. Using the optional MT740 True RMS Flexible Clamp Adaptor, the measuring range can
be extended to measure 3000A AC. Added features are Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.

Specifications:

Function	Range	Resolution	Accuracy
DC Current	0.1A – 1000A	0.1A	±(2.5% + 5 Digits)
AC Current	0.1A – 1000A	0.1A	±(2.5% + 5 Digits)
DC Voltage	0.1mV – 1000V	0.1mV	±(1.5% + 5 Digits)
AC Voltage	1mV – 1000V	1mV	±(1.5% + 5 Digits)
Resistance	0.1Ω – 60MΩ	0.1Ω	±(1.5% +5 Digits)
Frequency	0.01Hz – 99.99kHz	0.01Hz	±(1.2% +5 Digit)
Capacitance	0.01nF – 100mF	0.01nF	±(3.0% + 8 Digits)
Temperature	-40 to 1000°C	0.1°C	±(1.5% + 5°C Digits)
Duty Cycle	10% to 90%	0.001	±(1.2% + 8 Digits)
True RMS Measurements	ACV, ACA
AC Bandwidth	50 – 400Hz
Digital Display	TFT Colour LCD Display
Bargraph	Yes
Records Events And Trends	Yes
Data Logging	Yes
Bluetooth	Bluetooth 4.0
Non-Contact Voltage (NCV)	Yes
Overrange Indication	Yes
Continuity	Yes
Diode Test	Yes
Jaw Size	33mm
Input Impedance	>10MΩ DCV & >10MΩ VAC
Low Frequency Input	Yes
Min Max	Yes
Peak Hold	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Double injection moulding
Low Battery Indication	Yes

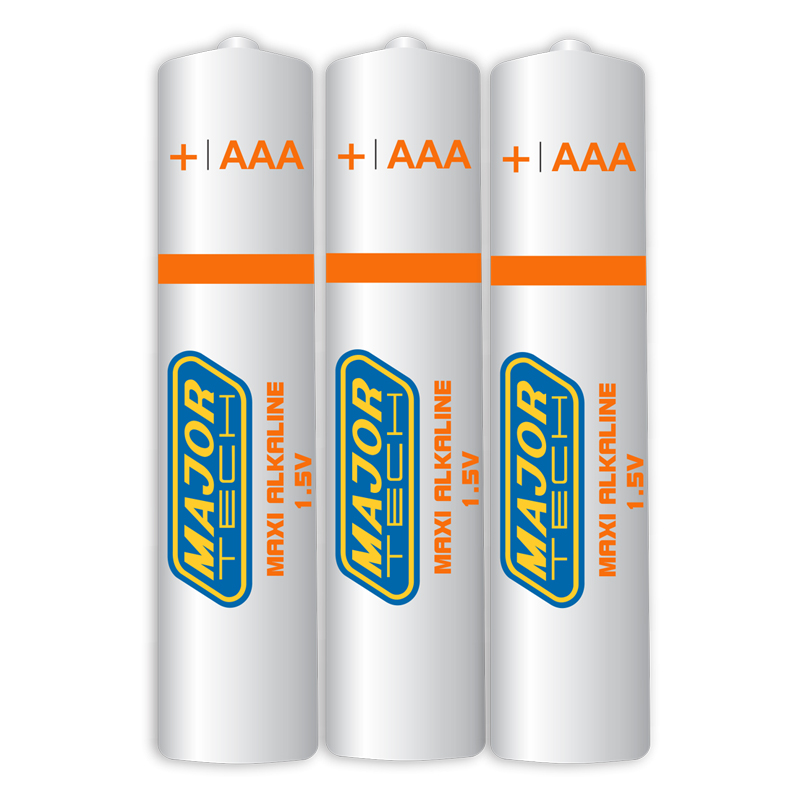

Power Source	3 x AAA
Weight	350g
Dimensions	250 x 78 x 40mm
Safety Specs	IEC61010-1 CAT IV 600V
