Earth Resistance Tester
R5,117.50
Features :
- Earth Resistance 2000Ω
- Earth voltage to 200V
- Indicates if resistance of auxiliary spikes is within tolerance
- Direct readout of the earth resistance on the LCD display
- Measures DCV to 1000V and ACV to 750V
- Overrange indicator
- Zero adjustment of leads
- Data Hold
- Overmould Rubber Casing
- Dual LCD with backlight
- Ideal for earth rods and lightning conductors
Description
The MT330 is an Earth Resistance Tester ideal for the measurement of earth rods and lighting conductors. Other ranges have been included such as AC voltage measurement up to 750V and DC voltage up to 1000V, plus a 200kΩ resistance range. The large backlit dual display LCD indicates the range measured as well as the battery voltage. The advanced circuit design permits the instrument to operate with minimum influence from earth voltage and earth resistance of auxiliary spikes. The double mould rubber injection housing ensures that the meter can handle the rough terrain when used in the field while performing earth tests.
Accessories:
- Carrying Case
- Adjustable Shoulder Strap

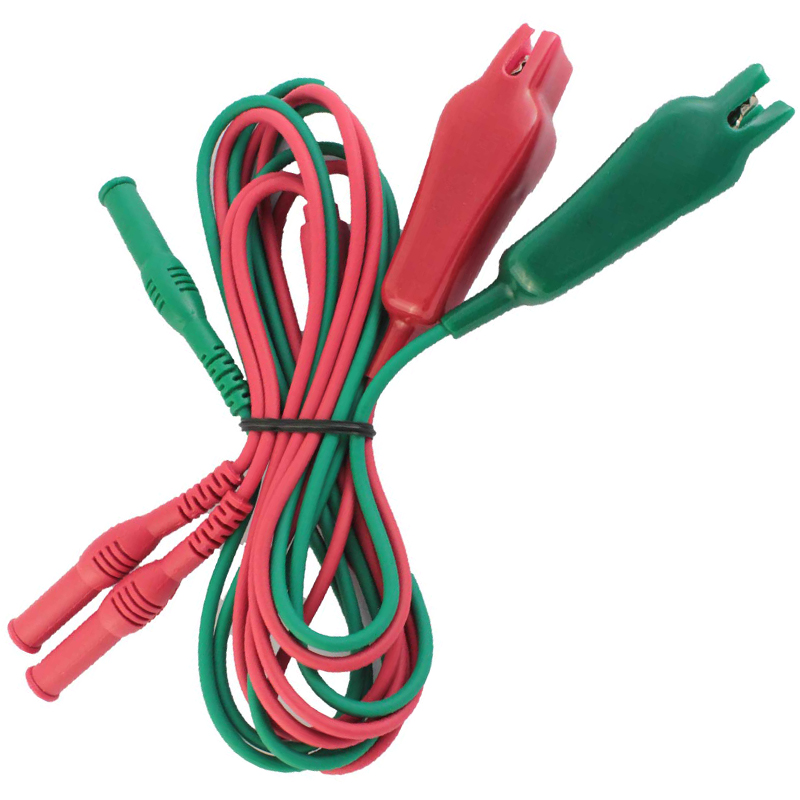

- Test Leads

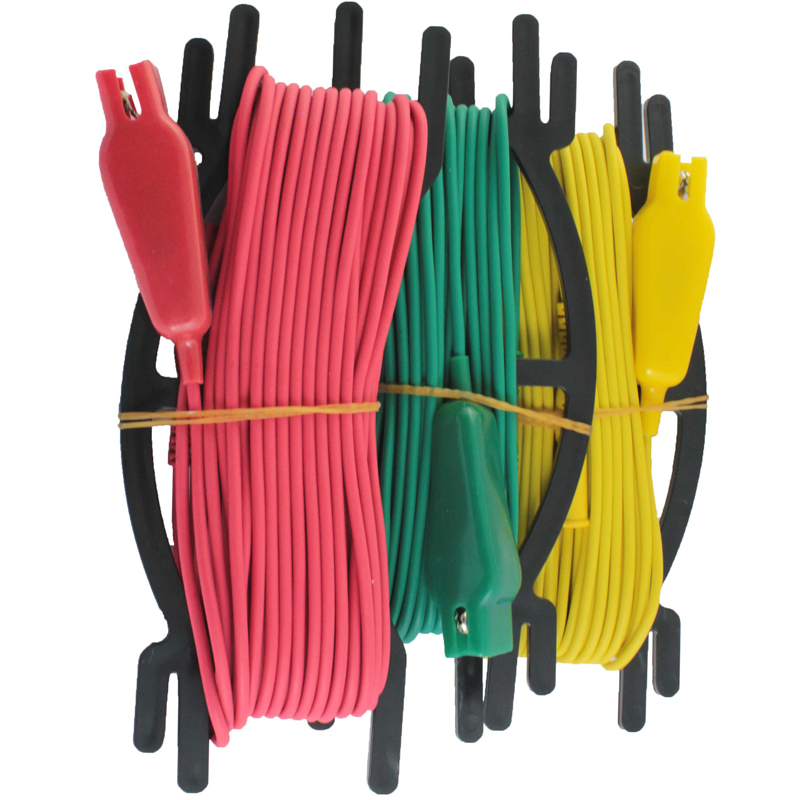

- 3 Wire Cable

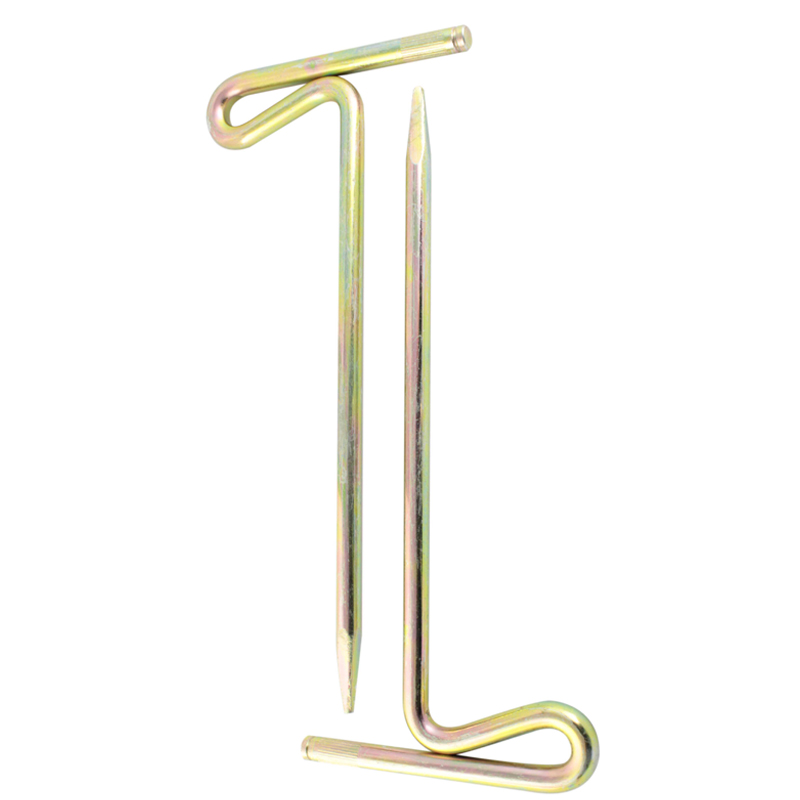

- Aux Earth Spikes

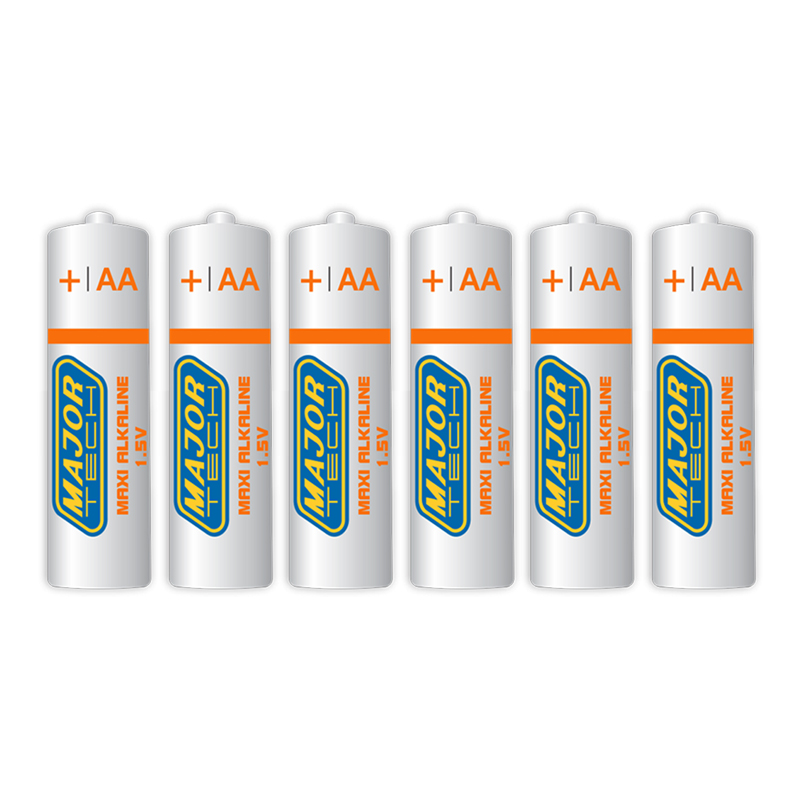

- 6 x AA Batteries
- Instruction Manual
Additional information
DC Voltage | 1000V |
---|---|
DC Voltage resolution | 1V |
DC Voltage accuracy | ±(0.8% +3) |
AC Voltage | 750V |
AC Voltage resolution | 1V |
AC voltage accuracy | ±(1.2% +10) |
Resistance | 200kΩ |
Resistance resolution | 0.1kΩ |
Resistance accuracy | ±(1.0% +2) |
Earth resistance | 20/200/2000Ω |
Earth resistance resolution | 0.01Ω |
Earth resistance accuracy | ±(2%+10) |
Earth voltage | 200V |
Earth voltage resolution | 0.1V |
Earth voltage accuracy | ±(3%+3) |
Frequency | 40 to 400Hz |
Display | LCD Display |
Back Light | Yes |
Enclosure | Overmoulded case |
Low battery indication | Yes |
Power source | 6 x AA |
Weight | 700g |
Dimensions | 200 x 92 x 50mm |
