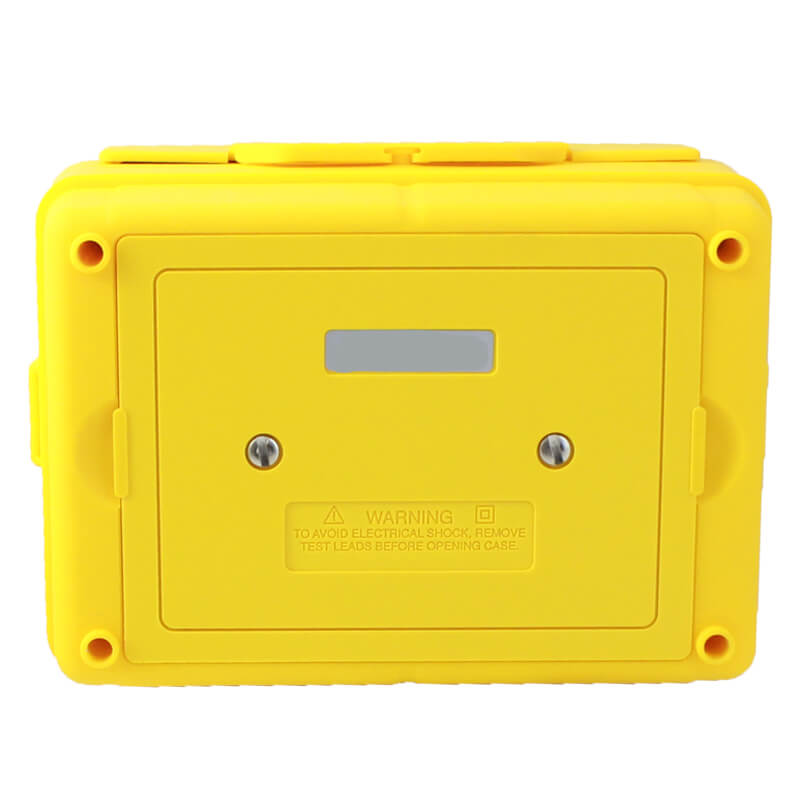

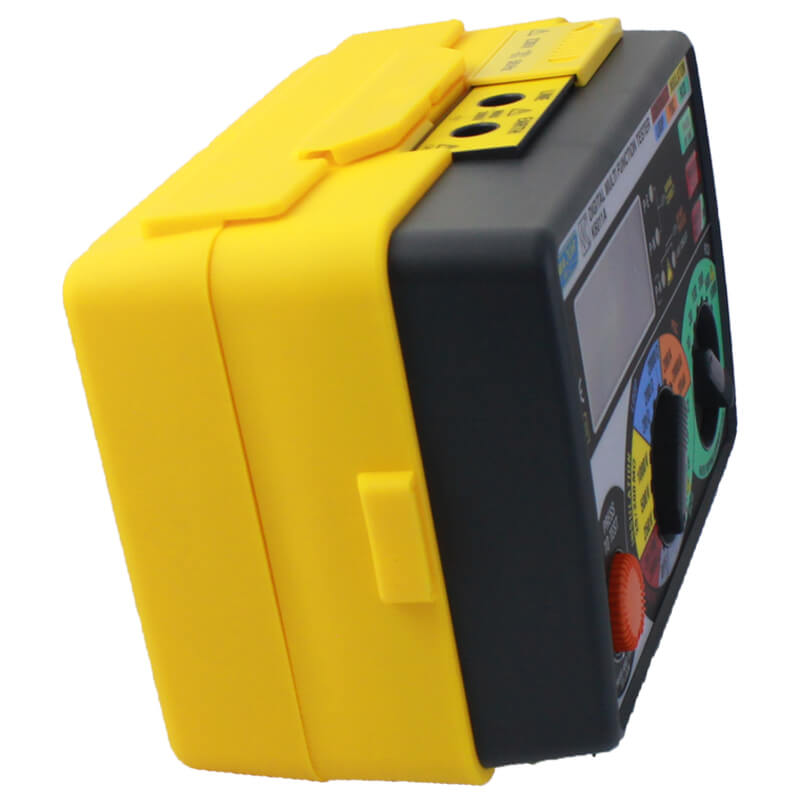

5-In-1 Multifunction Tester

R16,594.50

Features :

5 Test functions
Microprocessor Controlled for Accuracy and Reliability
Direct readout of PSC and Earth Fault Current
Auto power off
0˚ and 180˚ phase angle selection
Tests of a large range of RCD’s
DC tests for DC sensitive breakers
Polarity switch for continuity tests Auto-null facility for continuity tests
Earth probe for loop impedance testing on extraneous metalwork
Contact voltage measurement
Loop impedance test with 0.01Ω resolution
Live circuit warning and visual indication of correct wiring status
250V, 500V and 1000V insulation ranges
IP54 dust and water resistant casing
Optional accessories K7133 Distribution Board Leads

SKU: K6011 Category: Multifunction Testers

Description
Details

Description

The K6011 is a 5-In-1 Multifunction Tester that is highly portable and that provides the solution to testing electrical installations to the requirements of SANS 0142 and can perform five separate test functions which include insulation, continuity, earth loop impedance, prospective short circuit and RCD trip testing. The K6011 features Phase Angle selection, auto null of test leads for continuity, correct wiring status, testing of DC RCD’s, and auto power off.

Accessories:

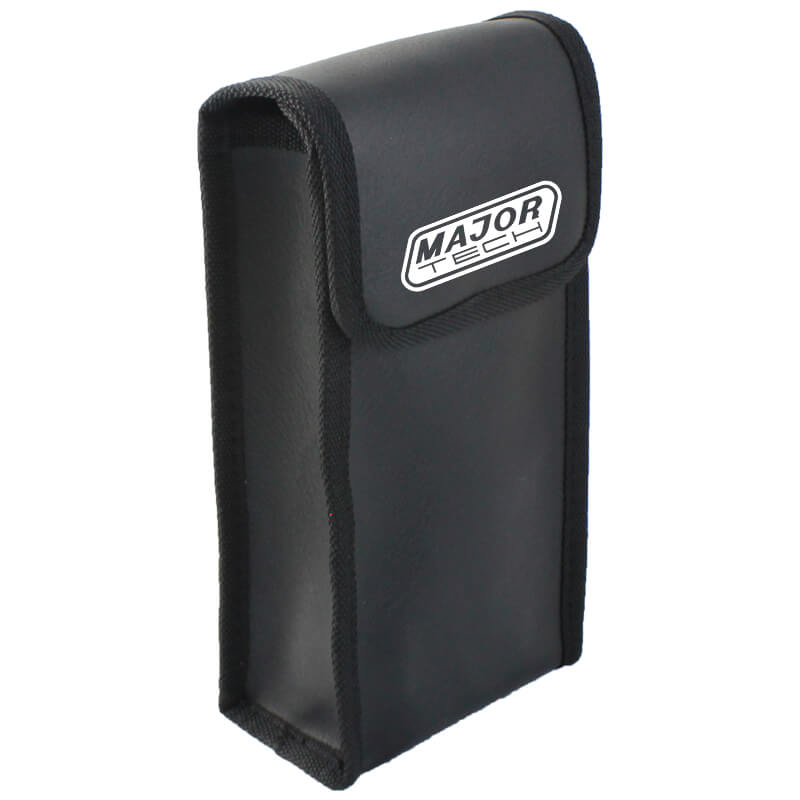

Pouch for leads
AA Batteries

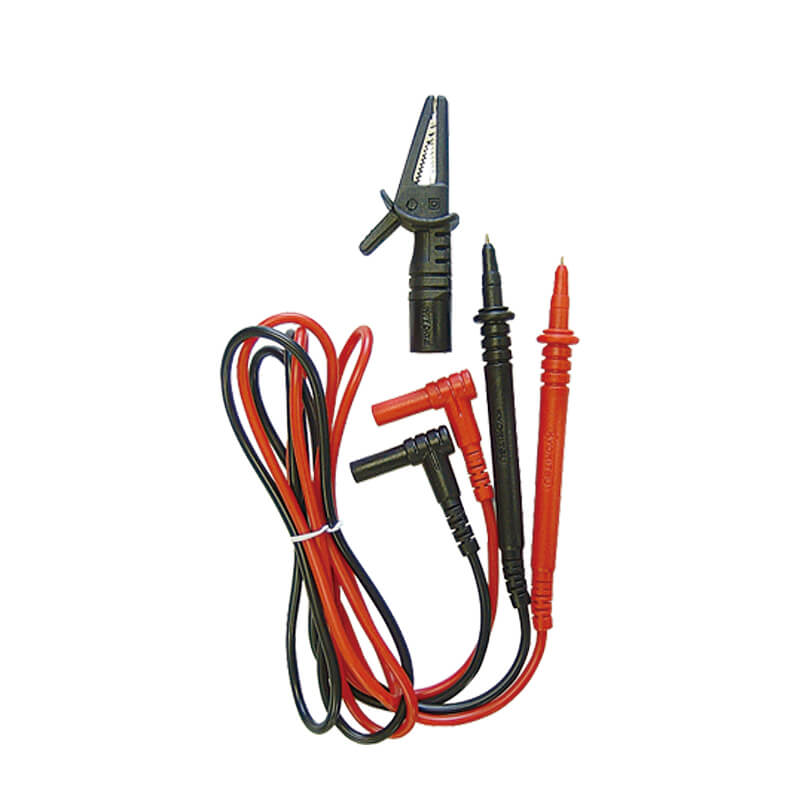

Test leads
Instructional manual
Strap
COC

Optional accessories:
K7133 Distribution Board Leads

Downloads

Technical Datasheet

Instructional Manual

Additional information

Continuity	20/200/2000Ω
Continuity resolution	0.1Ω
Continuity Accuracy	±(1.5% +3)
Short Circuit Current	Less than 200mA
Insulation resistance	250/500/1000V
Insulation Range	20/200MΩ
Insulation Accuracy	±(1.5% +3)
Rated Current	1mA
Loop Impedance	L-PE, L-N
Loop Impedance Range	20, 200, 2000Ω
Loop Impedance Resolution	0.01Ω
Loop Impedance Accuracy	±(3%+4)
PSC/PFC	2000A/20KA
PSC/PFC accuracy	Derived from Loop and Voltage measurement
Test Current	2.3/25A
RCD	x 5, x 1, x 1/2,
RCD Accuracy	±(1%+3)
RCD test current	15/30/100/300/500/1000mA
Measuring Range	2000ms
Measuring Accuracy	±(1%+3)
Phase angle	0° to 180°
Voltage Measurement	100-250V
Frequency Response	50Hz
Voltage accuracy	±(3%)
Display	LCD Display
Enclosure	Molded case IP54
Low battery indication	Yes
Power source	8 x LR6
Dimensions	130 x 183 x 100mm
Weight	1100g
