5-in-1 Environmental Meter
R5,744.25
Features:
- Large LCD display with backlight
- MAX, MIN and AVG measurements
- Display shows Sound, Light, K-Type Temperature, Humidity & Temperature as well as Air Velocity & Air Flow
- Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
- The device measures air velocity, it features 5 selectable units of velocity measure: m/s, ft/min, km/h, MPH, knots, and it features 2 selectable units of flow measure: CFM, CMM
- Easy to set Area dimension (up to 6 points) for air flow measurement
- USB interface, USB to UART Bridge Controller
- Low battery indication, Auto Power Off (Sleep mode) adjustable
- Data Logging
Description

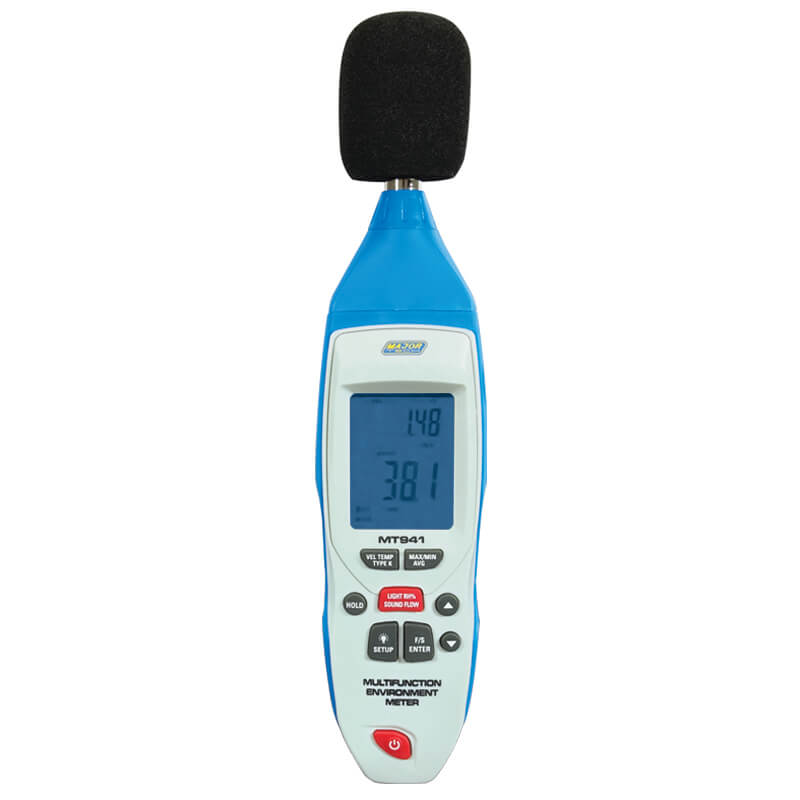

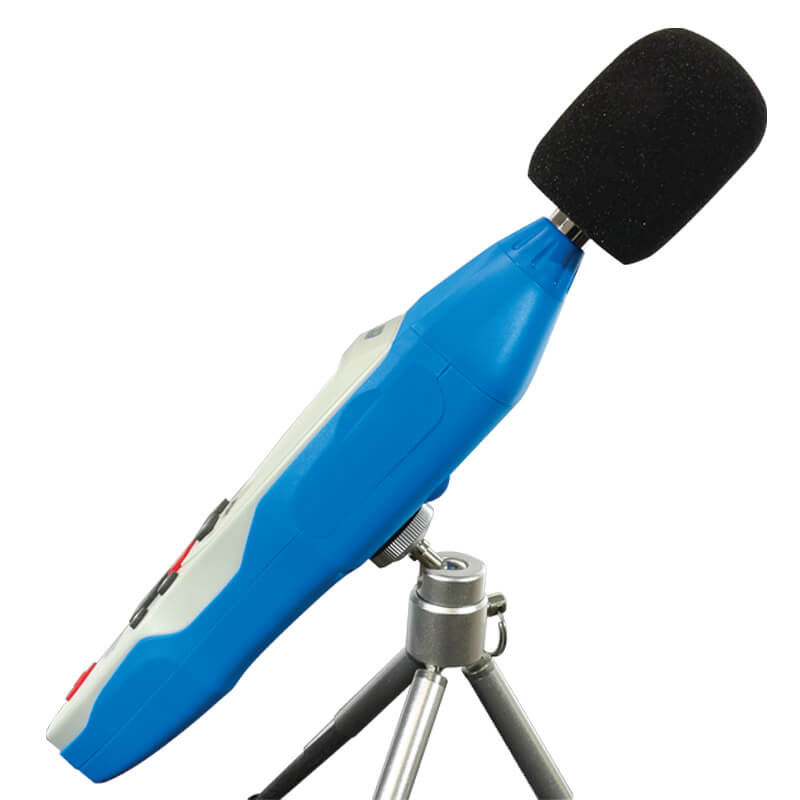

The MT941 5-in-1 Environmental Meter has been designed to combine the functions of a Sound Level Meter, Light Meter, Humidity Meter, Temperature Meter and CFM/CMM Thermo-Anemometer. It is an ideal Multifunction Environment Meter with scores of practical applications for professional and home use. The Sound level function can be used to measure noise in factories, schools, offices, home, etc, checking acoustics of studios, auditoriums and hi-fi installations. The Light function is used to measure luminance in the field. It is fully cosine corrected for the angular incidence of light. The light sensitive component used in the meter is a very stable, long life, silicon diode. Humidity/Temperature uses a humidity/semiconductor sensor and K-type thermocouple. CFM/CMM Thermo-Anemometer is suitable for use in a wide variety of applications, including plant maintenance operations, environmental analysis, fume hood testing, and HVAC system assessments.
This Environmental Meter is carried in a hard plastic carrying case for convenience and protection.
Accessories

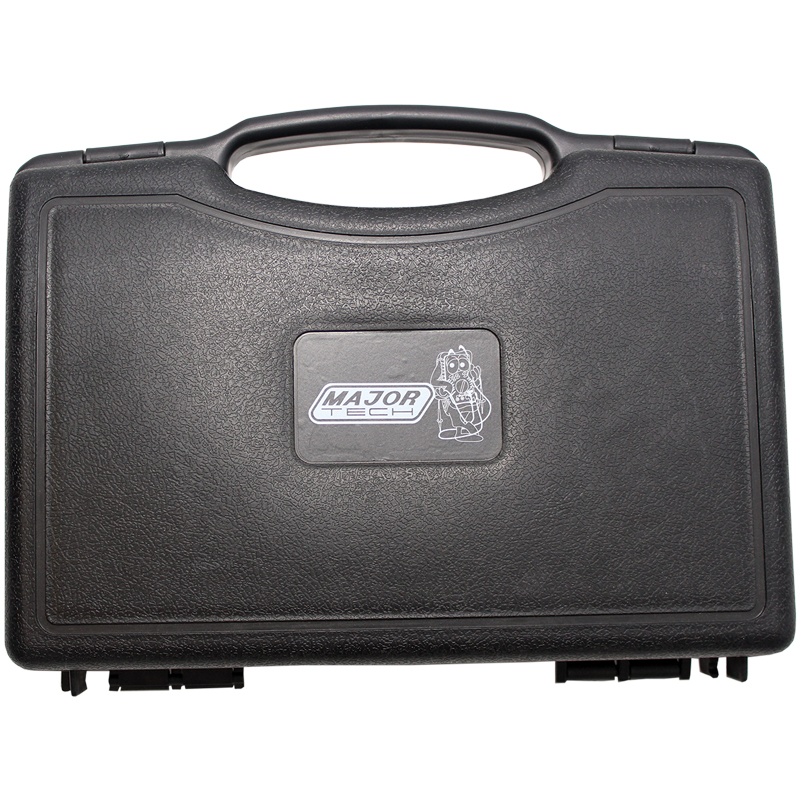

- Hard Plastic Carrying Case

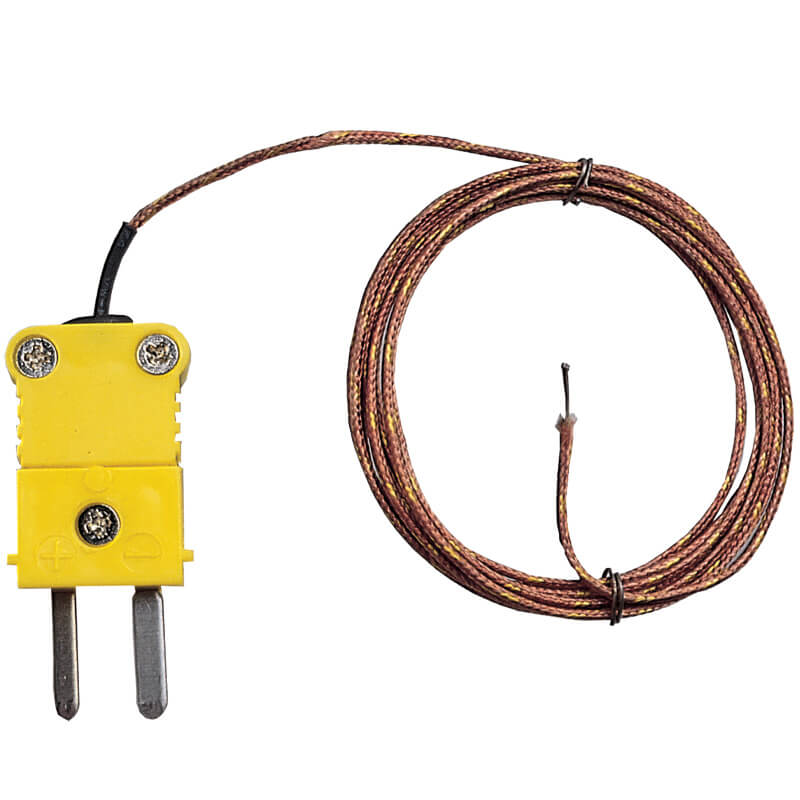

- MT690 K-Type Probe Kit
- Instruction Manual
Additional information
Temperature K-Type | -200°C – 1375°C |
---|---|
Temperature K-type Resolution | 0.1°C |
Temperature K-Type Accuracy | ±(1.5°C + 2 Digits) |
Air Temperature | -30°C – 99.9°C |
Air Temperature Resolution | 0.1°C |
Air Temperature Accuracy | ±(1°C + 2 Digits) |
Relative humidity | 5- 98%RH -30-99°C |
Relative humidity Resolution | 0.1RH |
Relative Humidity Accuracy | ±(3.5% RH) |
Sound Level Range | 30dB-130dB |
Sound Level Resolution | 0.1dB |
Sound Level Accuracy | ±(3.5dB at 94dB, 1kHz sine wave) |
Lux Level Range | 20-20 000 Lux |
Lux Level Resoluton | 0.1 Lux |
Lux Level Accuracy | ±(5 + 10 Digits) |
Air Velocity Resolution m/s | 0.01 m/s |
Air Velocity Accuracy m/s | ±(3% + 0.20m/s) |
Air velocity km/h Resolution | 0.1km/h |
Air Velocity km/h Accuracy | ±(3% + 0.8km/hr.) |
Air Velocity ft/min Resolution | 1ft/min |
Air Velocity Accuracy ft/min | ±(3% + 40ft/min) |
Air Velocity Resolution mph | 0.1 mph |
Air velocity Accuracy mph | ±(3% + 0.4mph) |
Air Velocity Resolution Knots | 0.1 knots |
Air velocity Accuracy knots | ±(3% + 0.4knots) |
Air Flow Resolution CMM | 0.001 – 100 |
Air Flow Accuracy CMM | Accuracy is a function of velocity and area |
Air flow Resolution CFM | 0.001 – 100 |
Air Flow Accuracy CFM | Accuracy is a function of velocity and area |
Digital Display | Large LCD Display |
PC Interface | USB, USB to UART Bridge Controller |
Operating Conditions | 0 to 50°C |
Min Max | Yes |
Data Hold | Yes |
Back Light | Yes |
Enclosure | Over Moulded Casing |
Low battery indication | Yes |
Dimensions | 248 x 65 x 45mm |
Safety Specs | IEC61326 |
