200A AC Open Jaw TRMS Clamp Meter
R3,197.00
Features :
- 6000 count negative LCD display
- Open Jaw Sensor
- Ø16mm Cable Clamp size
- Measures DC voltage and AC voltage up to 1000V
- Capacitance to 4000μF
- Temperature measurement -40⁰C to 1000⁰C

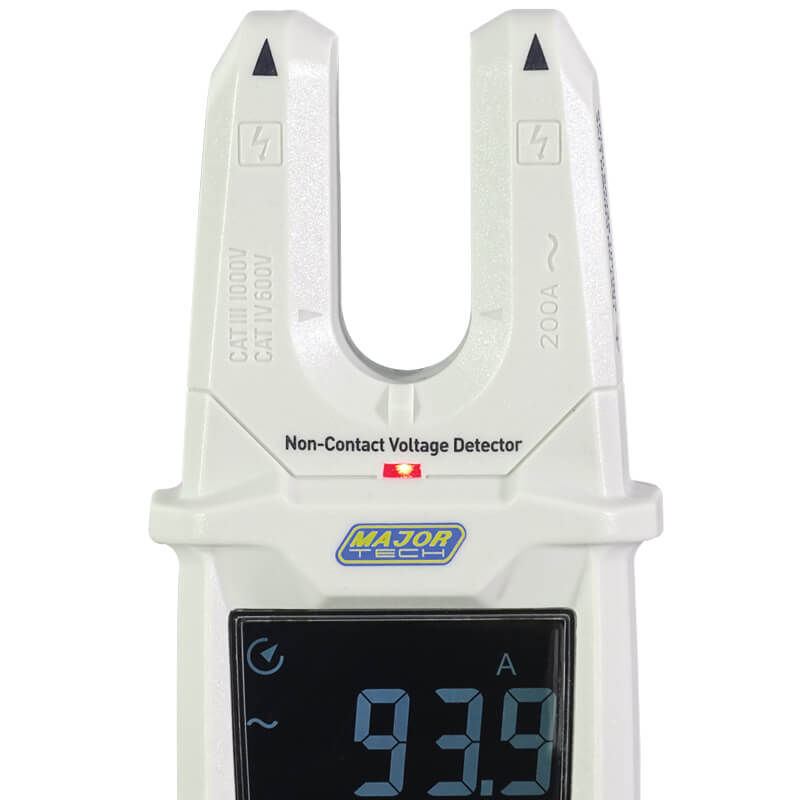

- NCV – Non-Contact Voltage Detector
- Low input impedance prevents false readings due to “Ghost” Voltage (LoZ)
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Min/Max and Data Hold function
- Auto Power Off
Description

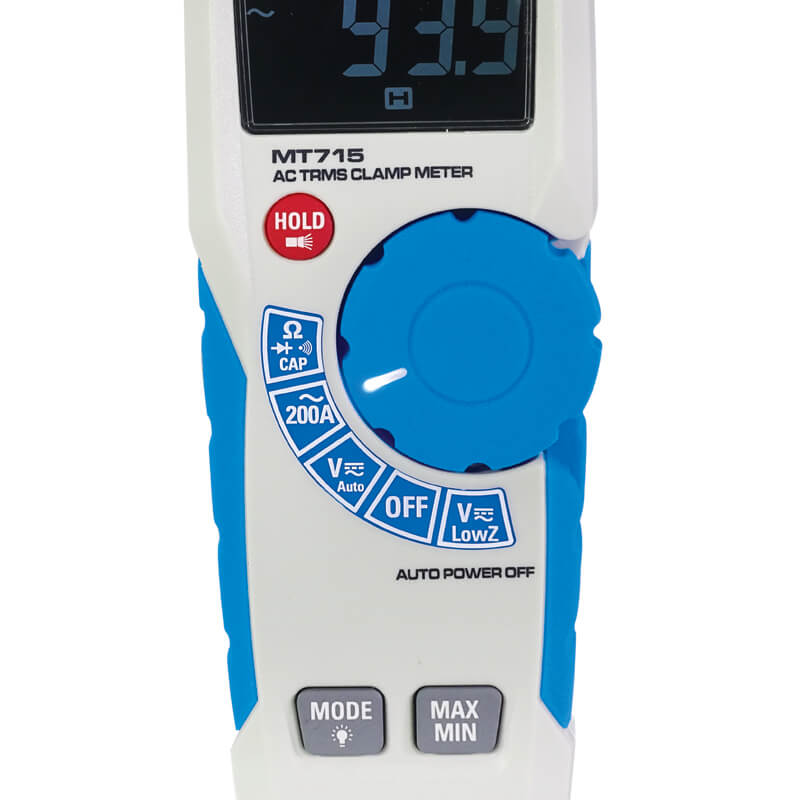

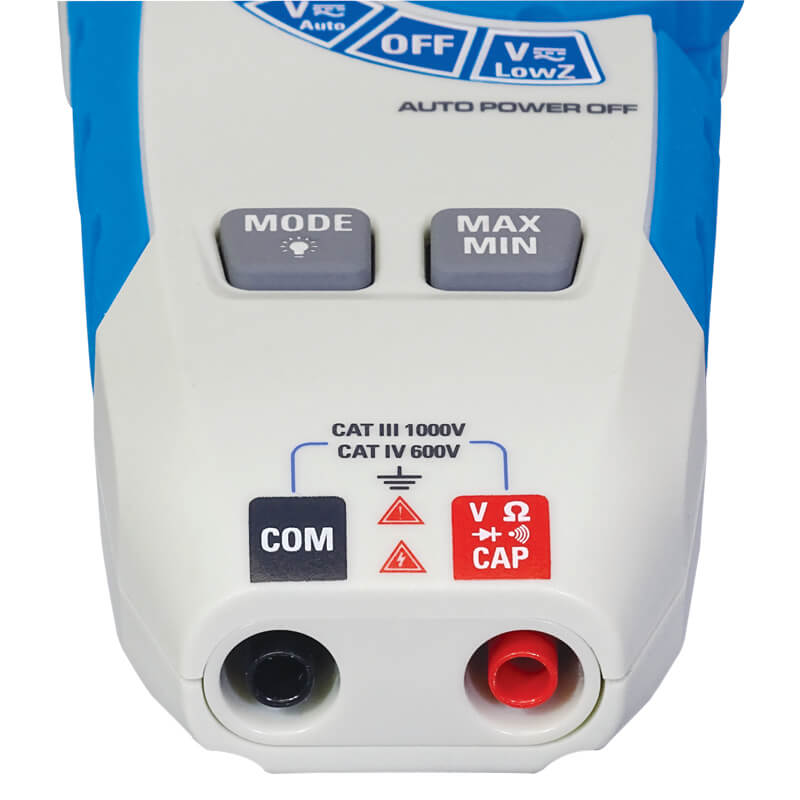

The MT715 is a 200A AC Open Jaw TRMS Clamp Meter with indication on a large backlit negative LCD display, with a clamp jaw opening of 16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings. The meter measures 1000V AC/DC, capacitance and resistance measurements, plus a Min and Max mode. The Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages, and has features of Non-Contact Voltage detection, diode test function, a continuity buzzer and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Accessories:

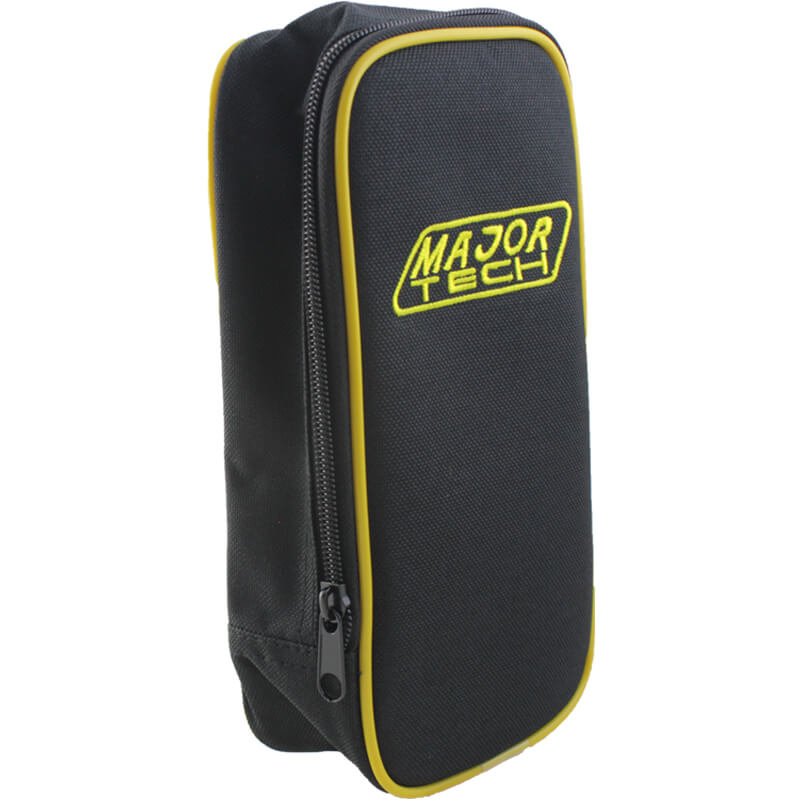

Soft Carrying Case
MT715 Test Leads

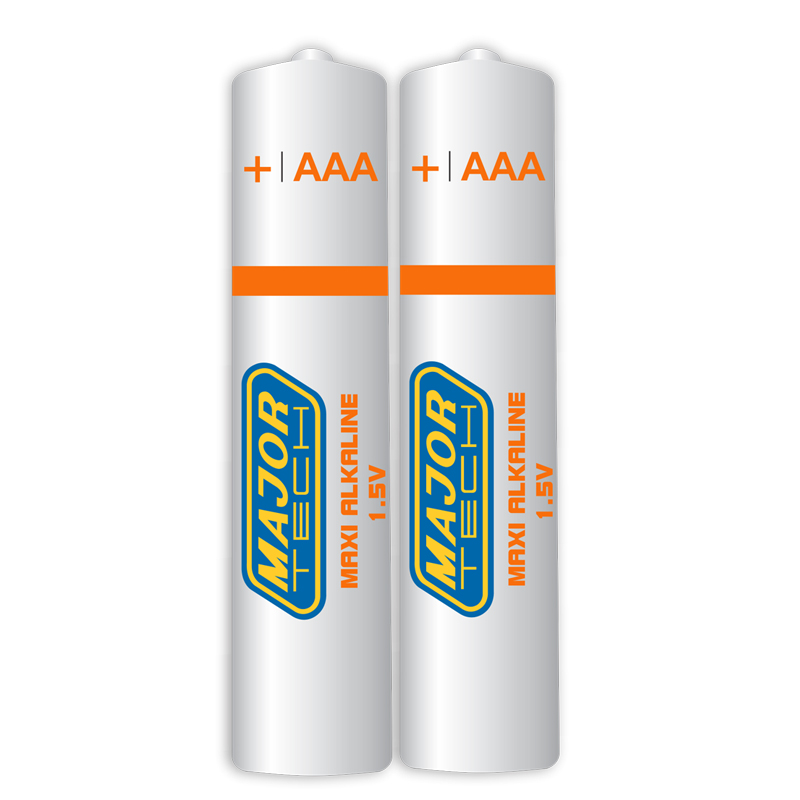

1.5V AAA Batteries
Instruction Manual
Additional information
Jaw | 16mm Open Jaw |
---|---|
AC Current | 200A |
AC current resolution | 100mA |
AC Current accuracy | ±(3.0% +5) |
DC Voltage | 1000V |
DC Voltage resolution | 1mV |
DC Voltage accuracy | ±(1.0% +2) |
AC Voltage | 1000V |
AC Voltage resolution | 1mV |
AC voltage accuracy | ±(1.2% +2) |
Resistance | 60MΩ |
Resistance resolution | 0.1Ω |
Resistance accuracy | ±(1.5% +4) |
Capacitance | 4mF |
Capacitance resolution | 0.01nF |
Capacitance accuracy | ±(3.0% +5) |
Continuity | Yes |
Diode Test | Yes |
True RMS Measurements | ACV, ACA |
AC Bandwidth | 2KHz |
Digital Display | 6000 |
Non-Contact Voltage (NCV) | Above 80V AC |
Over-range indication | Yes |
Input Impedance | ˃10MΩ DCV & ˃10MΩ VAC |
Min Max | Yes |
Data Hold | Yes |
Back Light | Yes |
Flash Light | Yes |
Enclosure | Double Injection moulding |
Low battery indication | Yes |
Power source | 2 x LR6 (AA) |
Dimensions | 230 x 44 x 66mm |
Weight | 259g |
Safety Specs | IEC61010-1 CatIV 600V |
