MS363
180° PIR Sensor (Outdoor)
R356.50
Features :

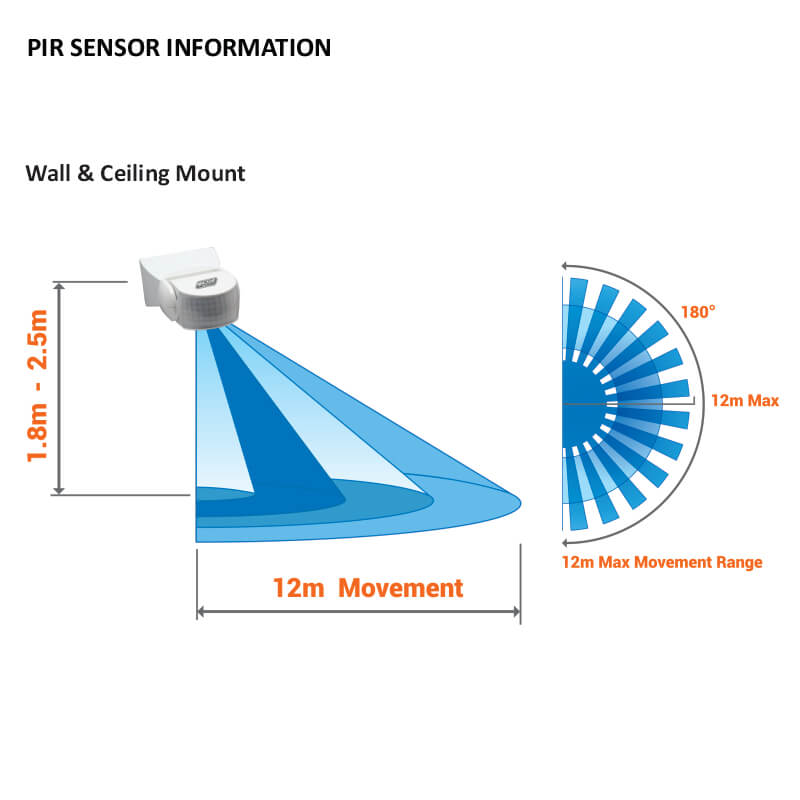

- 180° Detection Field
- Automatically turns on lights when motion and body heat is detected
- 3 – 2000 LUX (Adjustable)
- Installation height 1.8 – 2.5m
- Identify day and night automatically
- Time-delay is added continually
- Detection distance 12m (max)
- Power consumption 0.5W
- Detection moving speed 0.6 – 1.5m/s
Description
The PIR44 includes a sensitivity detector and an integrated circuit to save energy and offer practical functions. The PIR44 is designed to automatically turn lights on when motion and body heat is detected. The sensor uses the infrared energy from humans as a control-signal source; the load is activated as soon as one enters the detection field. It includes a day/night sensor to easily identify between day and night, and it is easy to install.
Application:
Major Tech PIR Sensor is ideal for homes, offices and hotels
The main applications include corridors, pathways, bathrooms and lobbies
Downloads
Additional information
| Detection Angle | 180° |
|---|---|
| Detection Range | 12m |
| Detection Type | PIR |
| Installation Height | 1.8m to 2.5m |
| No. PIR Detectors | 1 Detector |
| Protection Grade | IP65 |
| Rated Load Energy Save | 300W |
| Rated Load Incandescent | 1200W |
| Time Delay | 10sec to 7min |
| Working Voltage | AC220 – 240V |
