The MT782 is a 1500V DC Solar Clamp Meter. This clamp meter has a large 6000 count colour TFT LCD display with an analogue bargraph that provides fast sampling times and high accuracy measurements. The Solar Clamp Meter has been designed to measure 1500V DC purposely for the Solar industry, 1000V AC, K-Type temperature, frequency, capacitance, AC+DC Voltage and resistance measurements. The Low Z ACV range has a low pass filter to eliminate errors caused by “Ghost” voltages.
The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on.
This Solar Clamp Meter has a built-in record and store function and displays trend capture, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings. Added features is Non-Contact voltage detection, Peak Hold, Min/Max and Average, Data hold function and a built-in flashlight for dimly lit areas. The Solar Clamp Meter has double injection moulded housing and is IP65 waterproof. The MT782 auto powers off when the clamp meter is not in use.
Optional MT740 Flexible Coil Clamp for measurement to 3000A AC
Accessories:

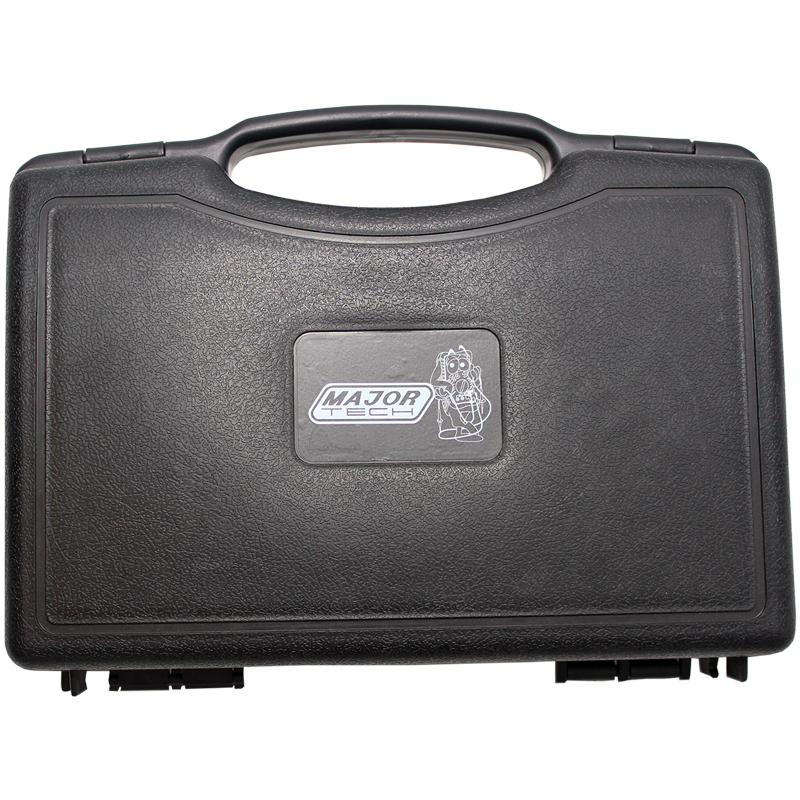

Hard Carrying Case

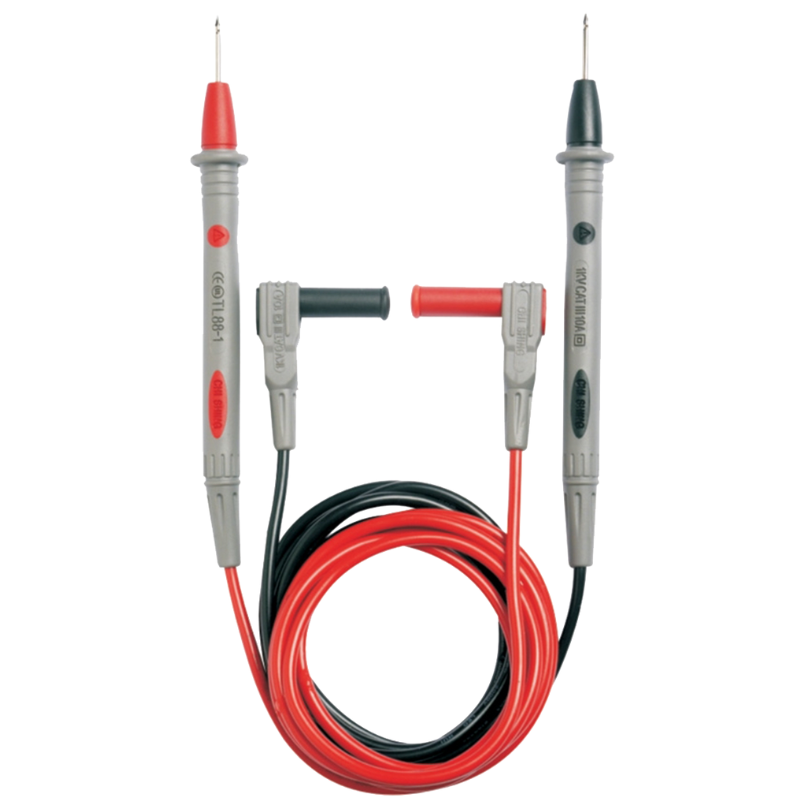

Test Leads

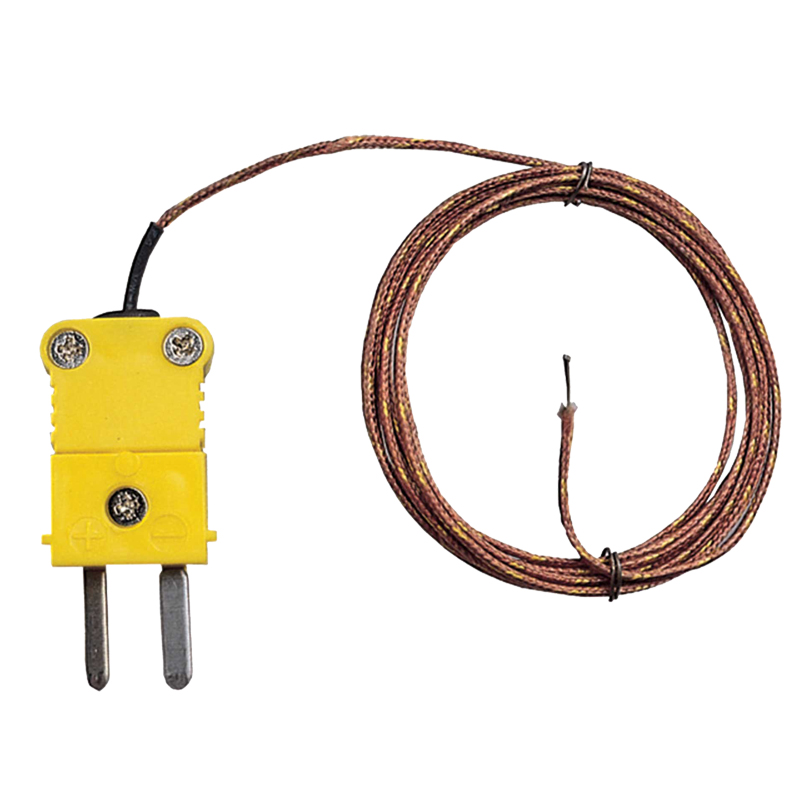

Temperature Probe

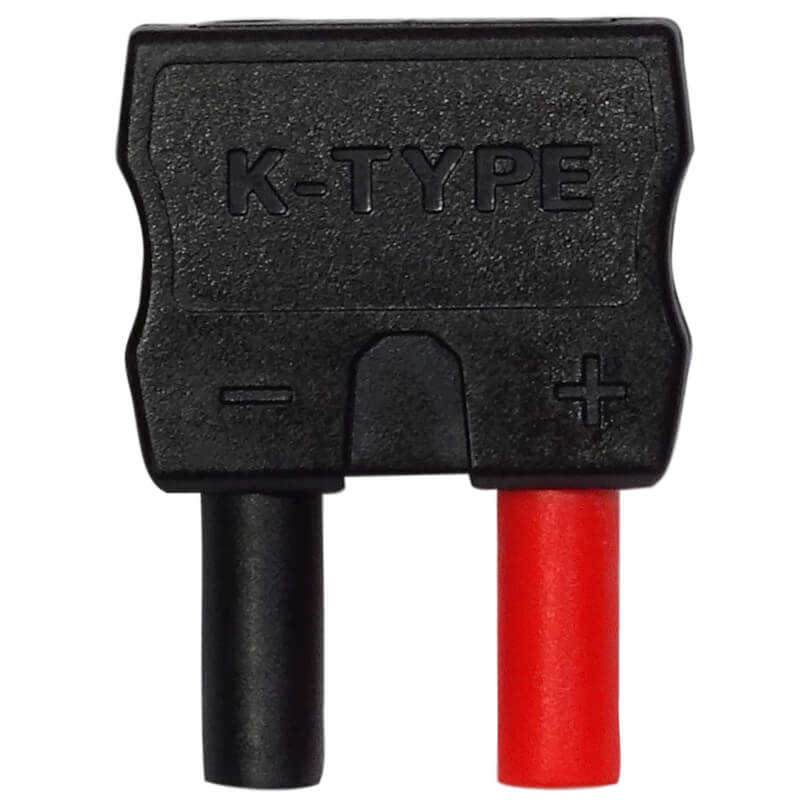

K-Type Adaptor
Instruction Manual
Rechargeable Li-ion Batteries

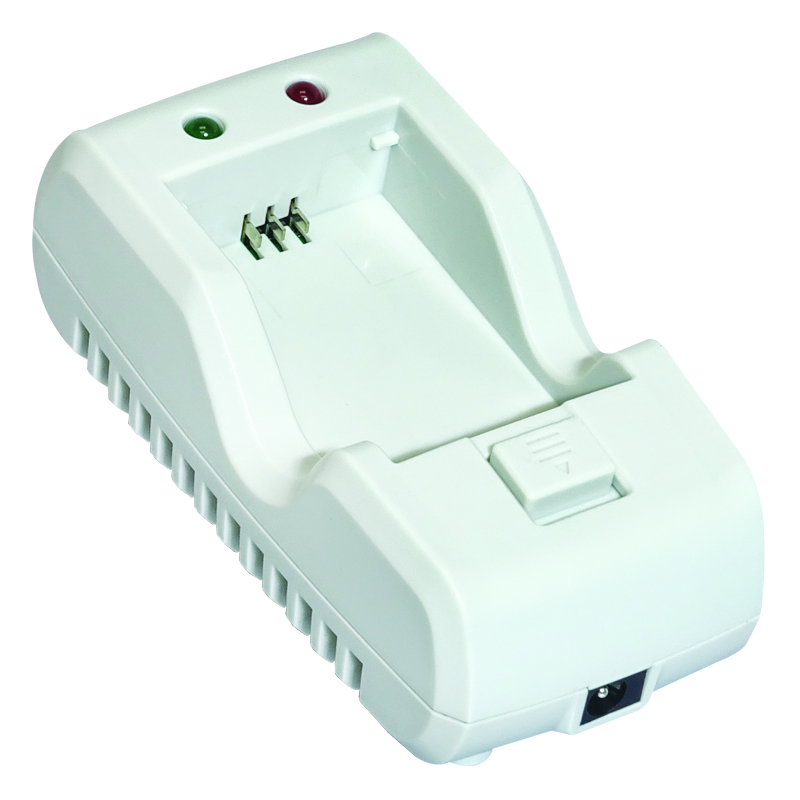

Battery Charger
