1000V AC/DC True RMS Multimeter
R8,044.25
Features :
- CAT IV 600V and CAT III 1000V
- Large 6000 count 320 x 240 TFT colour LCD display
- Logging function with Trend Capture for easy review of logged data
- AC and DC Voltage 1000V
- AC and DC TRMS Voltage 1000V
- AC and DC Current 10A
- AC and DC TRMS Voltage 1000V
- Resistance 60Mꭥ
- Frequency 10MHz
- Capacitance 6000µF
- Temperature -40 to 1350°C
- Duty Cycle 99.9%
- Graph 100 Data review
- AC True-RMS measurements
- Setup function & Saves measurements
- A/D convert fast sampling time
- Peak capture (records transients as fast as 500µs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- 4-20mA process loop measurements with % reading
Description

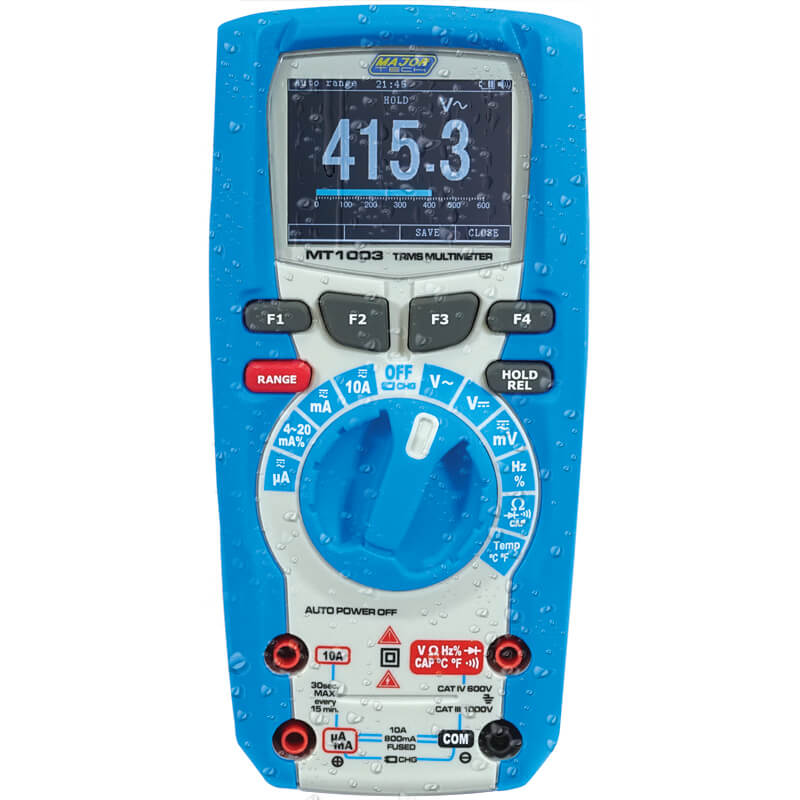

The MT1003 Heavy duty True RMS Industrial Digital Multimeter with TFT colour LCD display, provides fast A/D converting sampling time, high accuracy, built-in data logging and Trend Capture features. It can trace any interruptions of the equipment and record events automatically unattended. Using this meter, it is easy to find and solve the problems while the internal memory keeps measurements stored. This meter provides safer measurements with the double moulded rubber housing design.
Accessories :

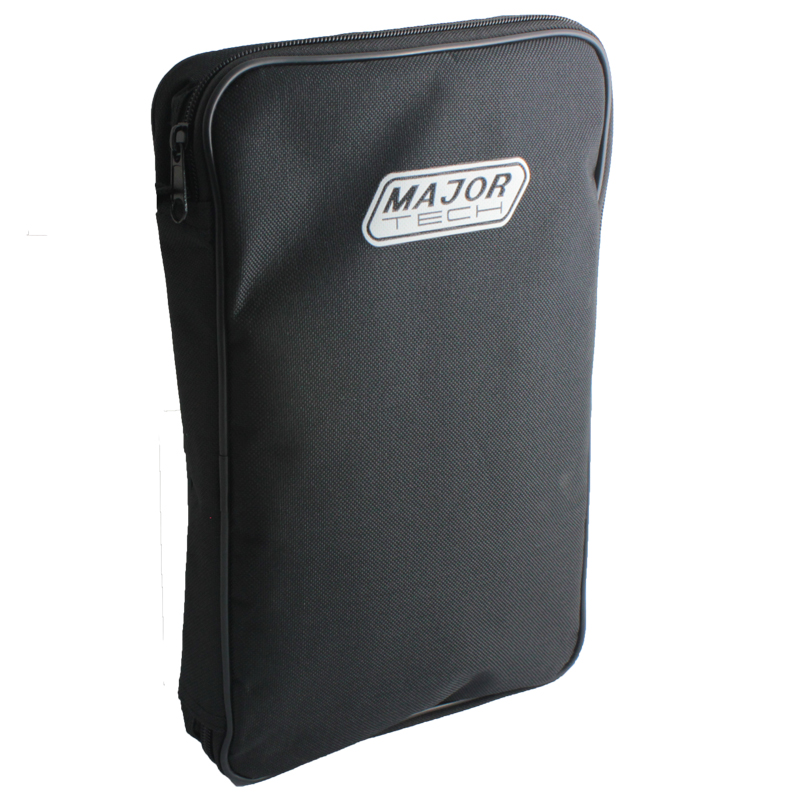

- Soft Carrying Case

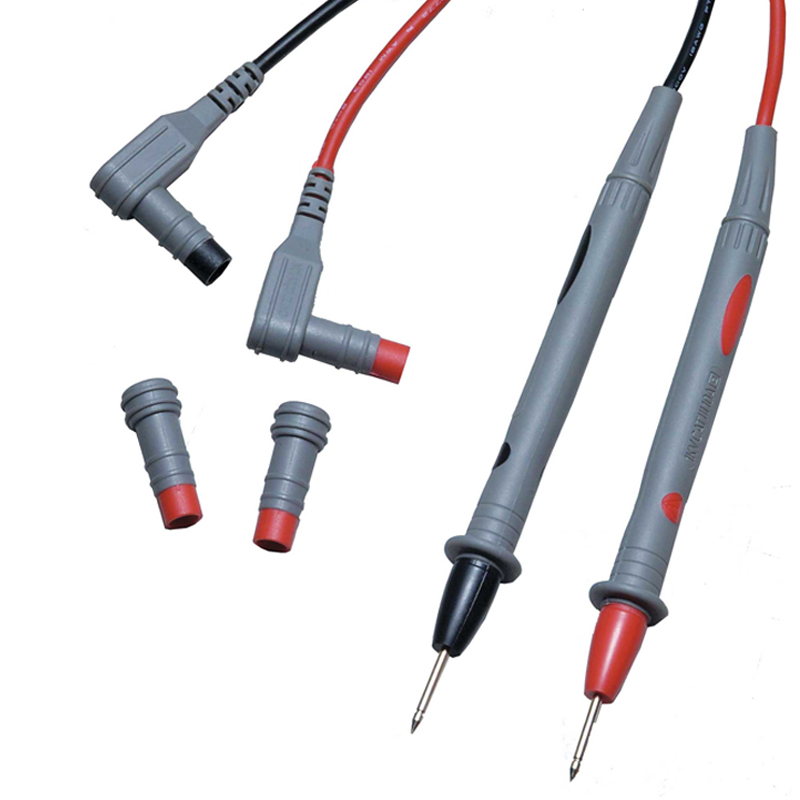

- Test Leads

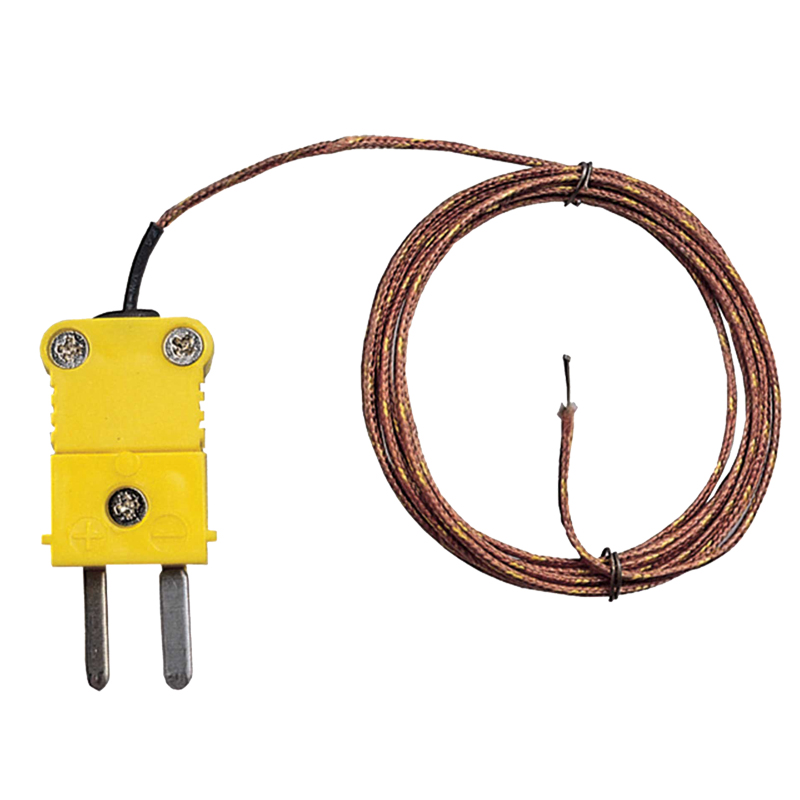

- Temperature Probe

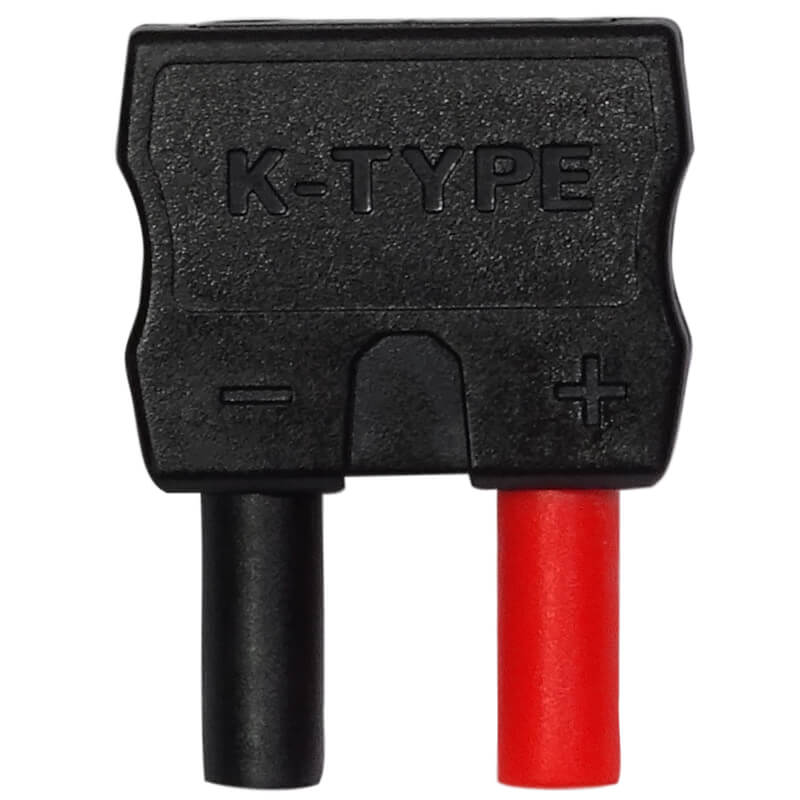

- K-Type Adaptor
- Instruction Manual
- Rechargeable Li-ion Batteries

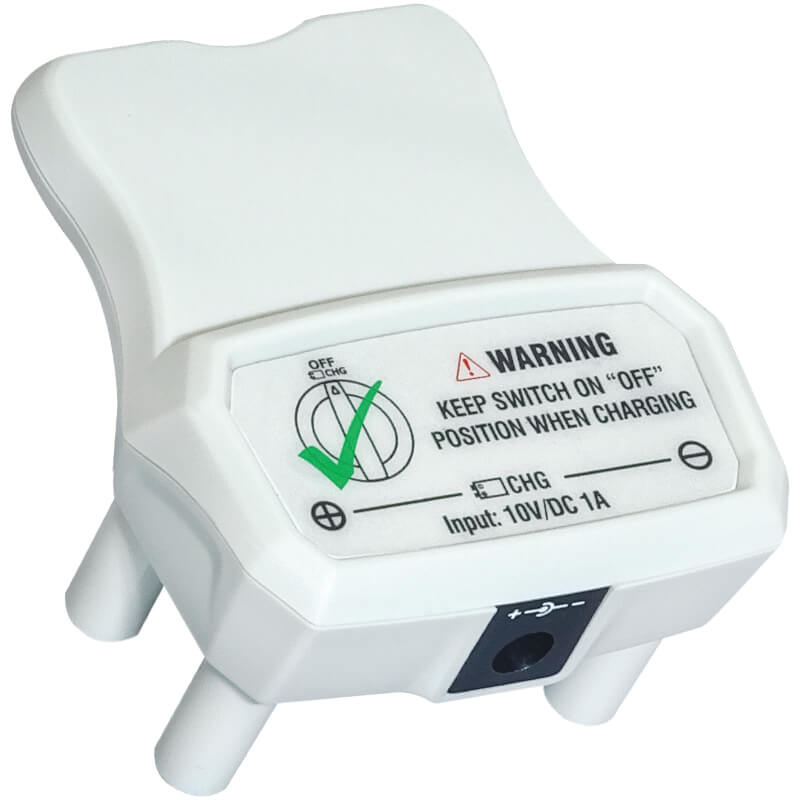

- Charger
[/vc_column_text][/vc_column][/vc_row]
Additional information
DC Voltage | 1000V |
---|---|
DC Voltage resolution | 0.1mV |
DC Voltage accuracy | ±(0.1% +5) |
AC Voltage | 1000V |
AC Voltage resolution | 0.1mV |
AC voltage accuracy | ±(0.9% +5) |
AC + DC TRMS voltage | 1000V |
AC + DC voltage resolution | 0.1mV |
AC + DC voltage accuracy | ±(3.0% +20) |
DC Current | 10A |
DC Current resolution | 0.1µA |
DC Current accuracy | ±(0.9+5) |
AC Current | 10A |
AC current resolution | 0.1µA |
AC Current accuracy | ±(1.2% + 5) |
Duty Cycle | 0.1 to 99.9% |
Duty Cycle resolution | 0.01% |
Duty Cycle accuracy | ±(1.2% +2) |
Resistance | 60MΩ |
Resistance resolution | 0.1Ω |
Resistance accuracy | ±(0.8% +5) |
Frequency | 60Hz – 1MHz |
Frequency resolution | 0.01Hz |
Frequency accuracy | ±(0.09% +5) |
4-20mA% | Yes |
Capacitance | 10mF |
Capacitance resolution | 0.01nF |
Capacitance accuracy | ±(1.5% +8) |
Temperature | -40 to 1350°C |
Temperature resolution | 0.1°C |
Temperature accuracy | ±(1.2% +3) |
Continuity | Audible signal will sound if the resistance ˂25Ω Test Current ˂0.35mA |
Diode Test | Test current 0.9mA max, open circuit voltage 3.2V DC typical |
True RMS Measurements | AC |
AC Bandwidth | 50Hz to 1000Hz |
Display | 6 000 count TFT LCD |
Bargraph | Yes |
Records events and Trends | Yes |
Data logging | Yes |
Over-range indication | Yes |
Input Impedance | ˃10MΩ VDC & ˃9MΩ VAC |
Min Max | Yes |
Peak hold | Yes |
Back Light | Yes |
Enclosure | Double moulded |
Low battery indication | Yes |
Power Supply | 7.4V rechargeable li-ion, 2300mAh |
Weight | 360g |
Dimensions | 170 x 79 x 50mm |
