MT25
1000V AC/DC IP67 True RMS Multimeter
R2,903.75
Features:
- IP67 Dust & Waterproof with O-Ring sealed casing
- NCV detection above 110V AC, LCD turns red to indicate presence of voltage
- Auto Range with Manual Override
- Measures Frequency range on Electronic and Electrical Circuits
- Capacitance to 100mF
- Measures AC and DC Voltage to 1000V
- Relative Mode
- Data Hold / Duty Cycle
- 4000 Count LCD
- Full Ranges Protection
- Auto Power Off
- Overmould rubber housing
- Integrated Test Lead Holder
- Blue backlight for dimly lit areas
Description
The MT1877 is a 1000V AC/DC IP67 Digital True RMS Multimeter, with manual override. This meter offers a great feature of measuring frequency on AC voltage and current with the range of 50Hz to 400Hz. The large LCD display with clear range annunciations and backlight ensure that readings are easy to read under all circumstances. This meter ensures that if the rotary switch is turned in any direction whilst signals less than 1000V AC/DC are input into the meter, the meter will not be damaged. It is even protected against measuring voltage if the knob is set on the ohms range accidentally. This meter is perfect for technicians in maintenance, facility maintenance, installation and production equipment maintenance.
Accessories:

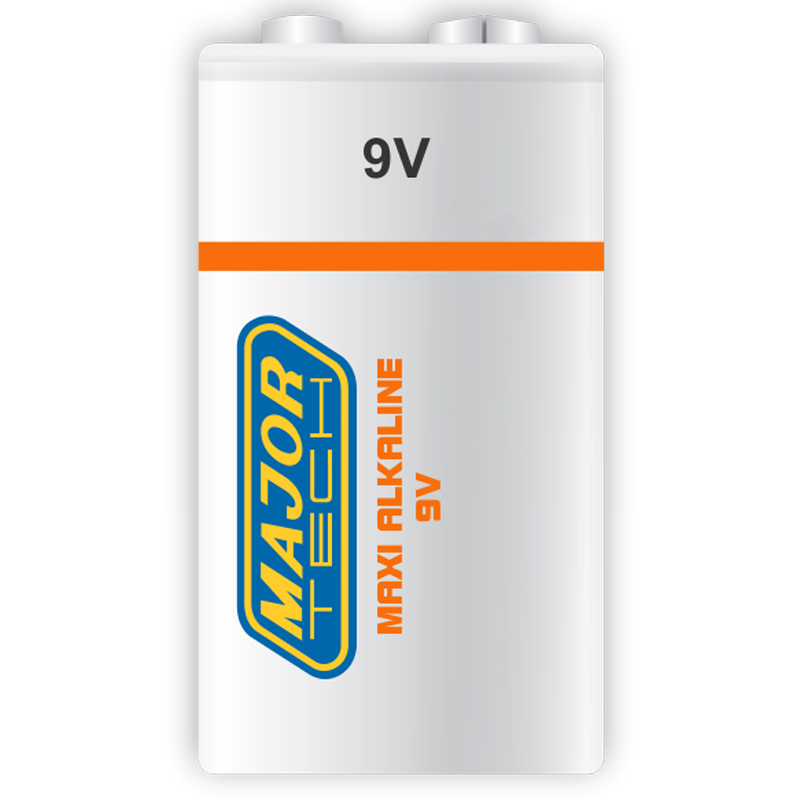

9V Battery

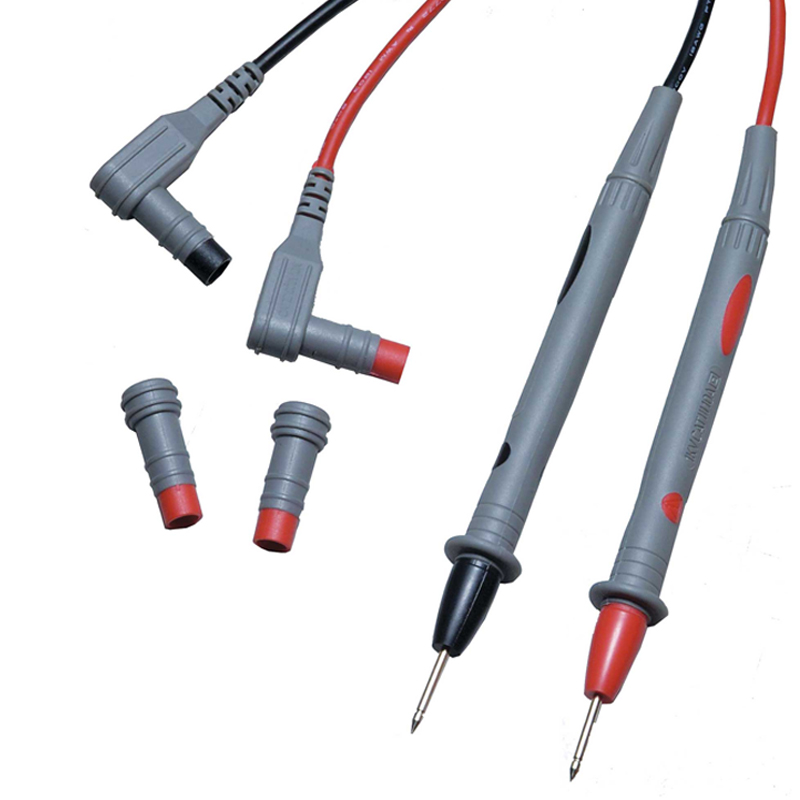

Test Leads
Instruction Manual
Additional information
| DC Voltage | 400.0mV – 1000V |
|---|---|
| DC Voltage Resolution | 1V |
| DC Voltage accuracy | 0.5% + 5 Digits |
| AC Voltage | 400mV – 1000V |
| AC Voltage resolution | 1V |
| AC voltage accuracy | ±(0.8% + 8 Digits) |
| DC Current | 400uA – 10A |
| DC Current accuracy | ±(1.0% + 3 Digits) |
| DC Current resolution | 10mA |
| AC Current | 400uA – 10A |
| AC current resolution | 10mA |
| AC Current accuracy | ±(1.5% + 3 Digits) |
| Resistance | 400.0Ω – 40.00MΩ |
| Resistance accuracy | ±(0.8% +2) |
| Resistance resolution | 10kΩ |
| Capacitance | 99.9nF – 99.99mF |
| Capacitance resolution | 0.01mF |
| Capacitance accuracy | ±(4.0% + 5 Digits) |
| Frequency | 9.999Hz – 10MHz |
| Frequency resolution | 10KHz |
| Frequency accuracy | ±(1.0% +5) |
| Duty Cycle | 0.1% – 99.9% |
| Duty Cycle resolution | 0.1% |
| Duty Cycle accuracy | ±(1.2% +2) |
| AC Response | True RMS |
| Digital Display | 4000 |
| Continuity Test | Audible signal if the resistance is approx. 50Ω or less |
| Diode Test | Test current 1mA typical, open circuit voltage 3.2V DC typical |
| Non-Contact Voltage | Detection above 110V AC, LCD display turns red |
| Input Impedance | ˃10MΩ VDC & ˃9MΩ VAC |
| Data Hold | Yes |
| Back Light | Yes |
| Enclosure | IP67 Dust & Waterproof Double Moulded |
| Power source | 9V Battery |
| Dimensions | 182 x 82 x 55mm |
| Weight | 375g |
| Safety Specs | IEC61010-1 CatIV 600V |
