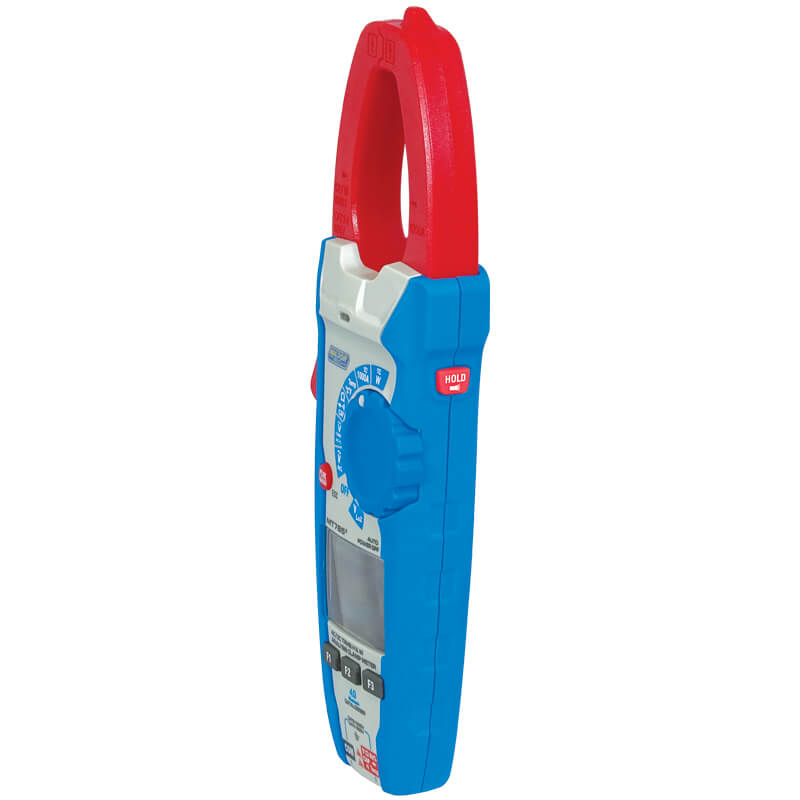

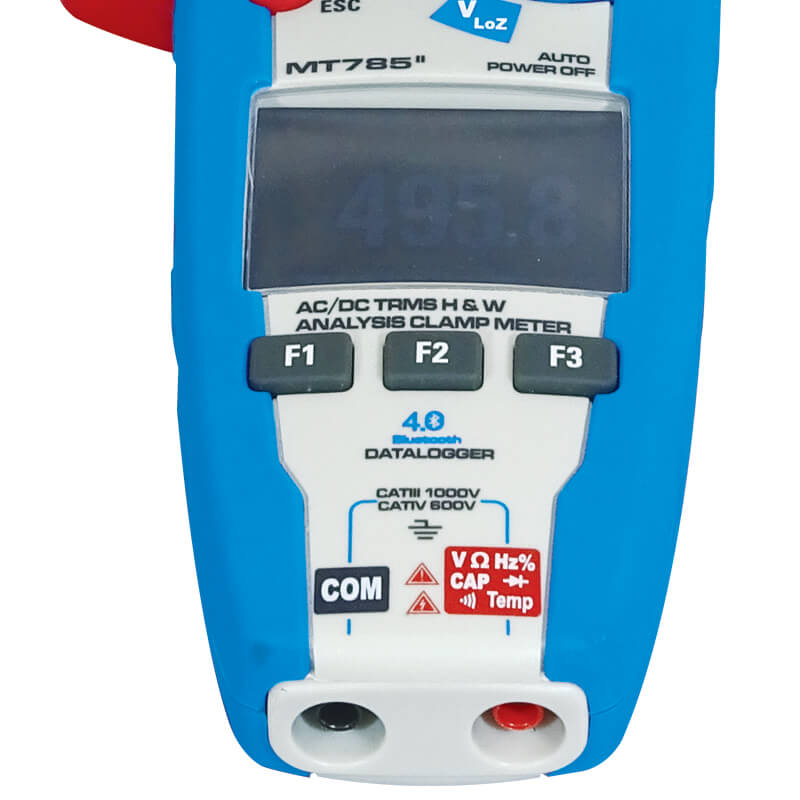

1000A AC/DC True RMS Watt Meter

The MT785 is a 1500A DC Bluetooth H & W Analysis Clamp Meter that measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display. The MT785 simultaneously measures and displays Active, Reactive and Apparent Power and Energy, and current harmonic analysis up to the 25th order with THD% calculation in a single phase. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter has been designed to measures 1500V DC purposely for the Solar industry, 1000V AC, temperature, frequency, capacitance and resistance, plus the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The meter has a built in record and store function and displays trend charts, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organize and share recordings

Accessories:

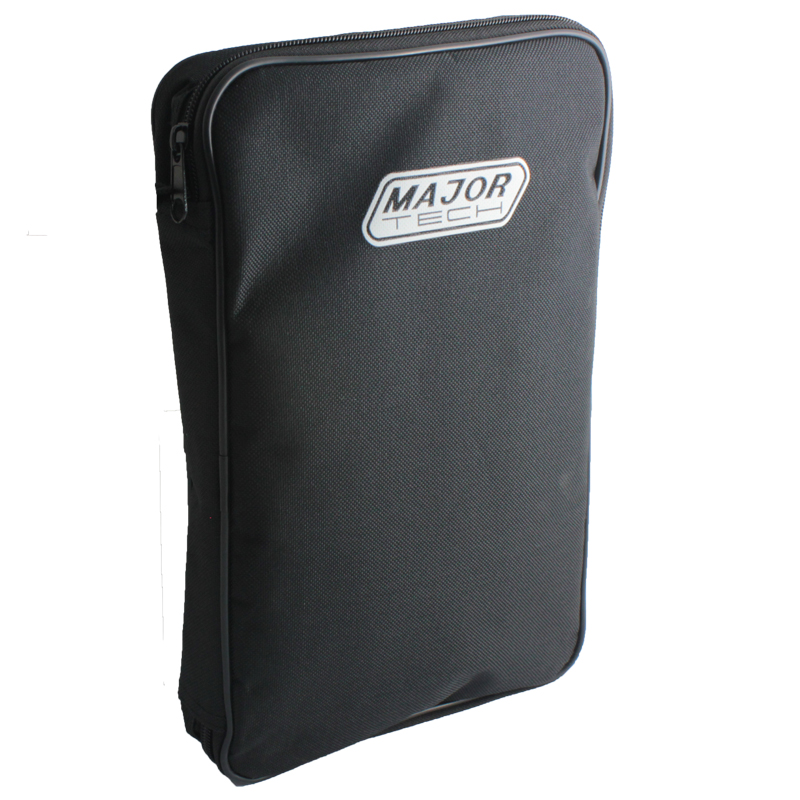

Carrying Case
9V Battery

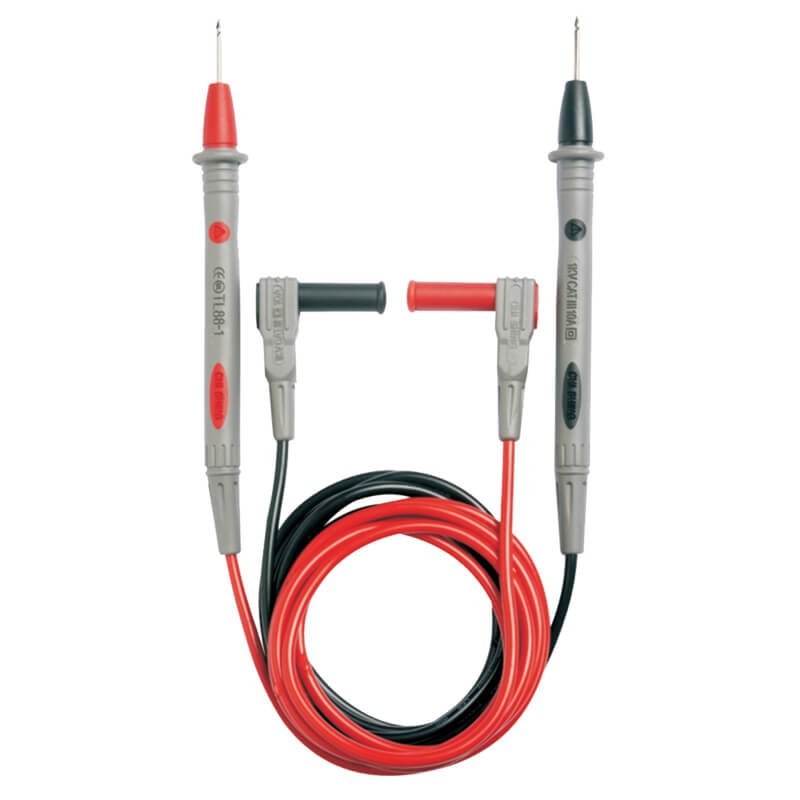

Test Leads
Instruction Manual
